Description

Price

14024

COVER,METER HOUSING

14024-1768

Unavailable

23008

SOCKET-ASSY,METER

23008-1298

$86.05

25001

METER-ASSY,KPH

25001-1740

Unavailable

25005

SPEEDOMETER,KPH

25005-1404

Unavailable

25008

BRACKET-METER

25008-1157

$78.35

25015

TACHOMETER,X1000R/MIN

25015-1281

$373.35

25023

COVER-METER CASE,UPP

25023-1163

$134.07

28011

METER,TEMP

28011-1111

$107.83

92009

SCREW,4X16,BLACK

92009-1158

$3.65

92009A

SCREW,2X6,BLACK

92009-1172

$2.61

92009B

SCREW,3X22

92009-1293

$3.91

92022

WASHER,5.2X16X1.2

25009-004

$3.65

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92069A

BULB,12V 3W,T7

92069-1020

$6.52

92075

DAMPER,METER BRACKET

92075-1581

$6.07

92077

KNOB,METER

92077-1056

$10.35

130

BOLT-FLANGED,8X12

130J0812

$0.67

311

NUT-HEX

311C0500

$0.43

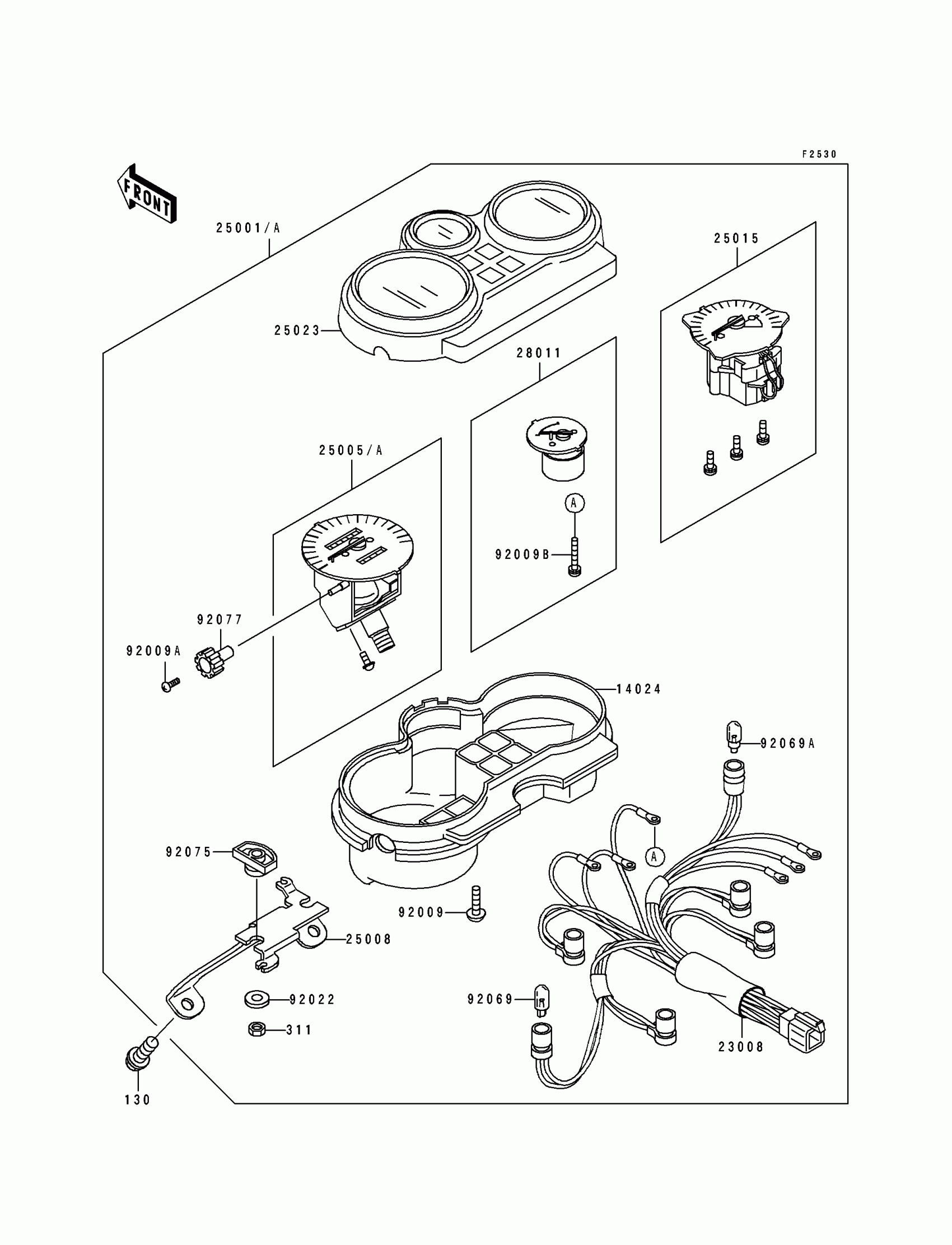

Kawasaki Tengai Meter Diagram

COVER,METER HOUSING

SOCKET-ASSY,METER

METER-ASSY,KPH

SPEEDOMETER,KPH

BRACKET-METER

TACHOMETER,X1000R/MIN

COVER-METER CASE,UPP

METER,TEMP

SCREW,4X16,BLACK

SCREW,2X6,BLACK

SCREW,3X22

WASHER,5.2X16X1.2

BULB,12V 3.4W,T10

BULB,12V 3W,T7

DAMPER,METER BRACKET

KNOB,METER

BOLT-FLANGED,8X12

NUT-HEX
