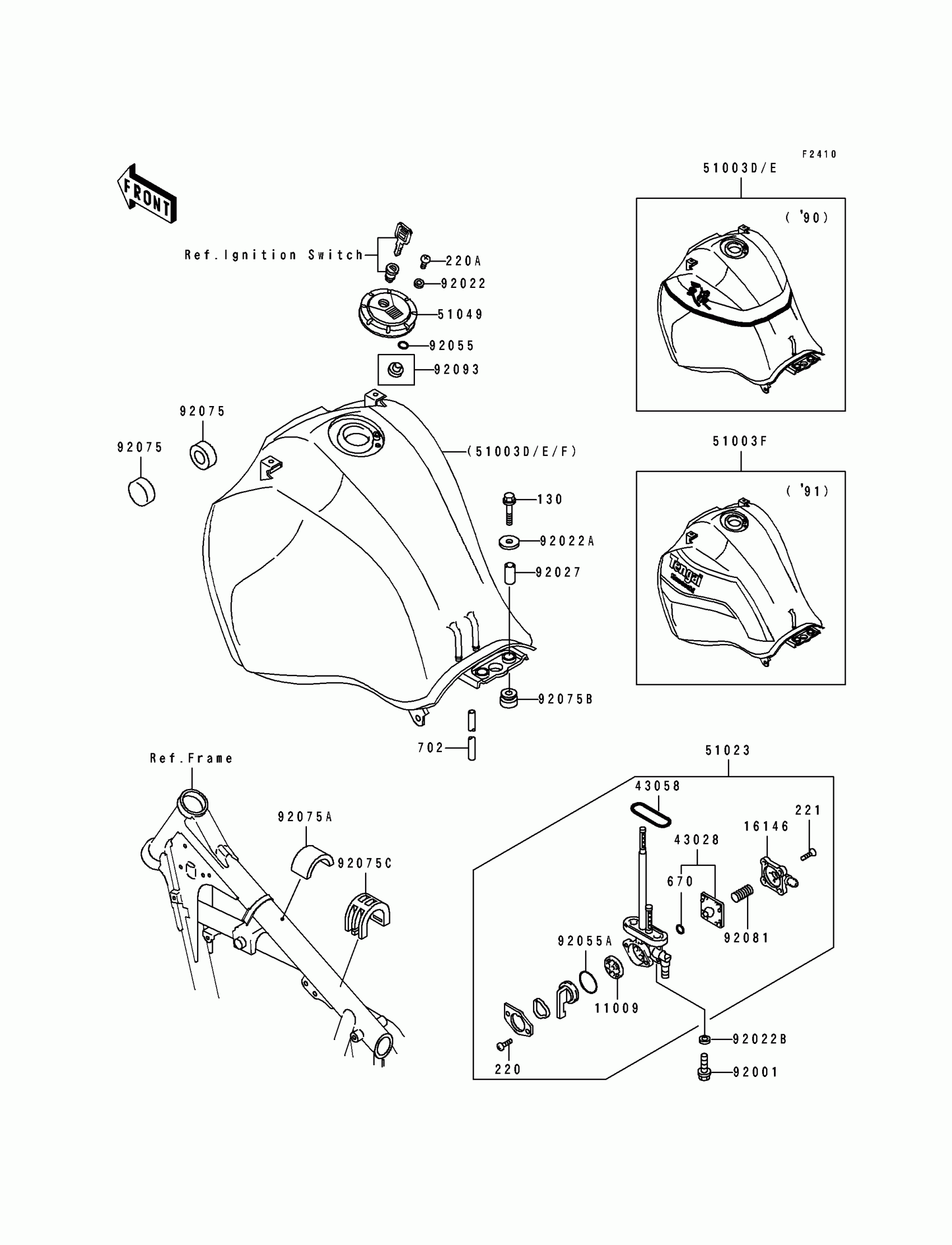

Kawasaki Tengai Fuel Tank Diagram
#
Description
Price
11009
GASKET,TAP VALVE
11009-1188
$5.74
16146
COVER-ASSY,TAP DIAPHRAGM
16146-1010
$25.31
43028
DIAPHRAGM
43028-1033
$22.90
43058
RING,TAP FLANGED
51039-003
$6.27
51003F
TANK-COMP-FUEL,BLUE/WHITE
51003-5122-GL
Unavailable
51023
TAP-ASSY,FUEL
51023-1148
$120.50
51049
CAP-TANK,FUEL
51049-1077
$108.49
92001
BOLT,6X20
92001-1091
$3.92
92022
WASHER,5.3X10X0.8
92022-1038
$3.65
92022A
WASHER,6.5X20X1.6
92022-125
$1.40
92022B
WASHER-PLAIN
92022-183
$3.92
92027
COLLAR,6.8X10X20
92027-1856
$6.27
92055
RING-O
92055-1023
$3.92
92055A
RING-O,TAP LEVER
92055-1085
$5.05
92075
DAMPER,FUEL TANK
92075-101
$6.22
92075A
DAMPER
92075-1507
$10.28
92075B
DAMPER
92075-1660
$8.10
92075C
DAMPER,FUEL TANK
92075-1862
Unavailable
92081
SPRING,TAP DIAPHRAGM
92081-1240
$3.89
130
BOLT-FLANGED
130C0630
Unavailable
220
SCREW-PAN-CROS,3X8
220B0308
$0.59
220A
SCREW-PAN-CROS,5X10
220D0510
Unavailable
221
SCREW-CSK-CROS,4X14
221B0414
$3.41
670
O RING,4MM
670B1504
$4.11
702
TUBE-RUBBER,5X8X620
702A05620
$29.14
