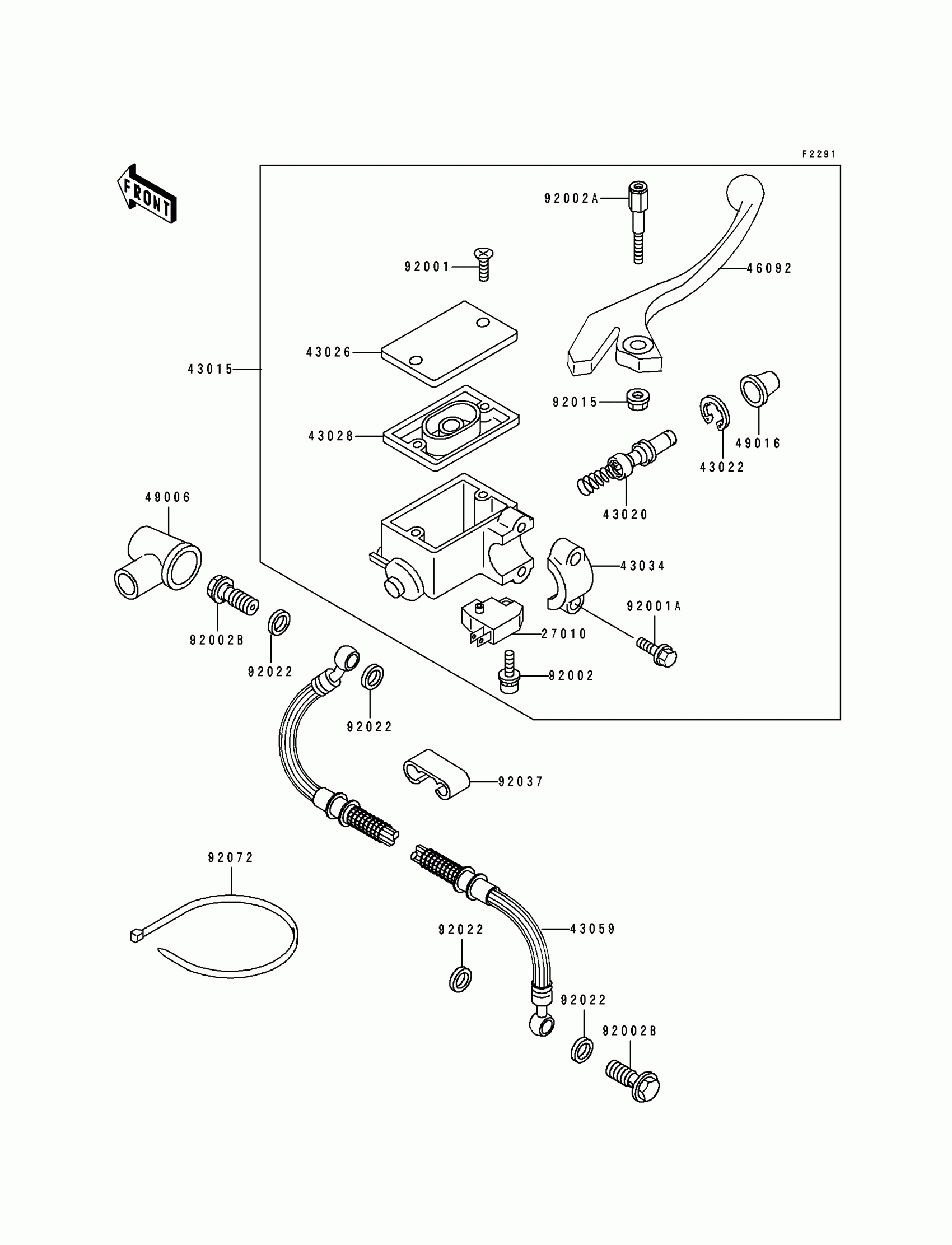

Kawasaki Tengai Front Master Cylinder Diagram

Description

Price

27010

SWITCH,BRAKE

27010-1170

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-1413

$235.69

43020

PISTON-COMP-BRAKE,FR

43020-1056

$65.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1022

$51.90

43028

DIAPHRAGM

43028-1061

$16.18

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$19.45

43059

HOSE-BRAKE,FR

43059-1477

$86.28

46092

LEVER-GRIP,FRONT BRAKE

46092-1135

$23.84

49006

BOOT,DUST

49006-1040

$11.49

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92001

SCREW,5MM,BLACK

92001-1727

$4.11

92001A

BOLT,6X25,BLACK

92001-1729

$5.52

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92002A

BOLT,LEVER SET

92002-1879

$20.04

92002B

BOLT,OIL,L=23

92002-1888

$5.48

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92037

CLAMP,BRAKE HOSE

92037-1529

$12.05

92072

BAND,L=365

92072-1197

$7.84
