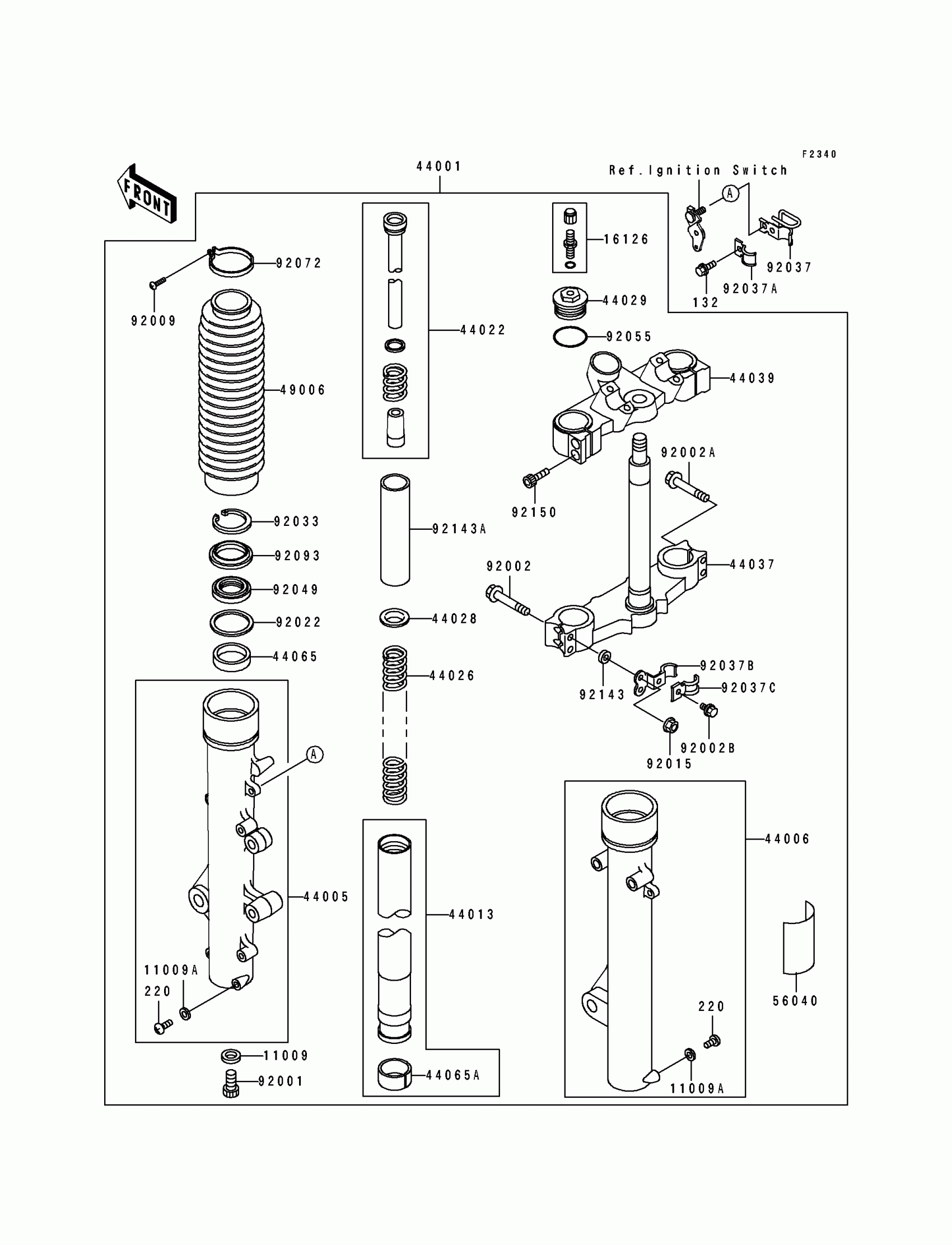

Kawasaki Tengai Front Fork Diagram
#
11009
GASKET,FORK CYLINDER BOLT
11009-1127
$5.18
11009A
GASKET,FORK DRAIN PLUG
44045-002
$5.18
16126
VALVE,AIR
16126-1052
$35.06
44001
FORK-FRONT,BLUE
44001-1717-BC
$1,951.38
44005
PIPE-LEFT FORK OUTER
44005-1293
$392.58
44006
PIPE-RIGHT FORK OUTER
44006-1290
$392.58
44013
PIPE-FORK INNER
44013-1296
$393.10
44022
CYLINDER-FORK
44022-1241
$165.48
44026
SPRING-FRONT FORK
44026-1433
$63.87
44028
GUIDE-FORK SPRING
44028-1004
$11.28
44029
SEAT-FORK SPRING
44029-1042
$72.14
44037
HOLDER-FORK UNDER
44037-1251
$345.31
44039
HOLDER-FORK UPPER
44039-1188
$242.30
44065
BUSHING-FRONT FORK,OUTER TUBE
44065-1091
$25.96
44065A
BUSHING-FRONT FORK,INNER PIPE
44065-1092
$26.65
49006
BOOT,FORK,BLUE
49006-1222-BC
$94.27
56040
LABEL-WARNING,FRONT FORK
56040-1120
$6.10
92001
BOLT,FORK CYLINDER
92001-1309
$7.62
92002
BOLT,FLANGED,8X55
92002-1158
$9.23
92002A
BOLT,FLANGED,8X50
92002-1848
Unavailable
92002B
BOLT
92002-1982
$5.18
92009
SCREW,4X16
92009-1348
$5.18
92015
NUT,FLANGED,8MM
92015-1408
$5.38
92022
WASHER,FORK OUTER PIPE
92022-1262
$8.60
92033
RING-SNAP,FORK
92033-1047
$6.46
92037
CLAMP,HOSE
92037-1897
$15.89
92037A
CLAMP,HOSE
92037-1898
$8.58
92037B
CLAMP
92037-1913
$20.72
92037C
CLAMP
92037-1931
$10.42
92049
SEAL-OIL,FRONT FORK
92049-1180
$22.14
92055
RING-O,FORK TOP CAP
92055-1050
$6.27
92072
BAND,BOOT
92072-1171
Unavailable
92093
SEAL,FRONT FORK
92093-1166
$18.22
92143
COLLAR
92143-1134
$12.78
92143A
COLLAR,FORK,L=150
92143-1337
$21.37
92150
BOLT,SOCKET,8X30
92150-1307
$3.86
132
BOLT-FLANGED-SMALL,6X12
132J0612
$1.92
220
SCREW-PAN-CROS,4X8
220E0408
$3.30
