Description

Price

14024

COVER,FRONT DISC,BLUE 24

14024-1739-BV

Unavailable

41080

DISC,FR

41080-1237

$404.25

43020

PISTON-COMP-BRAKE

43020-1068

$72.80

43020A

PISTON-COMP-BRAKE

43020-1069

$72.80

43041A

CALIPER-ASSY,FR,LH,BLACK

43041-1376-DJ

$602.49

43044

HOLDER-COMP-CALIPER

43044-1067

$158.69

43049

PACKING,PISTON SEAL

43049-1054

$12.42

43049A

PACKING,PISTON

43049-1055

$11.29

43049B

PACKING,PISTON SEAL

43049-1056

$13.10

43049C

PACKING,PISTON

43049-1057

$12.65

43056A

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1095

$54.88

49006

BOOT,CALIPER

49006-1094

$12.23

49006A

BOOT,CALIPER

49006-1095

$7.27

92002

BOLT,FLANGED,10X41

92002-1468

$8.86

92002A

BOLT,DISC PLATE,8MM

92002-1878

$4.69

92081

SPRING,PAD STOPPER

92081-1661

$11.80

92143

COLLAR

92143-1331

$3.94

92144

SPRING,PAD

92144-1070

$29.85

92150

BOLT,FLANGED,6X12

92150-1235

$5.47

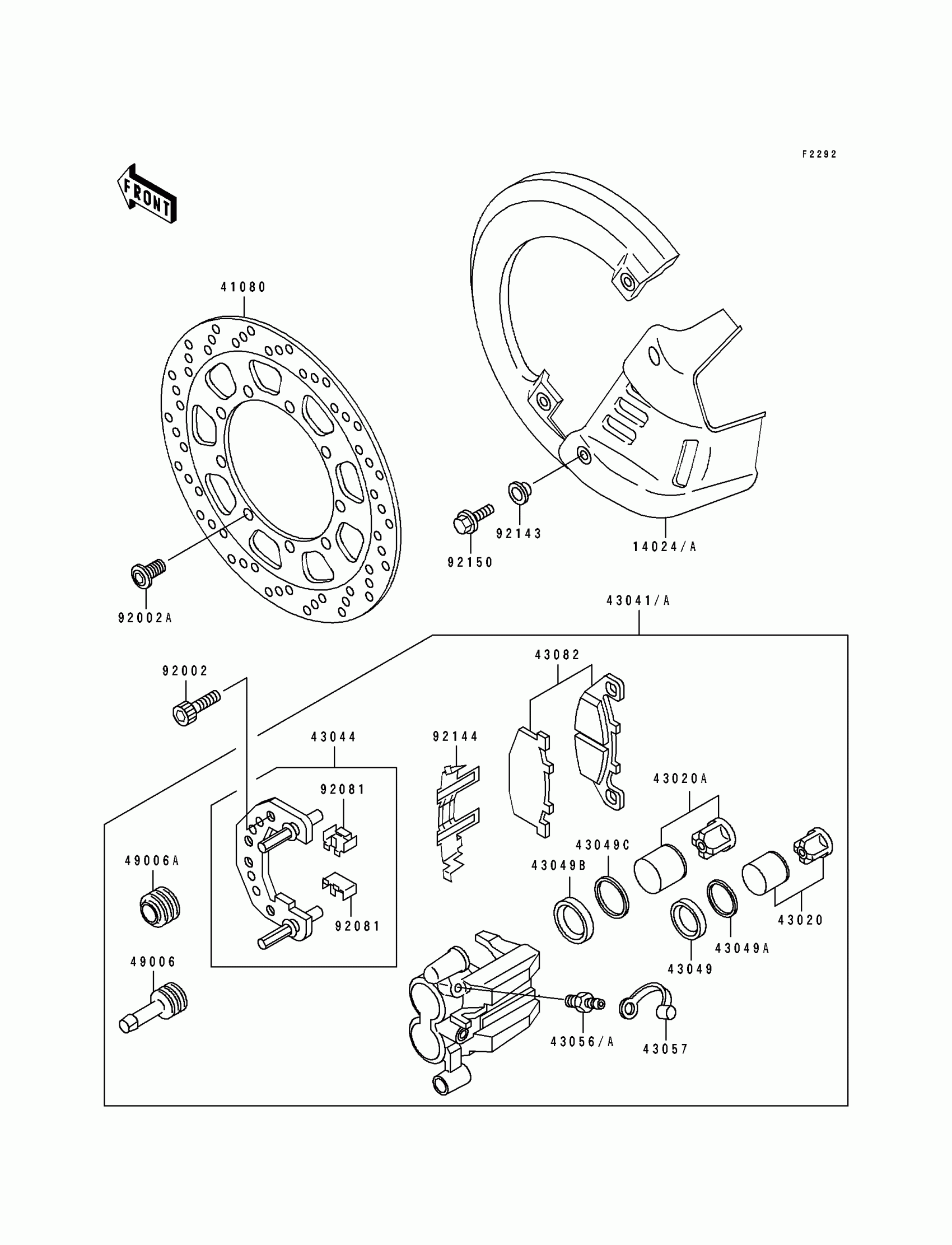

Kawasaki Tengai Front Caliper Diagram

COVER,FRONT DISC,BLUE 24

DISC,FR

PISTON-COMP-BRAKE

PISTON-COMP-BRAKE

CALIPER-ASSY,FR,LH,BLACK

HOLDER-COMP-CALIPER

PACKING,PISTON SEAL

PACKING,PISTON

PACKING,PISTON SEAL

PACKING,PISTON

BREATHER-BRAKE

CAP-BREATHER

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

BOLT,FLANGED,10X41

BOLT,DISC PLATE,8MM

SPRING,PAD STOPPER

COLLAR

SPRING,PAD

BOLT,FLANGED,6X12
