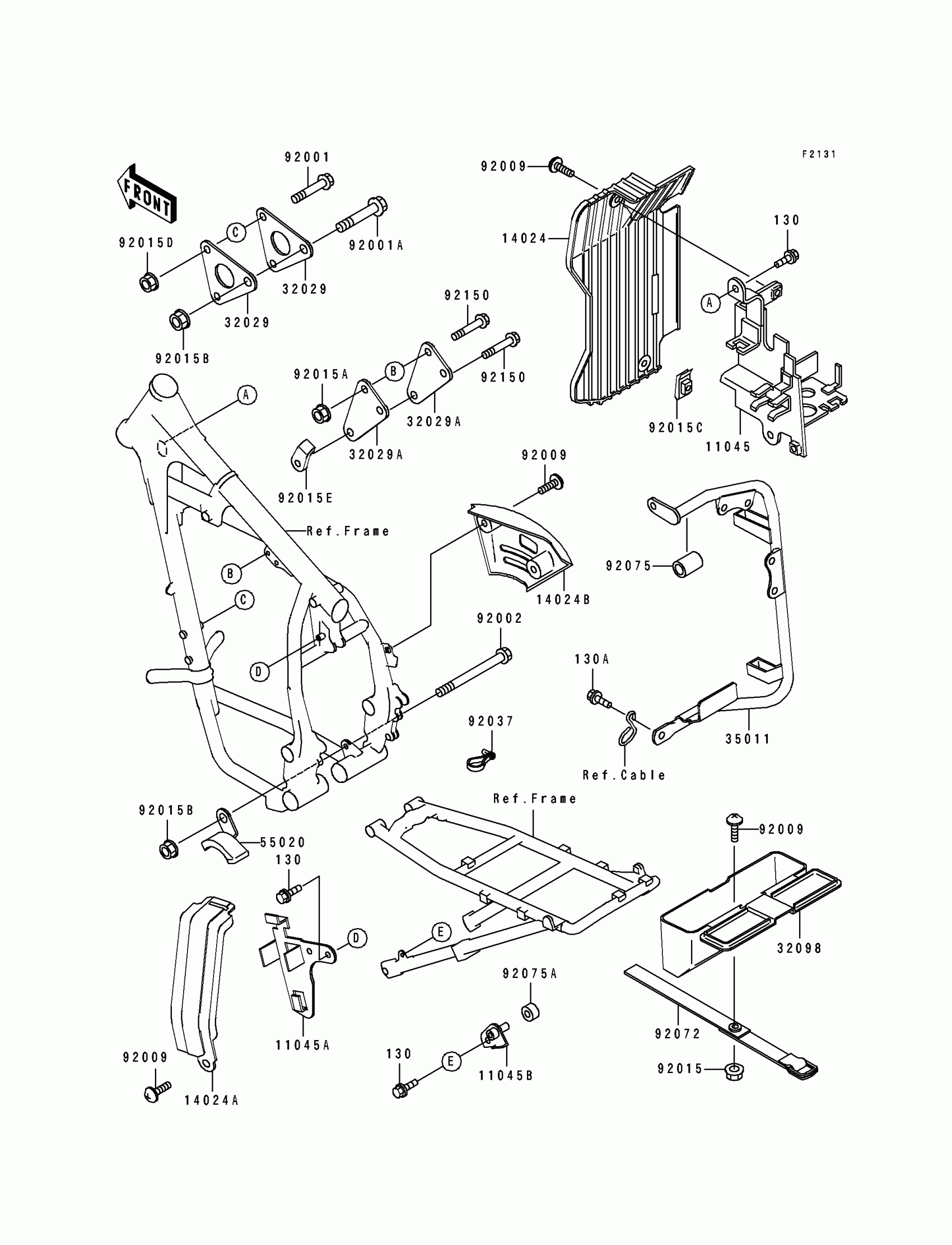

Kawasaki Tengai Frame Fitting Diagram
#
Description
Price
11045
BRACKET,ELECTRIC,RH
11045-1358
$63.61
11045A
BRACKET,ELECTRIC,LH
11045-1359
$17.10
11045B
BRACKET
11045-1360
Unavailable
14024
COVER,FRONT RESERVOIR
14024-1372
$68.94
14024A
COVER,SIDE STAND SWITCH
14024-1373
$37.86
14024B
COVER,RESERVOIR TANK
14024-1470
$13.57
32029
BRACKET-ENGINE,FR
32029-1516
$13.08
32029A
BRACKET-ENGINE
32029-1685
$16.60
32098
CASE-TOOL,P.WHITE
32098-1074-6F
$52.41
35011
STAY,HORN&RESERVOIR TANK
35011-1475
$73.36
55020
GUARD,CHAIN
55020-1266
$41.66
92001
BOLT,FLANGED,8X70
92001-1583
$9.57
92001A
BOLT,10X75
92001-4021
$8.86
92002
BOLT,10X145
92002-1348
$18.57
92009
SCREW,6X14
92009-1288
$3.92
92015
NUT,FLANGED,6MM,BLACK
92015-1237
$5.52
92015A
NUT,FLANGED,8MM
92015-1406
$4.45
92015B
NUT,FLANGED,10MM
92015-1415
$4.69
92015C
NUT,6MM
92015-1602
$7.34
92015D
NUT,FLANGED,LOCK,8MM
92015-1668
$4.69
92015E
NUT,PLATE,8MM
92015-1673
$9.14
92037
CLAMP,SPEED,L=80.5
92037-1903
$7.84
92072
BAND,TOOL CASE
92072-1219
$21.99
92075
DAMPER
92075-1941
$6.52
92075A
DAMPER
92075-243
Unavailable
92150
BOLT,FLANGED,8X42
92150-1415
$3.35
130
BOLT
130B0612
$0.67
130A
BOLT-FLANGED,6X14,BLACK
130J0614
$2.33
