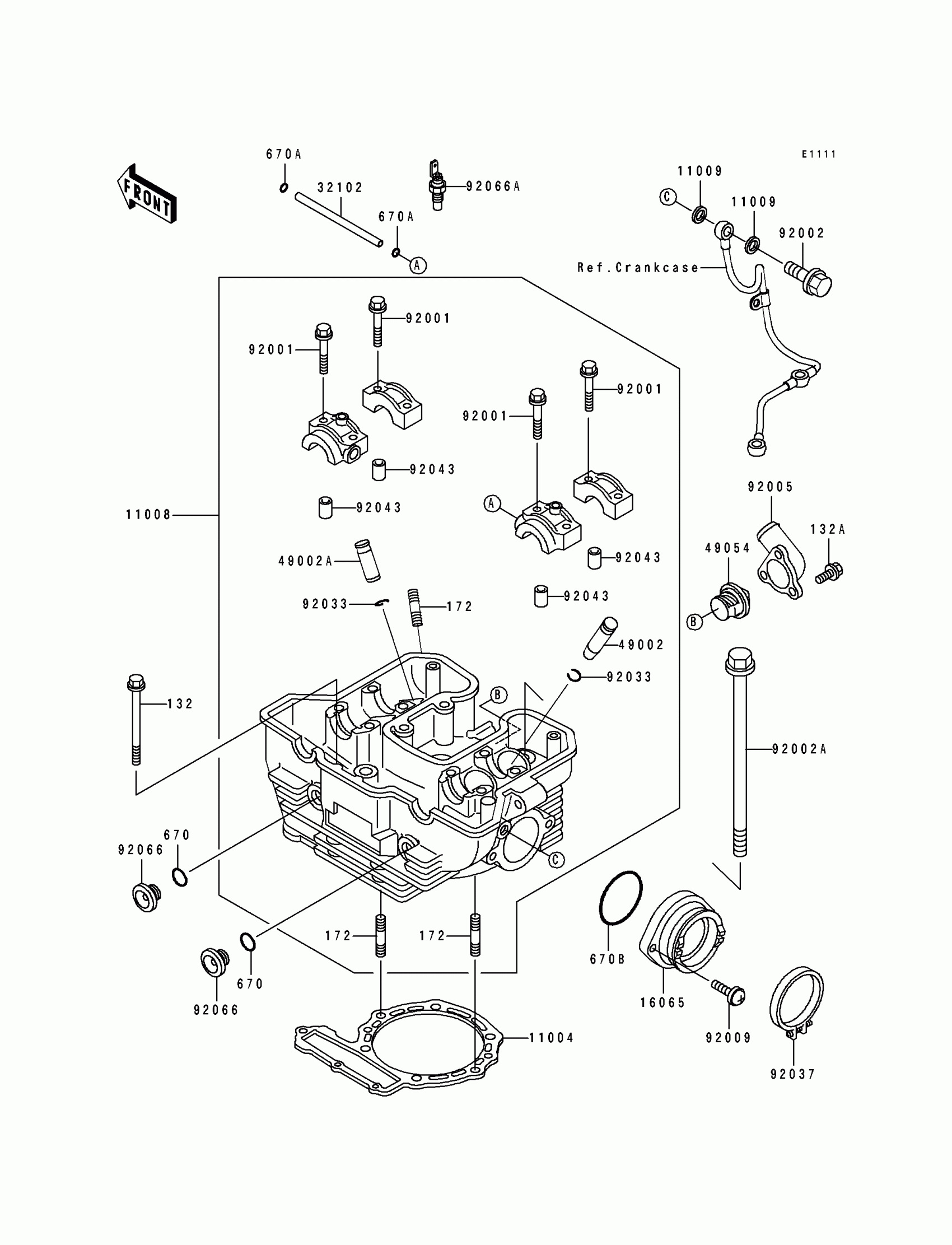

Kawasaki Tengai Cylinder Head Diagram
#
Description
Price
11004
GASKET-HEAD
11004-1158
$57.90
11008
HEAD-COMP-CYLINDER
11008-1218
Unavailable
11009
GASKET,10X14.5X1.5
11009-1105
$6.51
16065
HOLDER-CARBURETOR
16065-1151
$34.51
32102
PIPE,OIL LINE
32102-1352
$4.32
49002
GUIDE-VALVE,INTAKE
12013-009
Unavailable
49002A
GUIDE-VALVE,EXHAUST
49002-1002
Unavailable
49054
THERMOSTAT
49054-1053
$54.56
92001
BOLT,FLANGED,6X38
92001-1105
$4.69
92002
BOLT,BANJO,10X25
92002-1170
$9.51
92002A
BOLT,10X191
92002-1874
$21.97
92005
FITTING
92005-1121
$36.12
92009
SCREW,6X20
92009-1325
$3.96
92033
RING-SNAP,VALVE GUIDE
92036-023
$0.48
92037
CLAMP,55MM
92037-1486
$8.66
92043
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92066
PLUG
92066-1158
$6.63
92066A
PLUG,SENSOR WATER
92066-1183
$66.41
132
BOLT-FLANGED-SMALL,6X85
132H0685
$3.05
132A
BOLT-FLANGED-SMALL,6X12
132J0612
$1.92
172
BOLT-STUD,8X22
172G0822
$2.12
670
O RING,15MM
670B2015
$1.42
670A
O RING,6MM
670D1506
$1.66
670B
O RING,48MM
670D3048
$7.34
