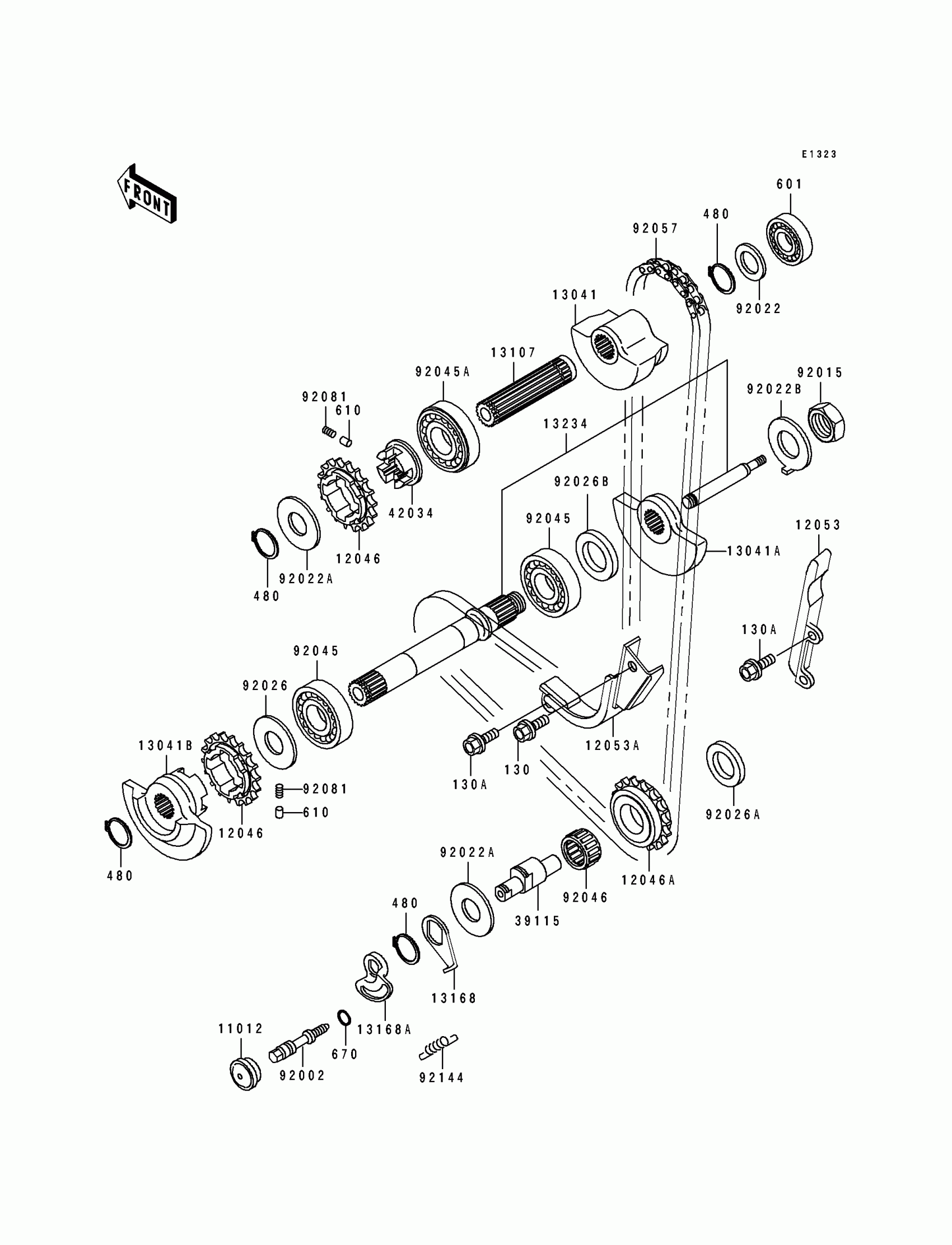

Kawasaki Tengai Balancer Diagram
#
Description
Price
11012
CAP
11012-1369
$5.46
12046
SPROCKET,BALANCER,18T
12046-1053
Unavailable
12046A
SPROCKET-IDLER,18T
12046-1114
Unavailable
12053
GUIDE-CHAIN,RR
12053-1111
$39.83
12053A
GUIDE-CHAIN,FR
12053-1175
$59.07
13041
BALANCER,RR
13041-1053
$141.39
13041A
BALANCER,FR,RH
13041-1060
$110.85
13041B
BALANCER,FR,LH
13041-1078
$157.85
13107
SHAFT,BALANCER,RR
13107-1104
$78.57
13168
LEVER
13168-1238
Unavailable
13168A
LEVER,IDLER SHAFT
13168-1436
Unavailable
13234
SHAFT-COMP,BALANCER,FR
13234-1058
$144.02
39115
SHAFT-IDLER
39115-1054
$53.84
42034
COUPLING,BALANCER
42034-1053
Unavailable
92002
BOLT,IDLER LEVER
92001-1857
Unavailable
92015
NUT,16MM
92015-1477
$8.10
92022
WASHER,20.5X30X1,STEEL
92022-112
$8.86
92022A
WASHER,20.3X36X1.5
92022-1489
$6.22
92022B
WASHER
92022-1651
$5.88
92026
SPACER,20.2X36X3
92026-1208
$12.18
92026A
SPACER,12.2X25X4.3
92026-1211
Unavailable
92026B
SPACER,20.2X30X5
92026-1245
$15.16
92045
BEARING-BALL,#6204
92045-1032
$26.25
92045A
BEARING-BALL,SX0415
92045-1188
Unavailable
92046
BEARING-NEEDLE
92046-1127
Unavailable
92057
CHAIN,BALANCER,BF06HX70L
92057-1158
$336.12
92081
SPRING,BALANCER
92081-135
$5.54
92144
SPRING,IDLER SHAFT
92144-1445
$8.17
130
BOLT-FLANGED,8X20
130G0820
$4.06
130A
BOLT-FLANGED,6X16
130P0616
$1.80
480
CIRCLIP-TYPE-C,20MM
480J2000
$2.71
601
BEARING-BALL,#6004
601A6004
$11.91
610
ROLLER,4X8
610A0408
$4.31
670
O RING,7MM
670B1507
$1.28
