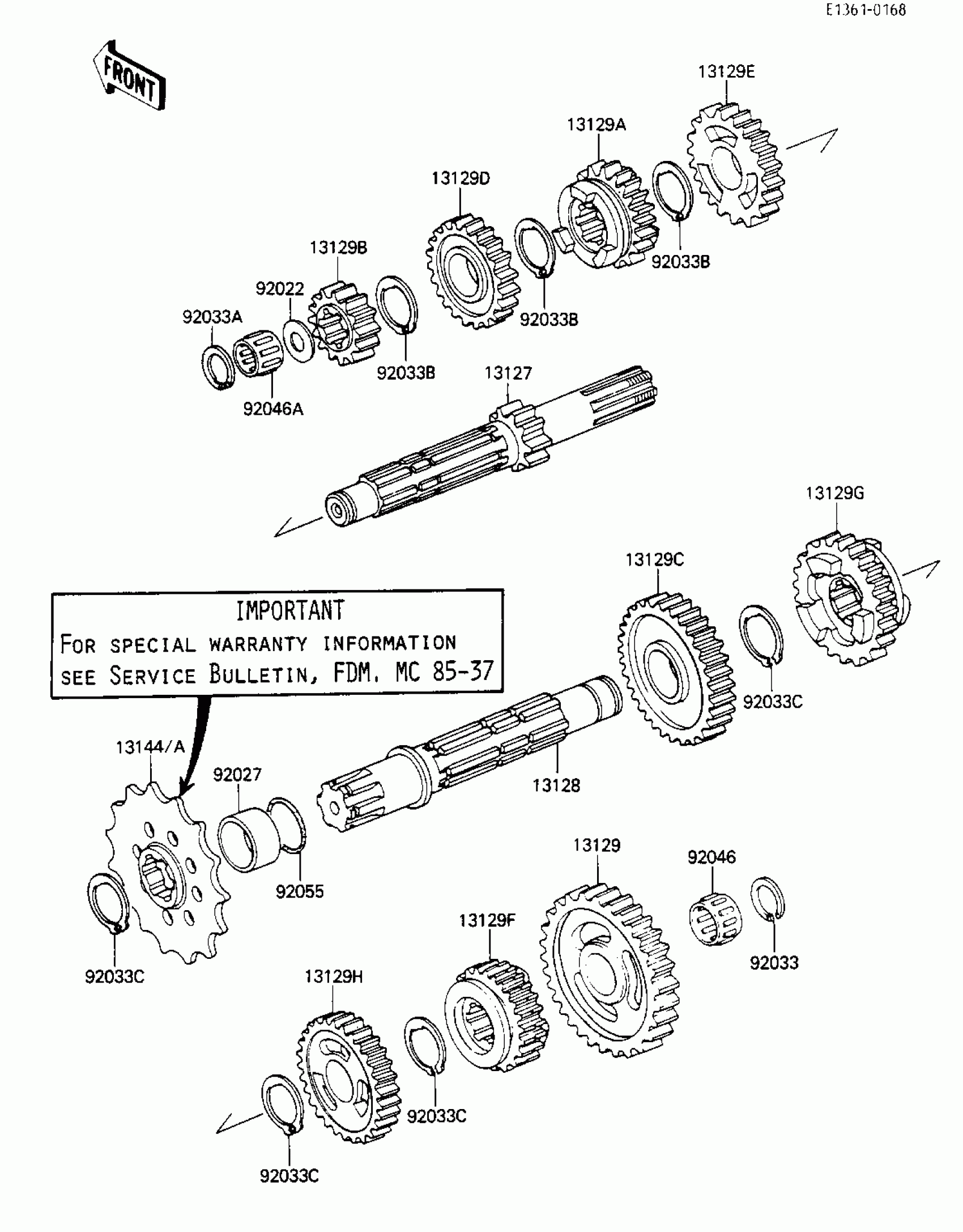

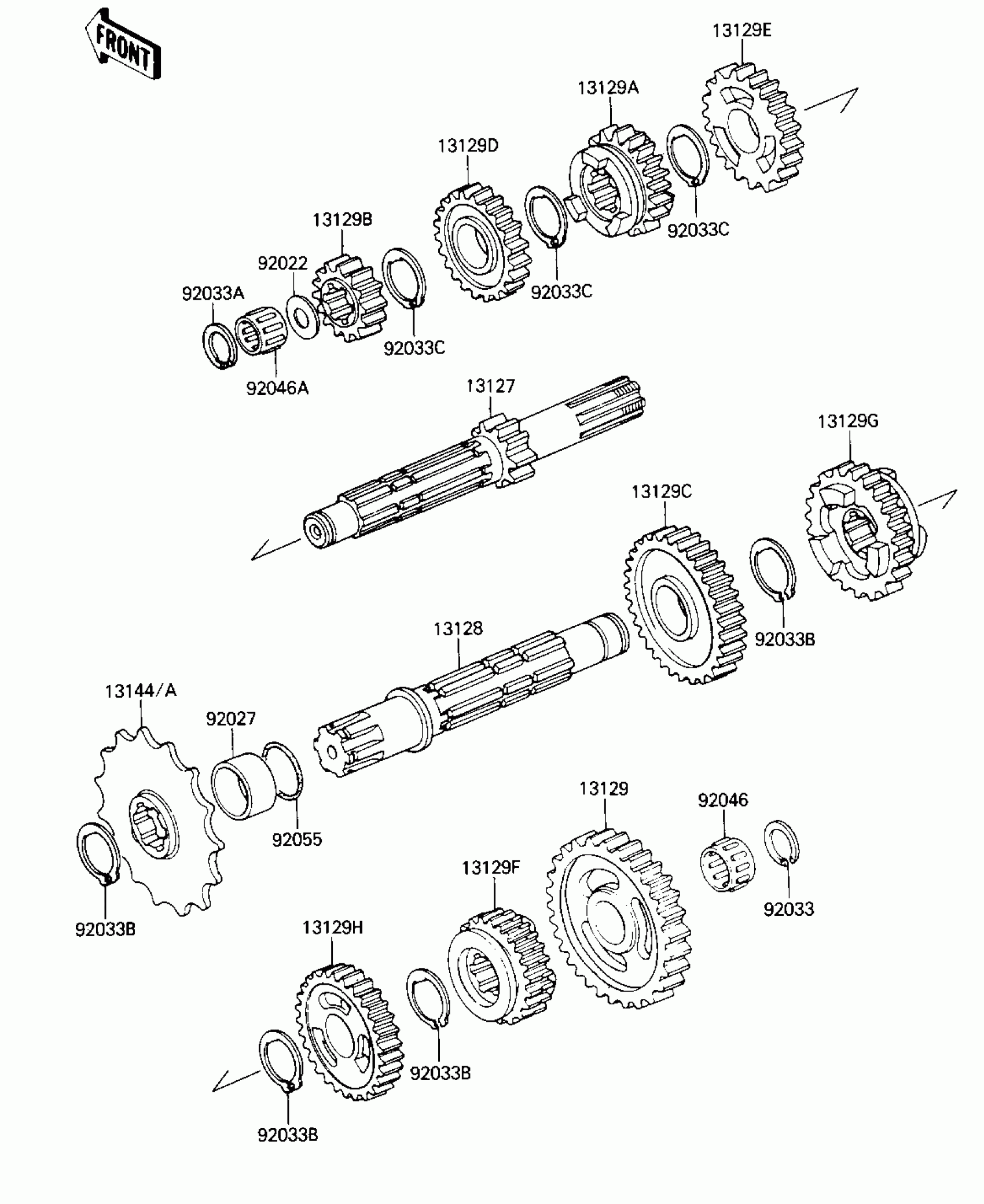

Kawasaki Tecate TRANSMISSION Diagram
#
Description
Price
13127
SHAFT-TRANSMISSION I
13127-1120
Unavailable
13128
SHAFT-TRANSMISSION O
13128-1047
Unavailable
13129
GEAR,OUTPUT LOW,32T
13129-1160
Unavailable
13129A
GEAR,INPUT 3RD,18T
13129-1956
Unavailable
13129B
GEAR,INPUT 2ND,17T
13129-1392
Unavailable
13129C
GEAR,OUTPUT 2ND,30T
13129-1394
Unavailable
13129D
GEAR,INPUT 4TH,20T
13129-1526
Unavailable
13129E
GEAR,INPUT TOP,28T
13129-1527
Unavailable
13129F
GEAR,OUTPUT TOP,26T
13129-1529
Unavailable
13129G
GEAR,OUTPUT 4TH,22T
13129-1762
Unavailable
13129H
GEAR OUTPUT 3RD,25T
13129-1763
Unavailable
13144
SPROCKET-OUTPUT
13144-1133
Unavailable
13144A
ENGINE SPROCKET,14T
13144-1006
Unavailable
92027
COLLAR,SPROCKET
92027-1963
Unavailable
