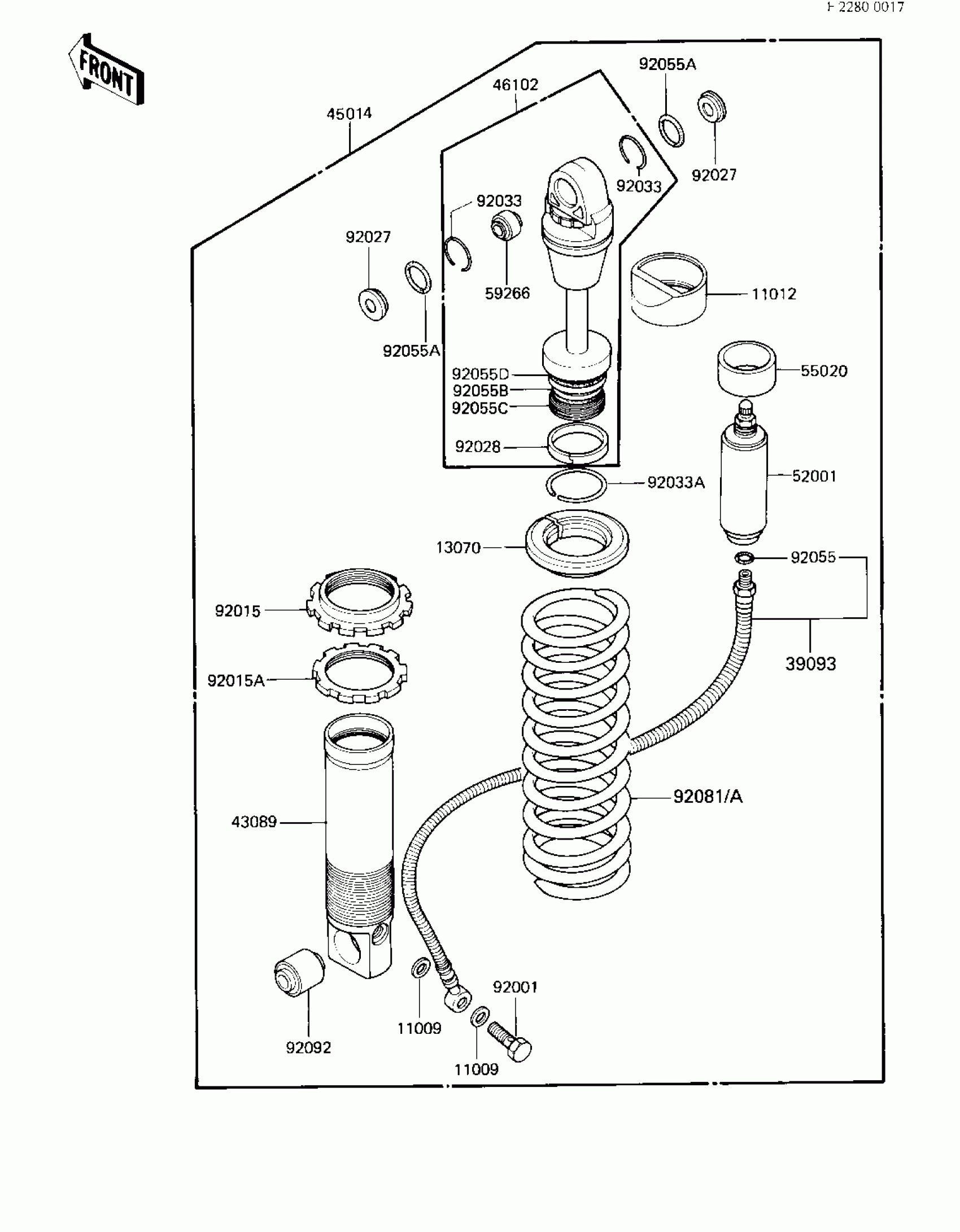

Kawasaki Tecate SHOCK ABSORBER ('84 A1) Diagram
#
Description
Price
11009
GASKET
44045-057
$4.86
11012
CAP,REARSHOCK
11012-1278
Unavailable
13070
GUIDE,SPRING
13070-1075
$69.04
39093
PIPE-COMP-SUSP
39093-1084
$111.97
43089
CYLINDER-SHOCKABSORBE
43089-4002
$332.00
45014
SHOCKABSORBER
45014-4012
$866.03
46102
ROD,REARSHOCK
46102-4009
$544.45
52001
TANK-OIL,RR SHOCK
52001-1104
$120.05
55020
GUARD,AIR TANK
55020-1044
Unavailable
59266
JOINT-BALL
59266-1014
Unavailable
92001
BOLT,BANJO
92001-1752
Unavailable
92015
NUT,SPRING ADJUST
92015-1239
$51.19
92015A
NUT,SPRING ADJUST LOC
92015-1240
$9.93
92027
COLLAR,REAR
92027-4037
$10.38
92028
BUSHING,ROD
92028-1198
Unavailable
92033
RING-SNAP
92033-1090
$5.42
92033A
RING-SNAP,REARSHOCK
92033-1091
$4.96
92055
"0" RING
92055-1099
Unavailable
92055A
RING-O
92055-1156
$1.42
92055B
RING-O,ROD
92055-1181
Unavailable
92055C
RING-O,ROD
92055-1158
Unavailable
92055D
RING-O,ROD
92055-1181
Unavailable
92081
SPRING R-SHOCK,OPT5.8
92081-1736
$248.85
92081A
SPRING R-SHOCK,STD5.0
92081-4024
$261.15
92092
BUSHING-RUBBER,SHOCKABSORBER
92092-1008
$34.49
