Description

Price

11009

GASKET

44045-057

$4.86

13070

GUIDE,SPRING

13070-1075

$69.04

14024

COVER

14024-1145

Unavailable

16126

VALVE,AIR

16126-1118

$37.15

39093

PIPE-COMP-SUSP

39093-1116

$120.30

43089

CYLINDER-SHOCKABSORBE

43089-1109

$325.82

45014

SHOCKABSORBER

45014-1364

$864.88

46102

ROD,SHOCKABSORBER

46102-1208

$532.08

52001

TANK-OIL,SHOCKABSORBE

52001-1072

$302.25

59266

JOINT-BALL

59266-1053

$116.73

92001

BOLT,BANJO

92001-1752

Unavailable

92015

NUT,SPRING ADJUST LOCK

92015-1551

$35.97

92015A

NUT,SPRING GUIDE

92015-1552

$58.02

92027

COLLAR,SHOCKABSORBER

92027-1871

Unavailable

92028

BUSHING,ROD

92028-1288

Unavailable

92033

RING-SNAP

92033-1090

$5.42

92033A

RING-SNAP

92033-1206

Unavailable

92037

CLAMP

92037-1847

$6.16

92055

RING-O,ROD

92055-1181

Unavailable

92055A

RING-O,ROD

92055-1234

Unavailable

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1054

$34.49

92093

SEAL

92093-1183

$16.50

92144

SPRING,SHOCKABSORBER,

92144-1125

$249.90

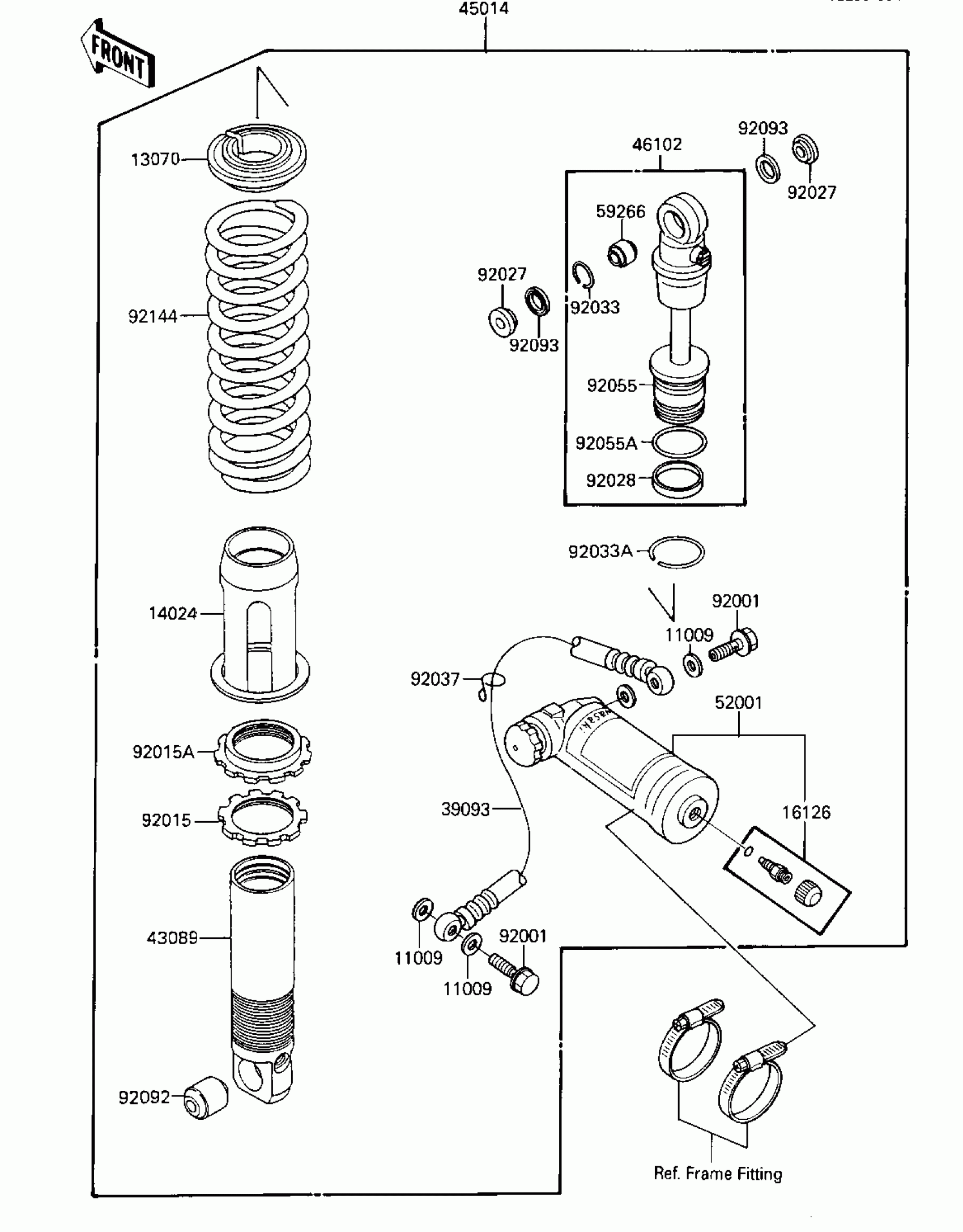

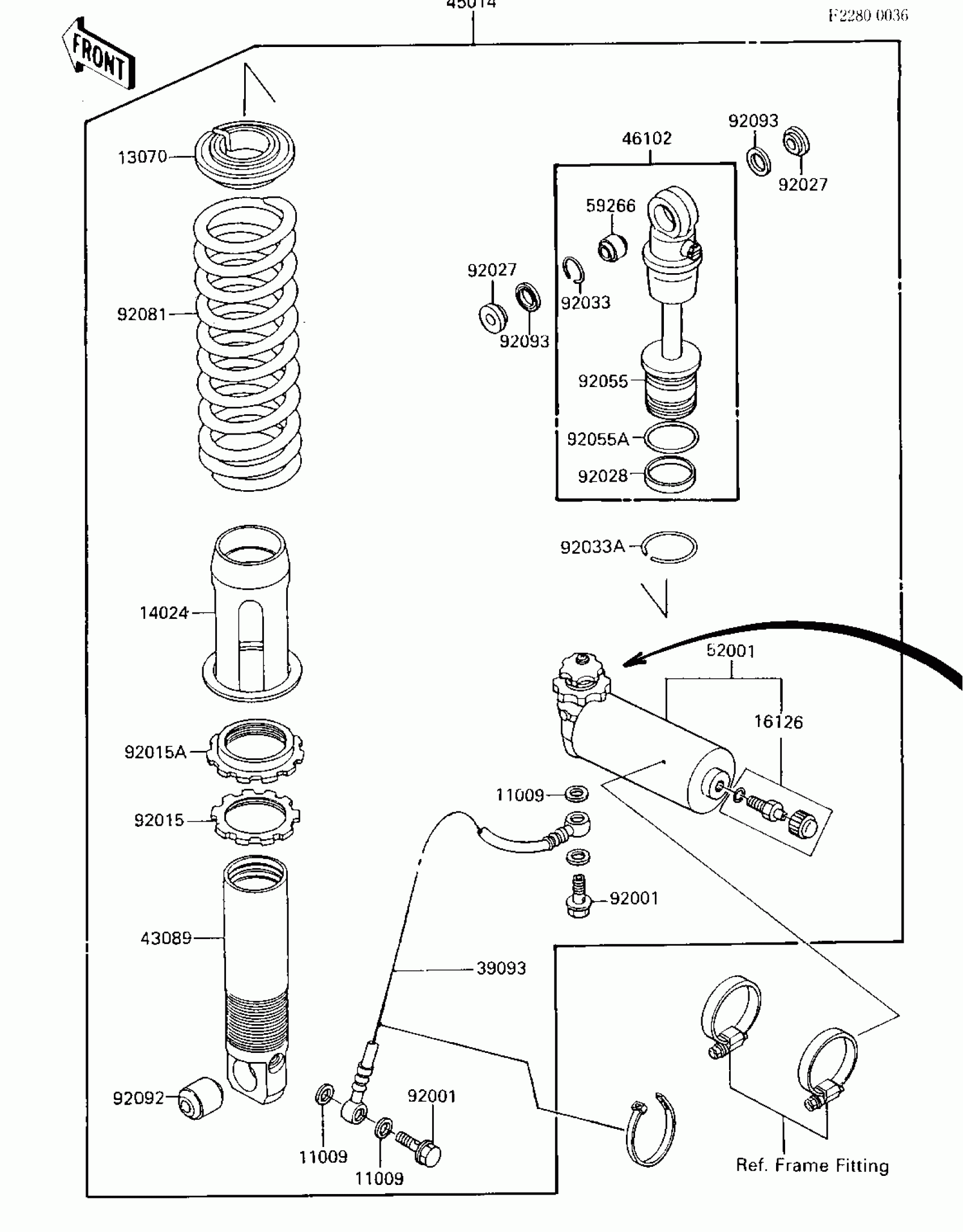

Kawasaki Tecate SHOCK ABSORBER Diagram

GASKET

GUIDE,SPRING

COVER

VALVE,AIR

PIPE-COMP-SUSP

CYLINDER-SHOCKABSORBE

SHOCKABSORBER

ROD,SHOCKABSORBER

TANK-OIL,SHOCKABSORBE

JOINT-BALL

BOLT,BANJO

NUT,SPRING ADJUST LOCK

NUT,SPRING GUIDE

COLLAR,SHOCKABSORBER

BUSHING,ROD

RING-SNAP

RING-SNAP

CLAMP

RING-O,ROD

RING-O,ROD

BUSHING-RUBBER,SHOCKABSORBER

SEAL

SPRING,SHOCKABSORBER,
