1984 Kawasaki Tecate Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 1984 Kawasaki Tecate, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

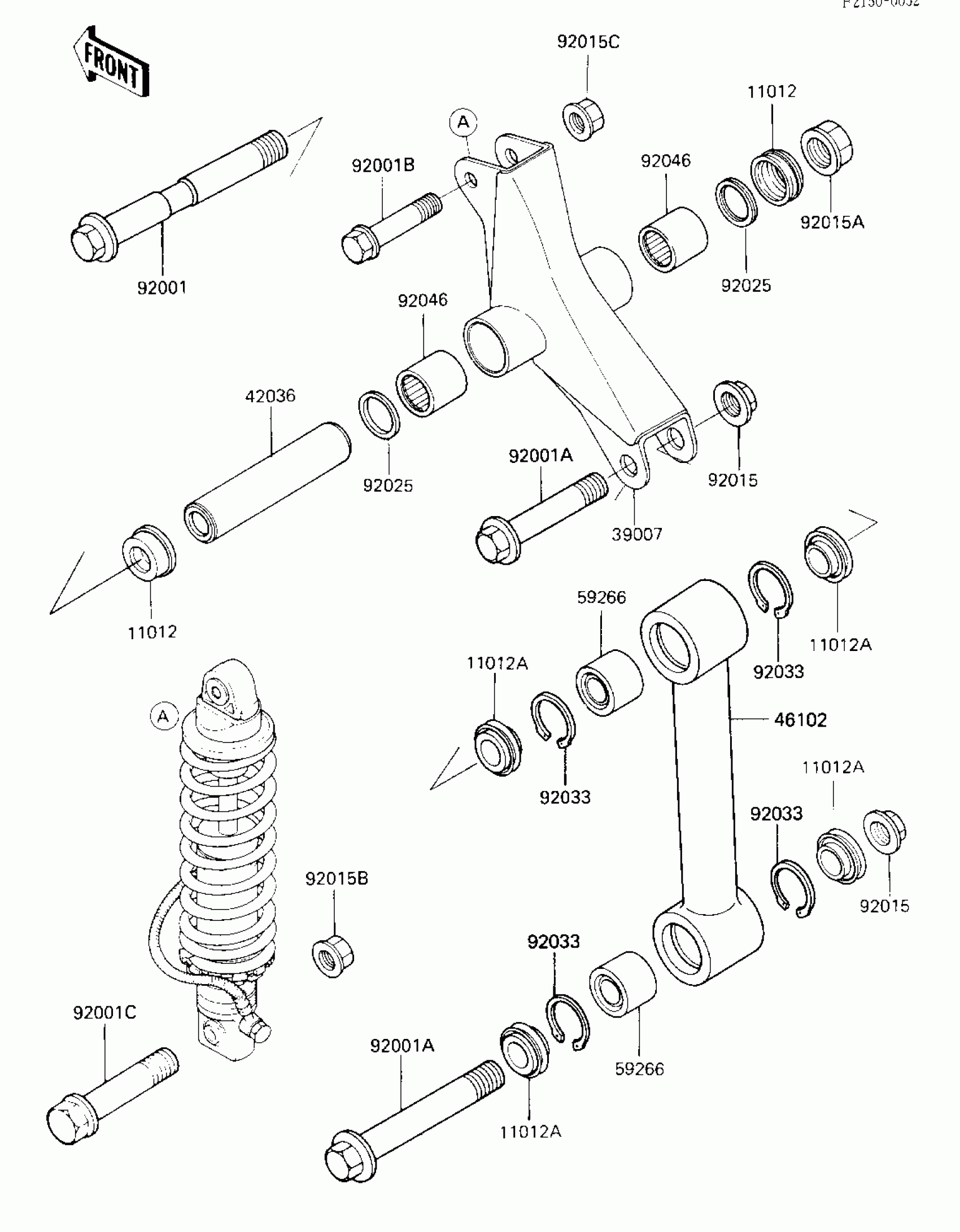

1984 Kawasaki Tecate Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1203

1
Out of stock

11012A

CAP,ROD

11012-1258

1
Out of stock

39007

ARM SUSPENSION

39007-4006-8T

1

$51.14

In stock

42036

SLEEVE,17.1X24X106

42036-4007

1
Out of stock

46102

ROD

46102-4008-8T

1
Out of stock

59266

JOINT-BALL,SB142820E0

59266-1052

1
Out of stock

92001

BOLT,ARM CENTER,L=146

92001-4029

1
Out of stock

92001A

BOLT,FLANGED,14X57

92001-4035

1
Out of stock

92001B

BOLT,FLANGED,10X50

92001-4036

1
Out of stock

92001C

BOLT,FLANGED,12X90

92001-4037

1
Out of stock

92015

NUT,14MM

92015-1407

1
Out of stock

92015A

NUT,16MM

92015-1046

1
Out of stock

92015B

NUT,FLANGED,12MM

92015-1156

1
Out of stock

92015C

NUT,FLANGED,10MM

92015-1415

1
Out of stock

92025

SHIM

92025-1229

1
Out of stock

92033

RING,SNAP

92033-1064

1
Out of stock

92046

BEARING-NEEDLE,TA2428Z

92046-1041

1
Out of stock
