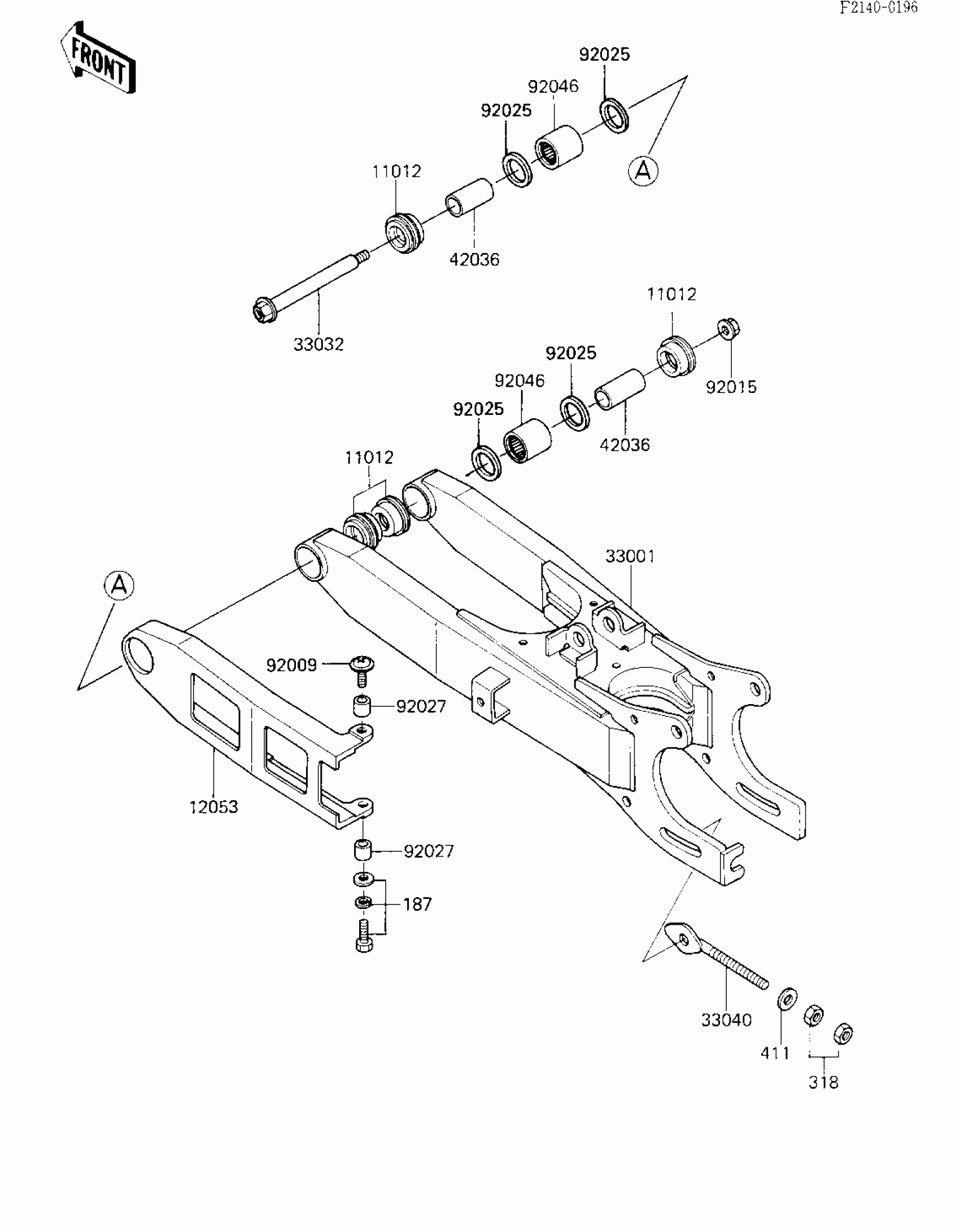

Kawasaki Tecate SWING ARM ('84 A1) Diagram

Description

Price

11012

CAP,SWING ARM

11012-1259

$17.61

12053

GUIDE-CHAIN,BLACK

12053-4003

Unavailable

33001

SWING ARM

33001-4007-8T

$198.02

33032

SHAFT-SWING ARM

33032-1042

Unavailable

33040

ADJUSTER-CHAIN

33040-4006

Unavailable

42036

SLEEVE,SWING ARM

42036-1064

$19.97

92009

SCREW,6X14,WHITE

92009-1287

$1.81

92015

NUT,14MM

92015-1407

$7.54

92025

SHIM,SWING ARM

92025-1116

Unavailable

92027

COLLAR,6.3X10X5

92027-164

$5.22

92046

BRG,NEEDLE,HMK2030

92046-1031

Unavailable

187

BOLT-UPSET-WSP

187B0620

Unavailable

318

NUT-HEX-SMALL,8MM

318G0800

Unavailable

411

WASHER PLAIN 8MM

411B0800

Unavailable
