1984 Kawasaki Tecate Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 1984 Kawasaki Tecate, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

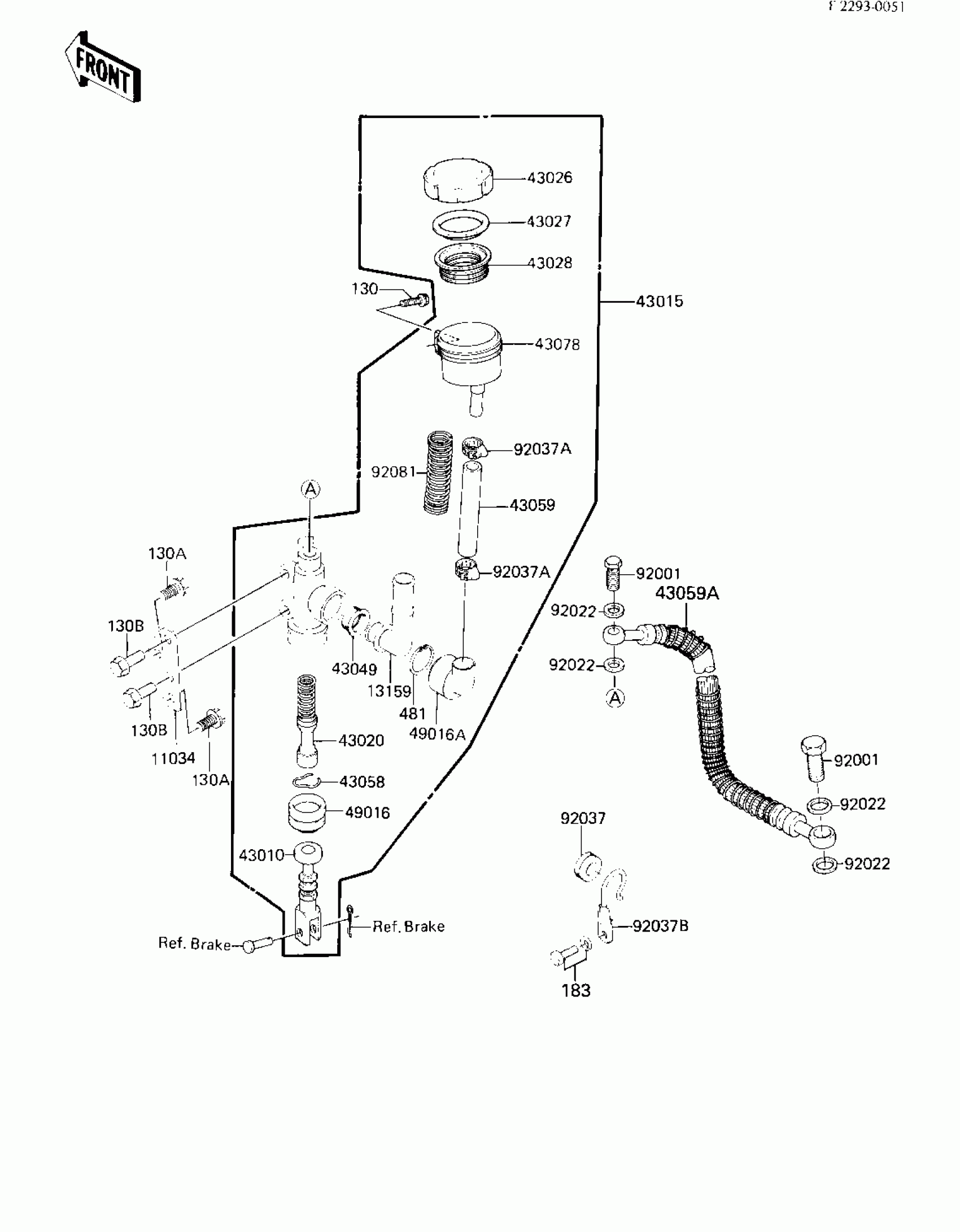

1984 Kawasaki Tecate Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11034

BRACKET,MASTER CYLIND

11034-4267

1
Out of stock

13159

CONNECTOR

13159-1009

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-1052

1

$72.22

In stock

43015

1

$303.06

In stock

43020

PISTON-COMP-BRAKE

43020-4001

1

$80.78

In stock

43026

CAP-BRAKE

43026-1016

1

$37.12

In stock

43027

PLATE-DIAPHRAGM

43027-1005

1

$5.66

In stock

43028

DIAPHRAGM

43028-1016

1

$21.88

In stock

43049

PACKING

43049-1008

1

$10.97

In stock

43058

RING,ROD STOPPER

43058-004

1

$6.08

In stock

43059

HOSE-BRAKE

43059-4004

1

$83.65

In stock

43059A

HOSE-BRAKE

43059-4004

1

$83.65

In stock

43078

RESERVOIR

43078-1009

1
Out of stock

49016

1

$15.07

In stock

49016A

1

$15.07

In stock

92001

BOLT,OIL,L=23

92002-1888

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92037

GROMMET,HOSE CLAMP

43064-007

1

$4.37

In stock

92037A

CLAMP,BRAKE HOSE

92037-1386

1
Out of stock

92037B

CLAMP,BRAKE HOSE

92037-4014

1
Out of stock

92081

1

$7.08

In stock

130

BOLT,FLANGED,6X20

130B0620

1
Out of stock

130A

BOLT-FLANGED,8X14

130G0814

1
Out of stock

130B

BOLT-FLANGED,8X20

130G0820

1
Out of stock

183

BOLT-UPSET-WS-SMALL

183B0816

1
Out of stock

481

1

$2.47

In stock
