1984 Kawasaki Tecate Front Hub/brake Diagram

← All diagrams

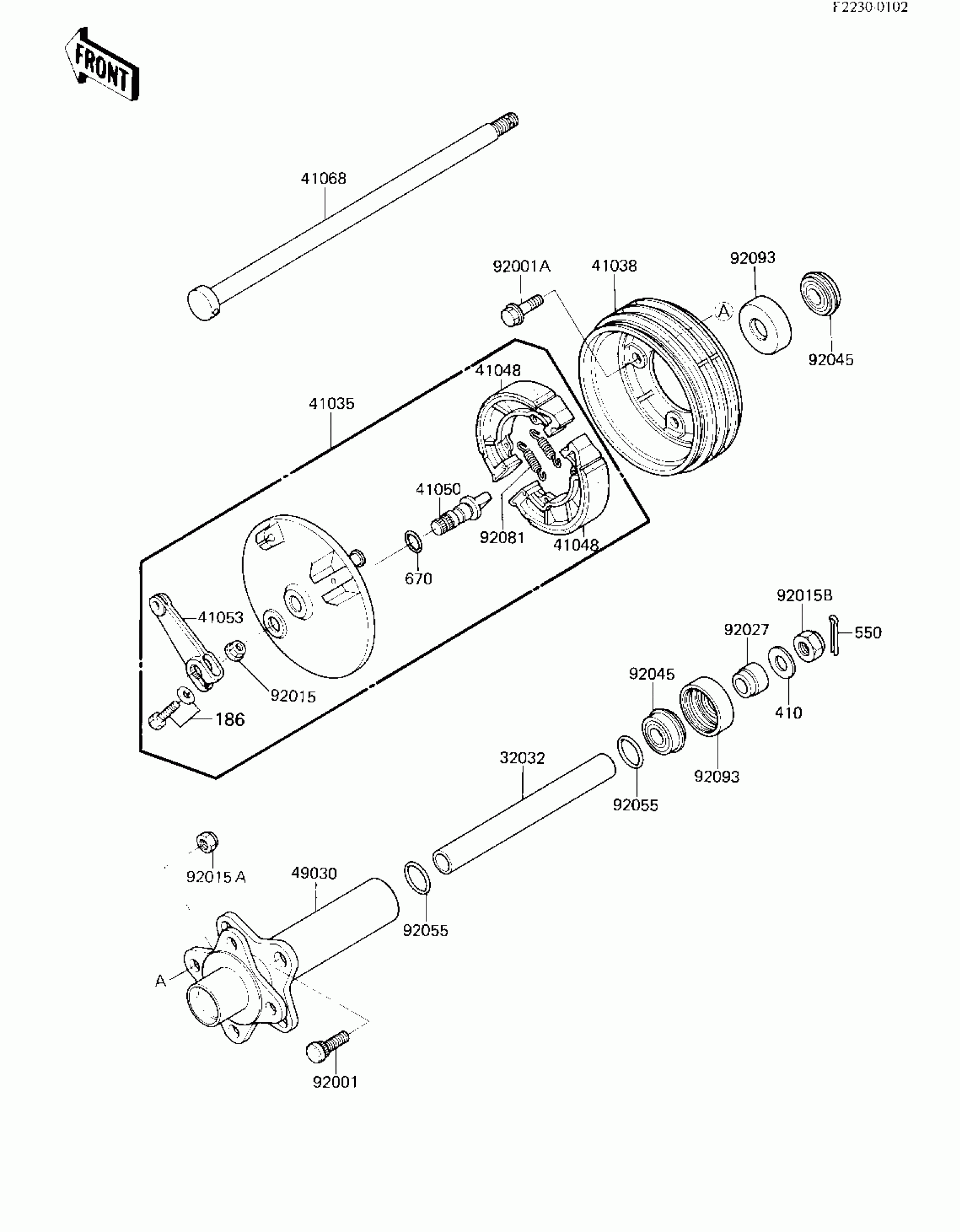

Find the part on the Front Hub/brake diagram for your 1984 Kawasaki Tecate, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Kawasaki Tecate Front Hub/brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32032

COLLAR

32032-4118

1
Out of stock

41035

PANEL-ASSY-BRAKE,FR

41035-4011

1

$252.75

In stock

41038

DRUM,FR

41038-4016

1

$243.82

In stock

41048

SHOE-BRAKE

41048-1068

1

$24.30

In stock

41050

CAM SHAFT,BRAKE

41050-1002

1
Out of stock

41053

LEVER-BRAKE CAM

41053-4003

1

$35.34

In stock

41068

AXLE,17X405

41068-4019

1
Out of stock

49030

HUB,FRONT

49030-4010

1
Out of stock

92001

BOLT,LUG

92001-4006

1
Out of stock

92001A

BOLT,FLANGED,10X22

92001-4034

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,10MM

92015-1429

1
Out of stock

92015B

NUT-SELF LOCKING

92019-012

1
Out of stock

92027

COLLAR,FRONT AXLE,L=2

92027-4032

1
Out of stock

92045

BEARING-BALL,#6203 ZN

92045-4006

1
Out of stock

92055

"0" RING

92055-4001

1
Out of stock

92081

SPRING,BRAKE SHOE

42020-004

1
Out of stock

92093

SEAL

92093-4007

1
Out of stock

186

BOLT-UPSET-WP

186G0635

1
Out of stock

410

WASHER PLAIN 16MM

410B1600

1
Out of stock

550

PIN,COTTER

550D3230

1
Out of stock

670

O RING,15MM

670B2015

1
Out of stock
