Description

Price

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$14.10

43010

ROD-ASSY-BRAKE

43010-1057

Unavailable

43015

CYLINDER-ASSY-MASTER,

43015-1305

Unavailable

43020

PISTON-COMP-BRAKE

43020-1061

Unavailable

43026

CAP-BRAKE,MASTER CYLINDER

43026-1021

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1035

$27.57

43059

HOSE-BRAKE,RR MASTER

43059-1322

Unavailable

43059A

HOSE-BRAKE,RR

43059-1382

$144.46

43078

RESERVOIR

43078-1078

$33.90

92002

BOLT,OIL,L=23

92002-1888

$5.48

92009

SCREW,5MM

92009-1409

$5.86

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92037

GROMMET,HOSE CLAMP

43064-007

$5.52

92037A

CLAMP,BRAKE HOSE

92037-1547

$12.35

92037B

CLAMP,BRAKE HOSE

92037-4014

Unavailable

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

130

BOLT-FLANGED,8X20

130G0820

$4.06

132

BOLT-FLANGED-SMALL

132G0620

$2.33

183

BOLT-UPSET-WS-SMALL

183B0816

Unavailable

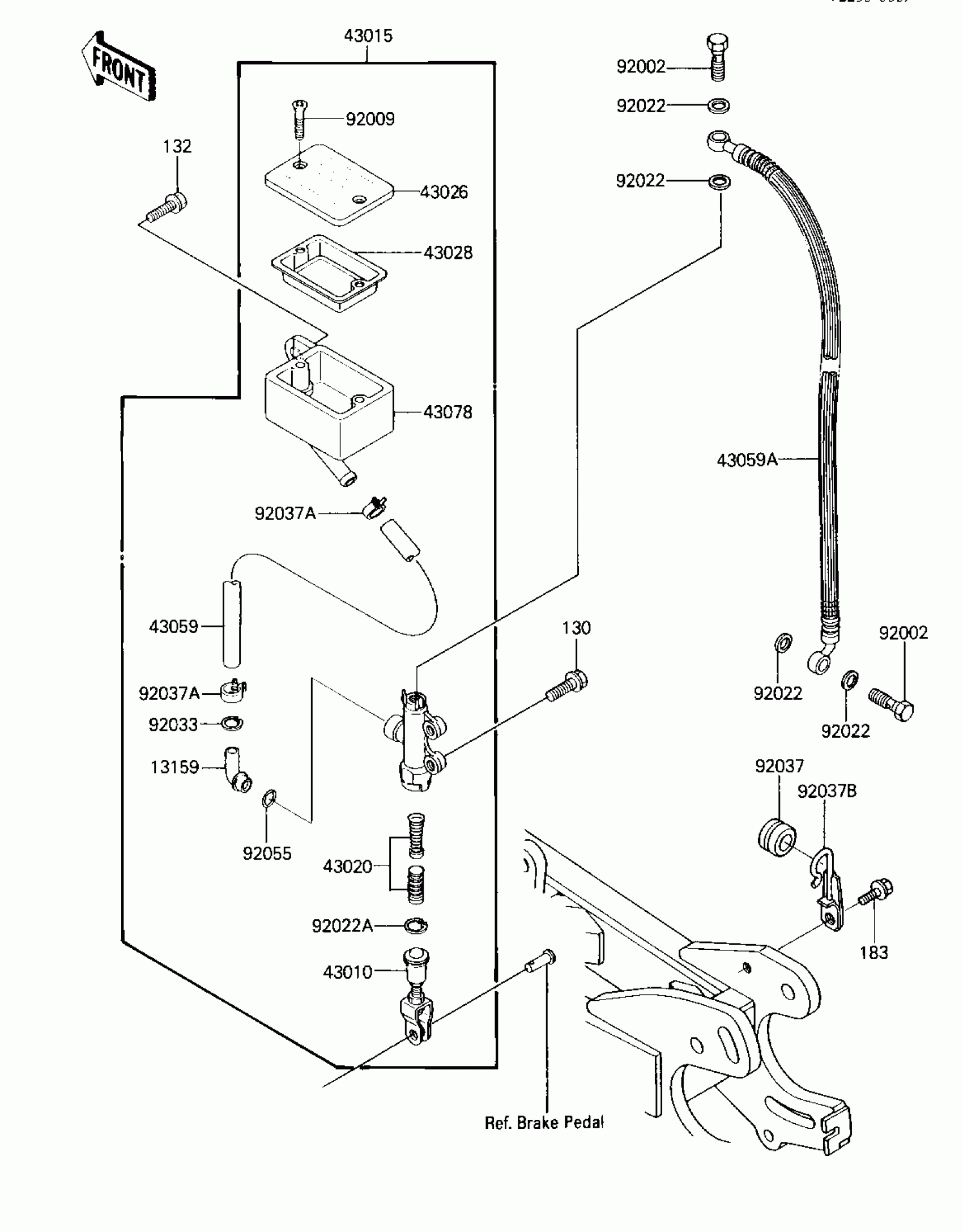

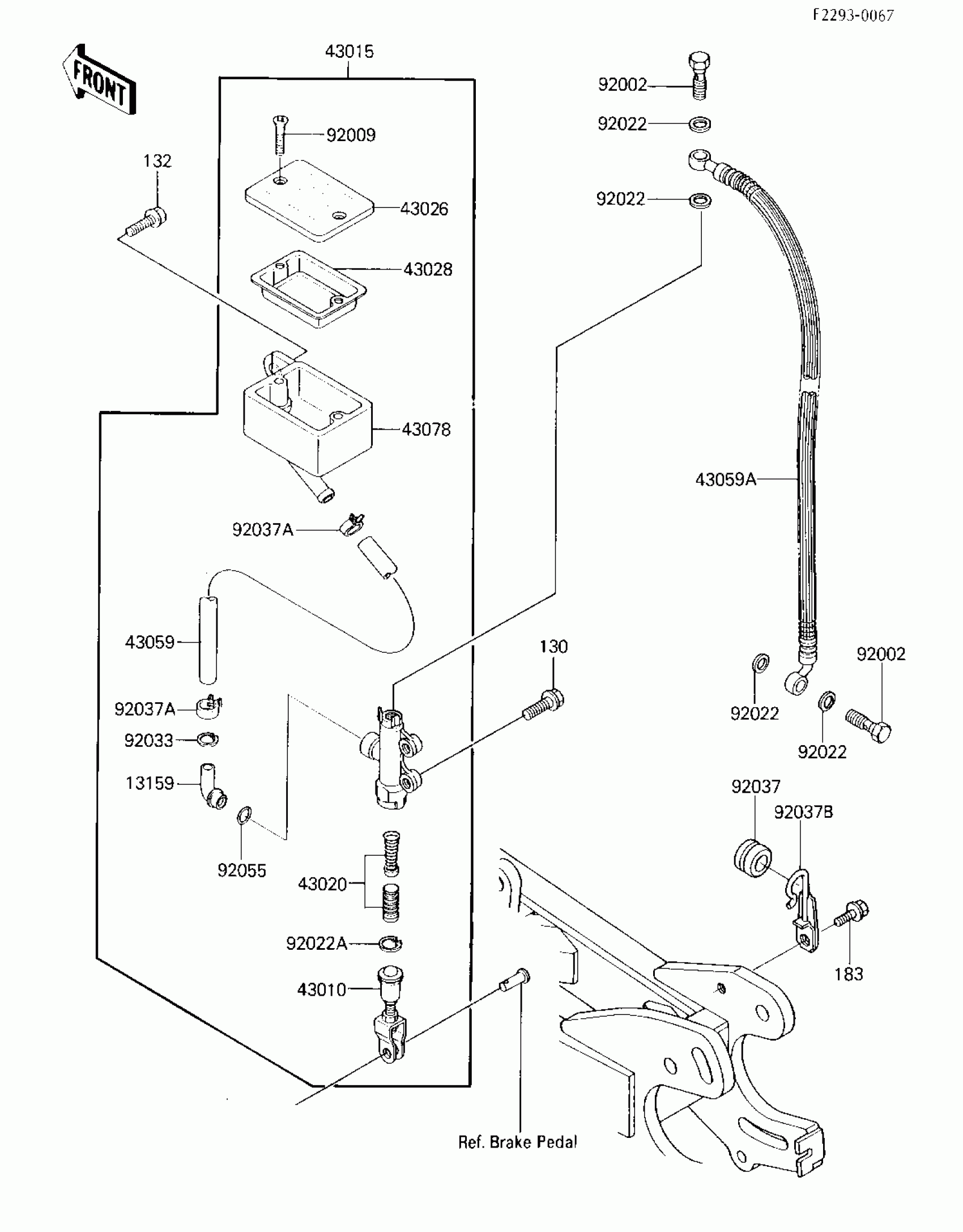

Kawasaki Tecate REAR MASTER CYLINDER Diagram

CONNECTOR,RR MASTER CYLINDER

ROD-ASSY-BRAKE

CYLINDER-ASSY-MASTER,

PISTON-COMP-BRAKE

CAP-BRAKE,MASTER CYLINDER

DIAPHRAGM,MASTER CYLINDER

HOSE-BRAKE,RR MASTER

HOSE-BRAKE,RR

RESERVOIR

BOLT,OIL,L=23

SCREW,5MM

WASHER,10.5X15X1.5

WASHER,CIRCRIP

RING-SNAP,20.5MM

GROMMET,HOSE CLAMP

CLAMP,BRAKE HOSE

CLAMP,BRAKE HOSE

RING-O,MASTER CYLINDER

BOLT-FLANGED,8X20

BOLT-FLANGED-SMALL

BOLT-UPSET-WS-SMALL
