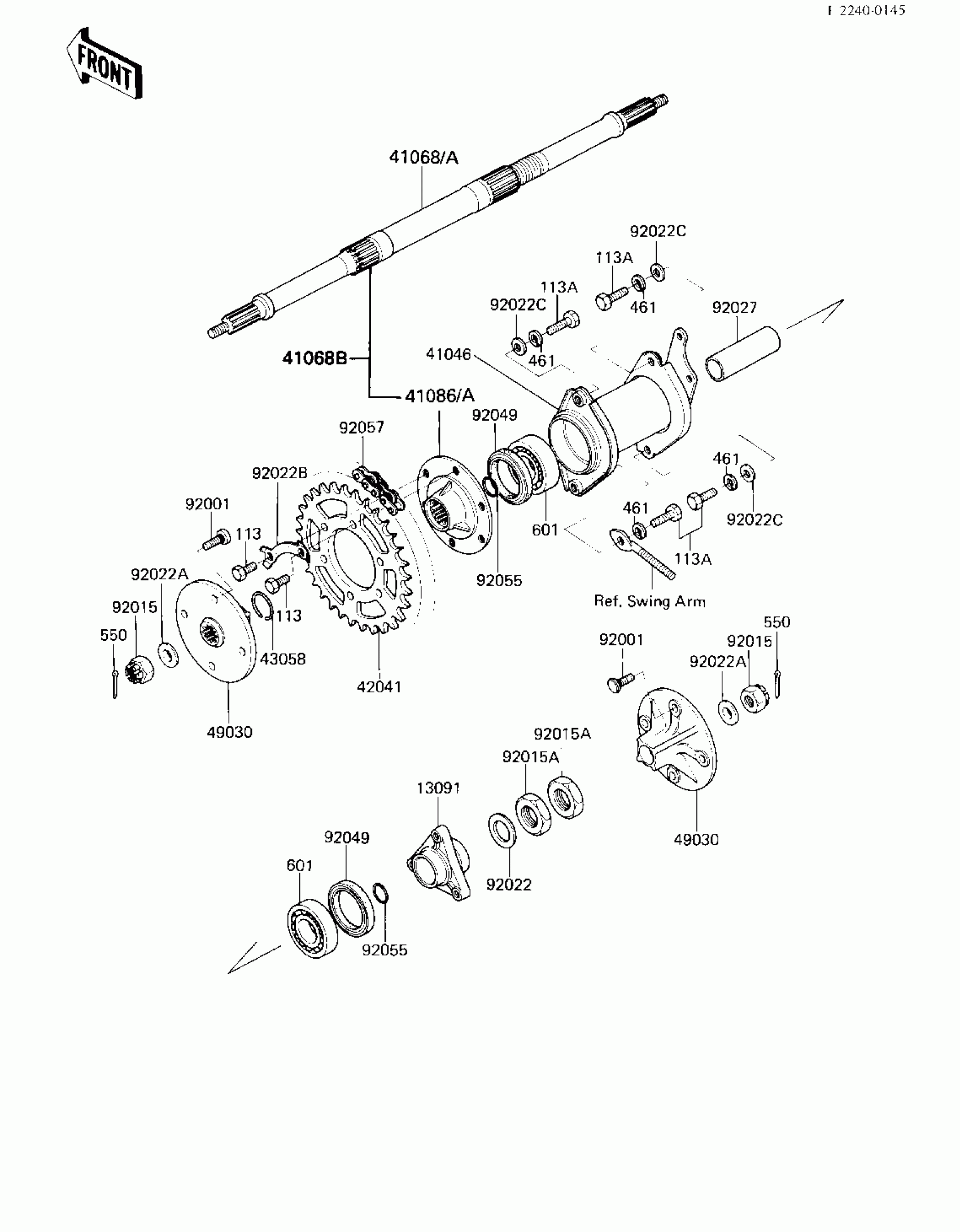

Kawasaki Tecate REAR HUB/AXLE/CHAIN ('84 A1) Diagram
#
Description
Price
13091
HOLDER,DISC PLATE
13091-1358
Unavailable
41046
HOUSING
41046-4010-8T
$79.88
41068
AXLE,REAR HUB,L=866
41068-1174
$512.70
41068A
AXLE,REAR HUB
41068-5001
$514.78
41068B
AXLE,REAR HUB
41068-5001
$514.78
41086
FLANGE,REAR SPROCKET
41086-1056
$111.97
41086A
FLANGE,REAR SPROCKET
41086-1056
$111.97
42041
SPROCKET-HUB,42T
42041-1130
Unavailable
43058
RING
43058-4002
Unavailable
49030
RR-HUB
49030-4013
$91.51
92001
BOLT,LUG
92001-4006
Unavailable
92015
NUT,CASTLE,18MM
42045-018
$9.23
92015A
NUT,LOCK,32MM
92015-1493
Unavailable
92022
WASHER,32.5X43X2.3
92022-1225
$7.98
92022A
WASHER,18.3X34X4.5
92022-1658
$3.92
92022B
WASHER,18.3X34X4.5
92022-1658
$3.92
92022C
WASHER,12.5X28X4.5
92022-4037
Unavailable
92027
COLLAR
92027-4025
$17.26
92049
SEAL-OIL,REAR HUB
92049-4001
$17.72
92055
RING-O,33X1.6
92055-4002
$6.27
92057
DR CHAIN EK520SH-0 82
92057-4012
$233.03
113
BOLT,HEX HEAD,10X16
113G1016
$3.85
113A
BOLT-SMALL-FINE,12X30
113P1230
Unavailable
461
WASHER-SPRING,12MM
461F1200
$0.96
550
PIN-COTTER,4.0X35
550D4035
$2.17
601
BEARING-BALL,#6007
601A6007
$32.21
