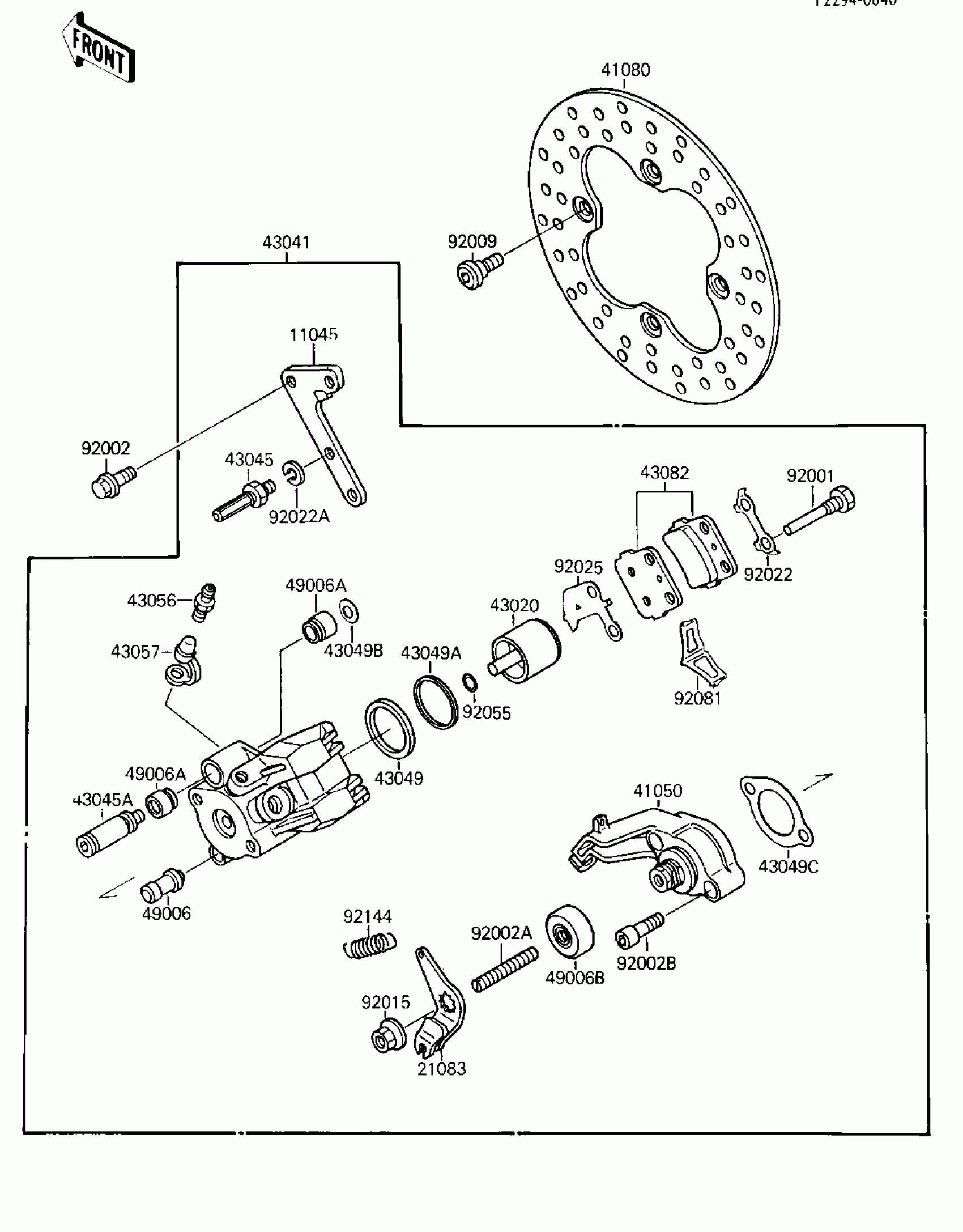

Kawasaki Tecate REAR BRAKE Diagram

#

Description
Price

11045

BRACKET,RR CALIPER

11045-1418

Unavailable

21083

ARM

21083-1061

Unavailable

41050

CAM-BRAKE,RR CALIPER

41050-1073

$65.35

41080

DISC,RR

41080-1180

$335.29

43020

PISTON-COMP-BRAKE

43020-1102

$53.70

43041

CALIPER-ASSY,RR

43041-1495

$423.33

43045

SHAFT-CALIPER

43045-1010

$20.77

43045A

SHAFT-CALIPER

43045-1051

$19.83

43049

PACKING,PISTON SEAL

43049-1023

$14.30

43049A

PACKING,PISTON SEAL

43049-1024

$8.51

43049B

PACKING

43049-1025

$5.46

43049C

PACKING

43049-1053

$3.97

43056

BREATHER

43056-1052

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

43082

PAD-ASSY-BRAKE

43082-1066

$45.50

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1089

$7.38

49006B

BOOT,CALIPER

49006-1193

$8.40

92001

BOLT,PAD HOLDER

92001-1723

$7.79

92002

BOLT,8X20

92002-1250

$5.65

92002A

BOLT,ADJUST

92002-1771

Unavailable

92002B

BOLT

92002-1772

$9.64

92009

SCREW,8X18

92009-1408

Unavailable

92015

NUT

92015-1600

$5.05

92022

WASHER,LOCK

92022-1372

$5.24

92022A

WASHER,WAVE

92022-1373

$3.92

92025

SHIM,PAD

92025-1344

$15.14

92055

RING-O

92055-1351

$6.52

92081

SPRING,PAD

92081-1502

$8.51

92144

SPRING

92144-1037

$12.37
