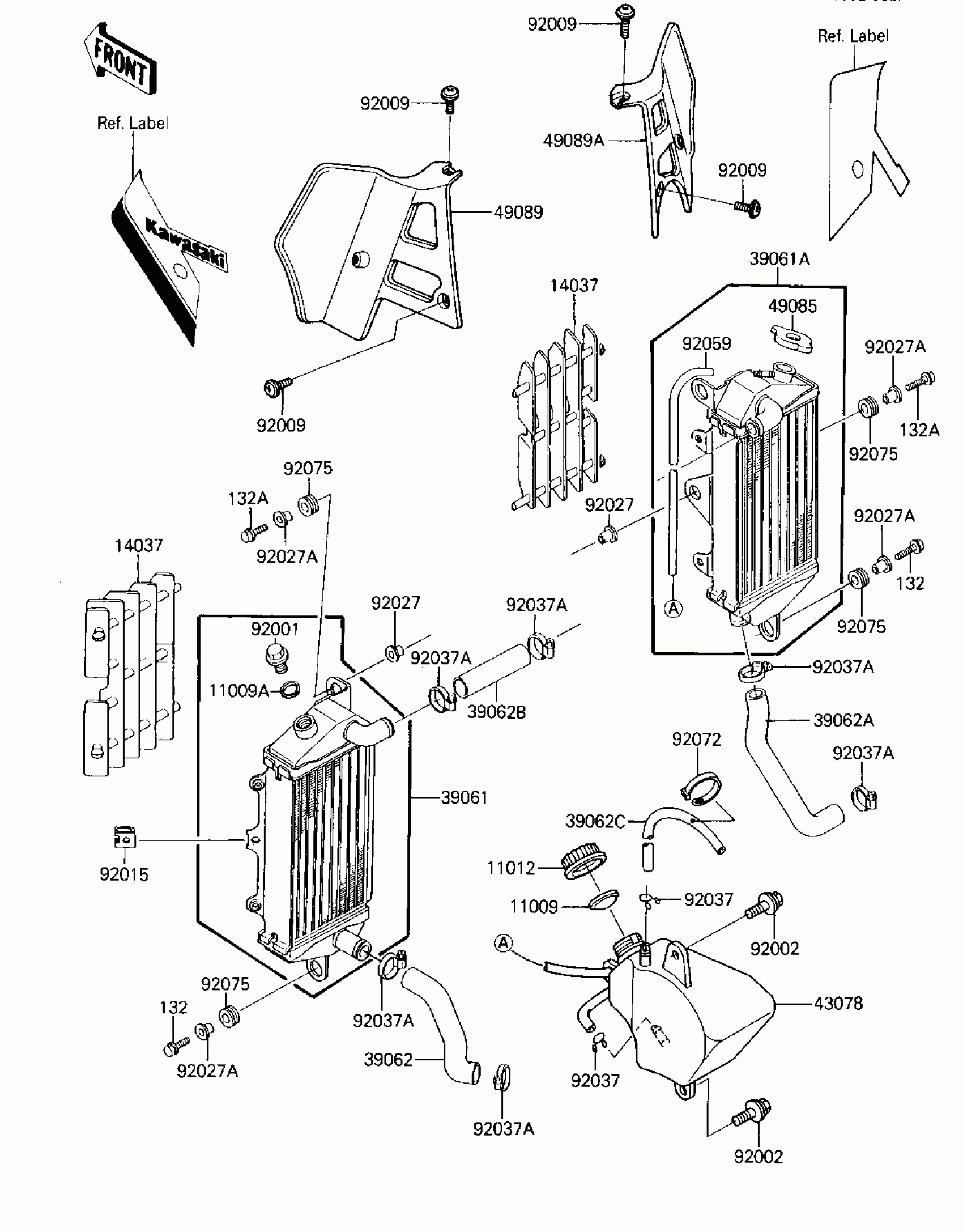

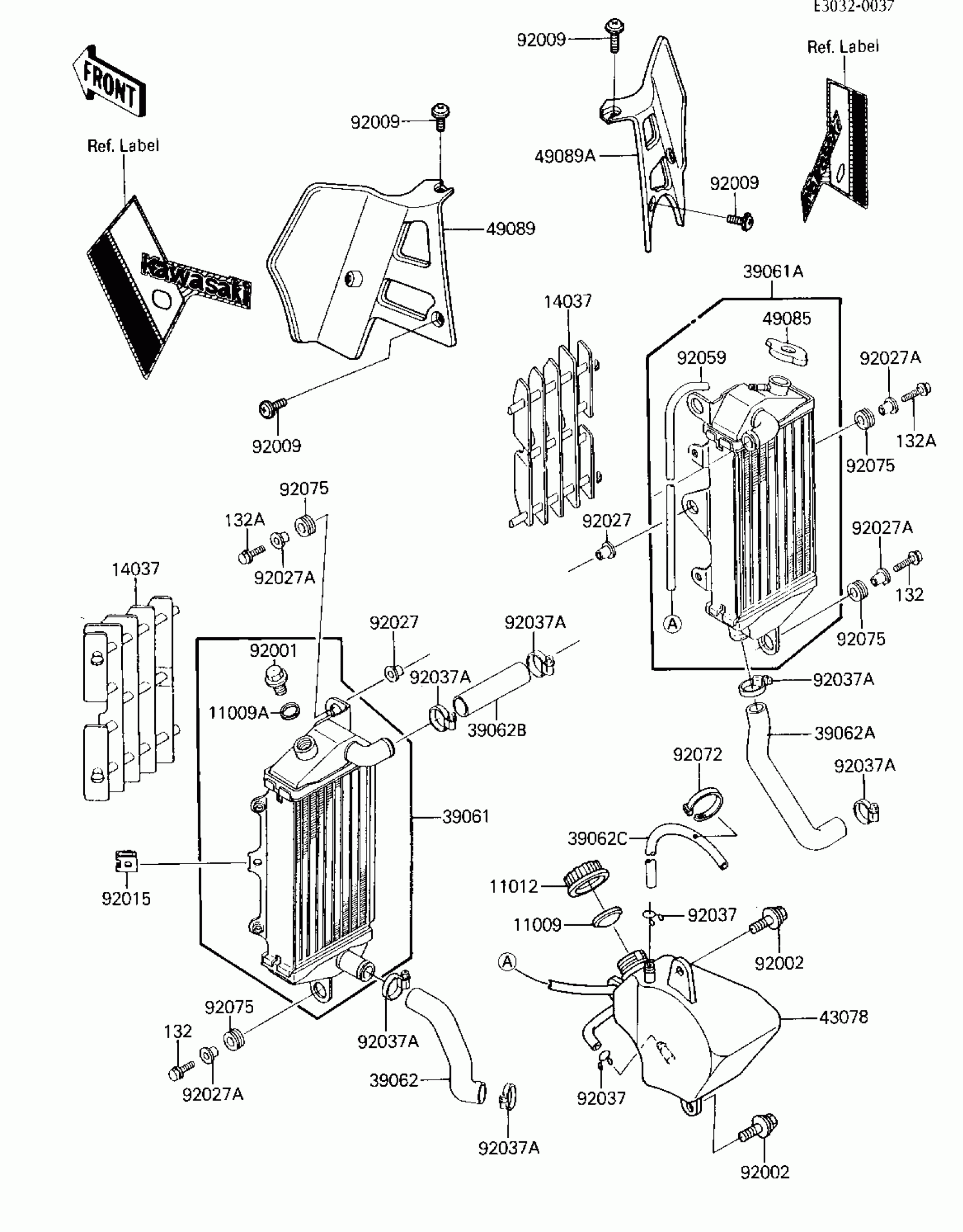

Kawasaki Tecate RADIATOR/COOLANT TANK Diagram
#
Description
Price
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11009A
GASKET,DRAIN BOLT
11009-1152
$7.55
11012
CAP
11012-1084
$1.72
14037
SCREEN,RADIATOR,EBON
14037-1077-6C
$23.16
39061
RADIATOR-ASSY,LH
39061-1079
$610.29
39061A
RADIATOR-ASSY,RH
39061-1080
$412.16
39062
HOSE-COOLING,CYLINDER HEAD
39062-1094
Unavailable
39062A
HOSE-COOLING,RADIATO
39062-1095
$34.55
39062B
HOSE-COOLING
39062-1184
$25.59
39062C
HOSE-COOLING
39062-1187
$37.82
43078
RESERVOIR
43078-1075
Unavailable
49085
CAP-ASSY-PRESSURE
49085-1003
$37.42
49089
SHROUD-ENGINE
49089-1066-6W
Unavailable
49089A
SHROUD-ENGINE
49089-1067-6W
Unavailable
92001
BOLT,RADIATOR DRAIN
92002-1682
$20.51
92002
BOLT,6X14
92150-1340
$5.07
92009
SCREW,6X10,WHITE
92009-1286
$4.31
92015
NUT
92015-1487
$4.80
92027
COLLAR
92027-1045
$5.52
92027A
COLLAR,6.5X10X14.1
92027-1183
$5.52
92037
CLAMP,TUBE
92037-147
$7.34
92037A
CLAMP,COOLING HOSE
92037-1589
$18.57
92059
TUBE,5X9X800
92059-1383
$9.64
92072
BAND
92072-3505
Unavailable
92075
DAMPER
92075-1352
$6.52
132
BOLT-FLANGED-SMALL
132G0620
$2.33
132A
BOLT-FLANGED-SMALL,6X30
132G0630
$2.48
