Description

Price

13061

BOSS,KICK PEDAL

13061-1055

Unavailable

13064

LEVER-ASSY-KICK,PEDAL

13064-1047

Unavailable

13066

SHAFT-KICK

13066-1026

Unavailable

13070

GUIDE,KICK SPRING

13070-1063

$21.09

13078

RATCHET

13078-1061

Unavailable

59051

IDLE GEAR, KICKSTRTE

59051-1022

Unavailable

59051A

GEAR-SPUR,KICKSTARTE

59051-1051

$138.54

92015

NUT,12MM

92015-1001

Unavailable

92022

WASHER,15.2X20X1

92022-1019

$5.23

92022A

WASHER,20.5X25.5X0.5

92022-252

$6.22

92022B

WASHER,12.3X20X0.5

92022-269

$1.25

92022C

WASHER,18.3X22X0.5

92022-271

$5.52

92022D

WASHER,16.8X22X0.5

92022-315

$6.22

92033

RING-SNAP,18MM

92033-029

$9.82

92055

"O" RING,11.5MM

92055-072

Unavailable

92081

SPRING,KICK PEDAL

92081-020

$4.26

92081A

SPRING,RATCHET

92081-122

$8.79

92081B

SPRING,KICKSTARTER

92081-1253

Unavailable

290

SCREW, 8X16

290Q0816

$4.58

480

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

480A

CIRCLIP-TYPE-C,18MM

480J1800

$1.28

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.73

600

BALL-STEEL,1/4

600A0800

$0.62

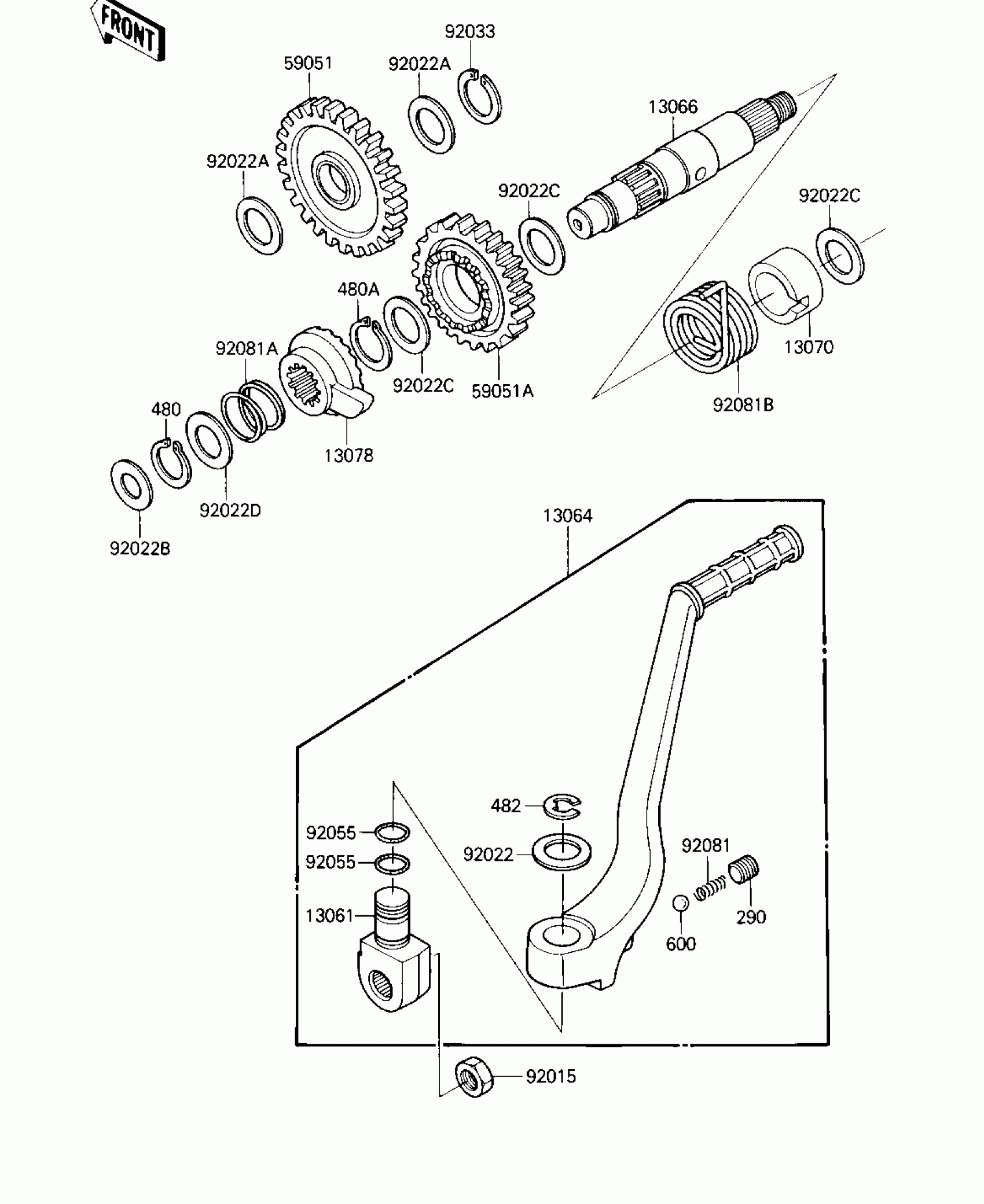

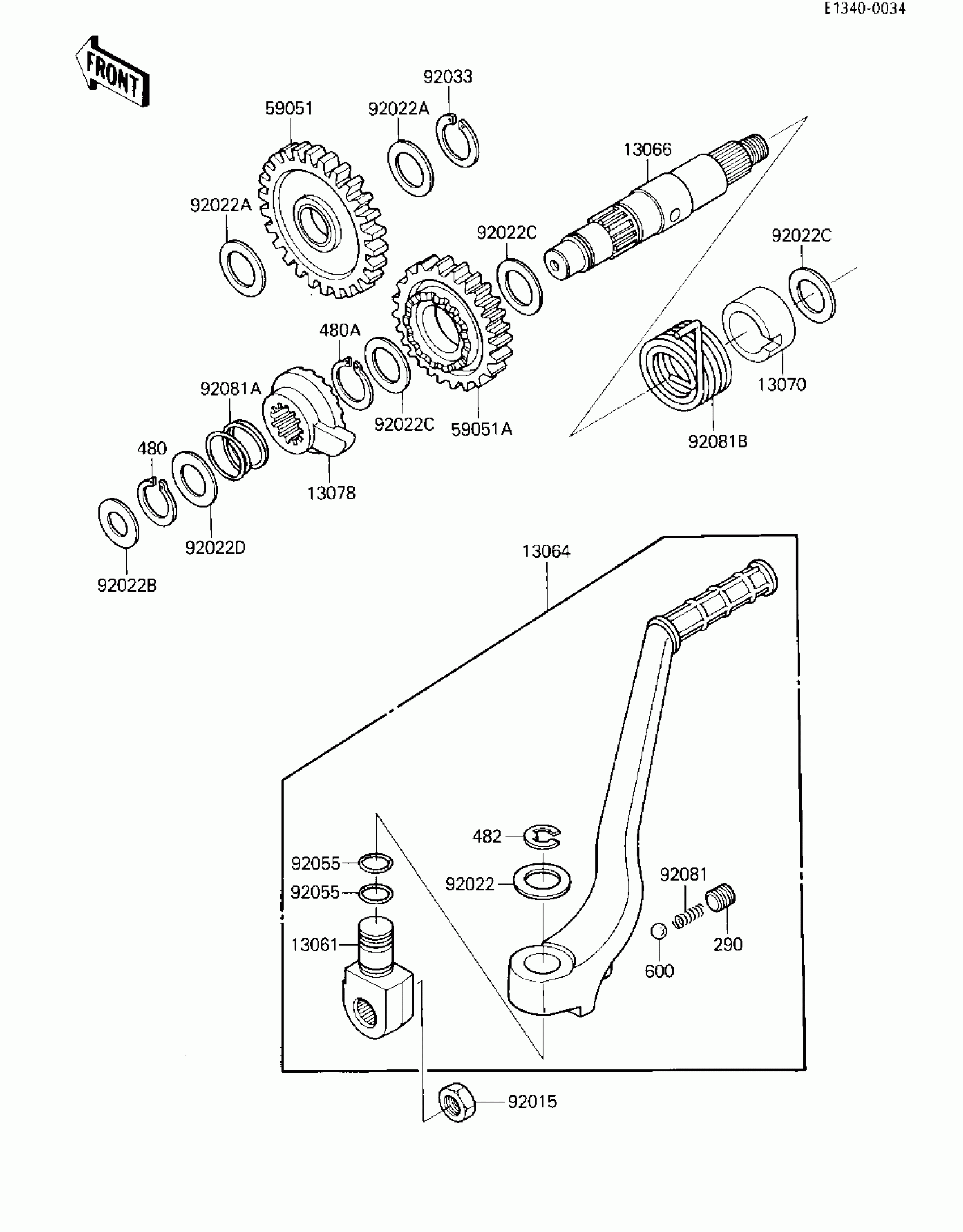

Kawasaki Tecate KICKSTARTER MECHANISM Diagram

BOSS,KICK PEDAL

LEVER-ASSY-KICK,PEDAL

SHAFT-KICK

GUIDE,KICK SPRING

RATCHET

IDLE GEAR, KICKSTRTE

GEAR-SPUR,KICKSTARTE

NUT,12MM

WASHER,15.2X20X1

WASHER,20.5X25.5X0.5

WASHER,12.3X20X0.5

WASHER,18.3X22X0.5

WASHER,16.8X22X0.5

RING-SNAP,18MM

"O" RING,11.5MM

SPRING,KICK PEDAL

SPRING,RATCHET

SPRING,KICKSTARTER

SCREW, 8X16

CIRCLIP-TYPE-C,16MM

CIRCLIP-TYPE-C,18MM

CIRCLIP-TYPE-E,10MM

BALL-STEEL,1/4
