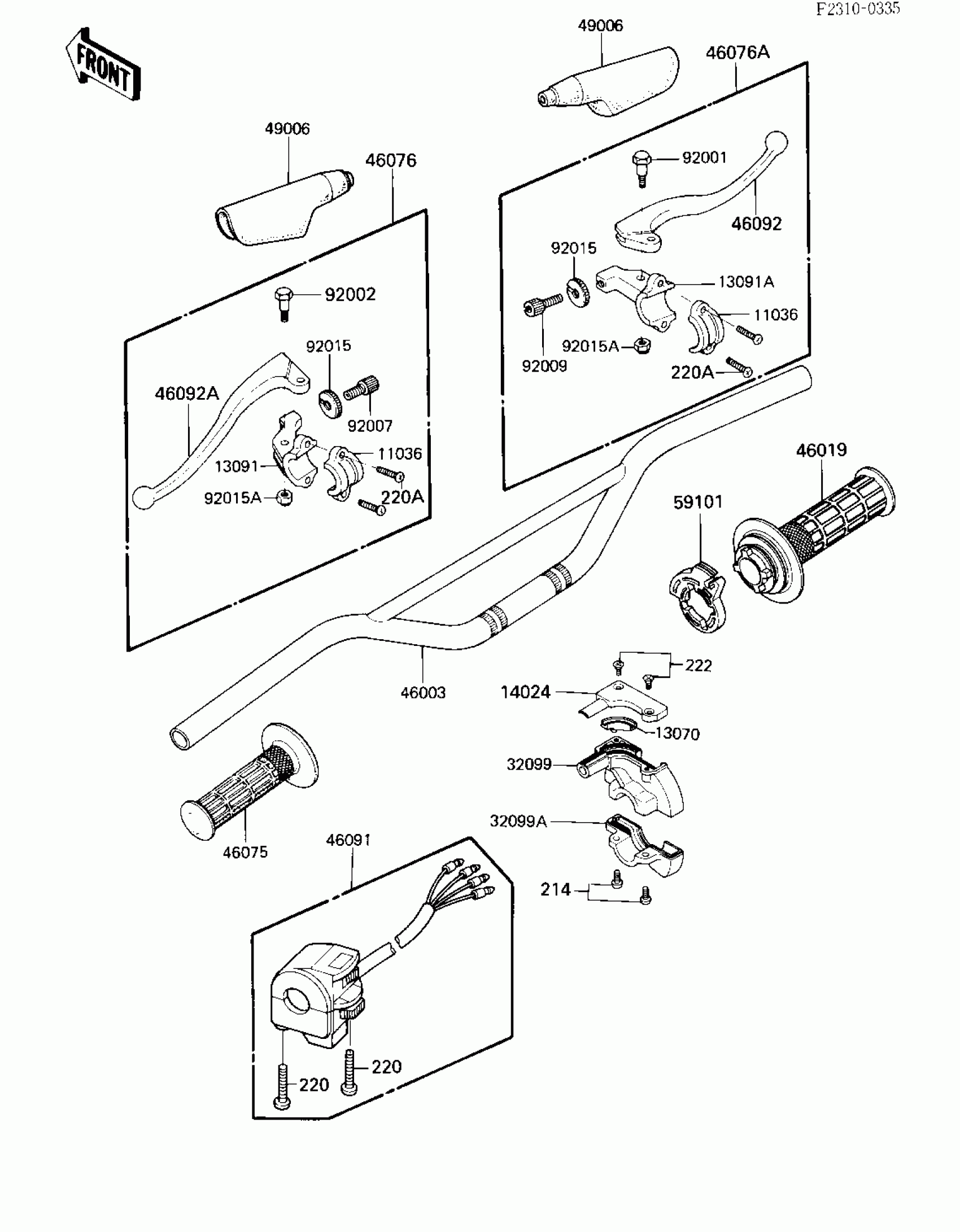

Kawasaki Tecate HANDLEBAR ('84 A1) Diagram
#
Description
Price
11036
BRACKET-A,LEVER HOLDER
11036-1297
Unavailable
13070
GUIDE,THROTTLE
13070-1074
Unavailable
13091
HOLDER,CLUTCH LEVER
13091-1131
$46.92
13091A
HOLDER,BRAKE LEVER
13091-1135
Unavailable
14024
COVER,THROTTLE CASE UPP
14025-1646
$9.36
32099
CASE,THROTTLE UPP
32099-1036
$35.36
32099A
CASE,THROTTLE LWR
32099-1044
Unavailable
46003
HANDLE
46003-4009
$32.44
46019
GRIP-ASSY,THROTTLE
46019-1054
$35.69
46075
GRIP,LH
46075-1024
$25.66
46076
LEVER-ASSY-GRIP,CLUTCH
46076-1118
$45.35
46076A
LEVER-ASSY-GRIP
46076-1120
Unavailable
46091
HOUSING-ASSY-CONTROL,
46091-1392
$152.42
46092
LEVER-GRIP,BRAKE
46092-1109
Unavailable
46092A
LEVER-GRIP,CLUTCH
46092-1110
$26.28
49006
BOOT,LEVER HOLDER
49006-1017
$18.72
59101
REEL,THROTTLE
59101-1110
$11.27
92001
BOLT,LEVER SET
92001-1757
Unavailable
92002
BOLT,LEVER SET
92002-1150
$7.62
92007
SCREW,CABLE ADJUST
46055-010
$28.86
92009
SCREW,CABLE ADJUST,8MM
46055-009
$19.07
92015
NUT,CABLE ADJUST
46056-006
$8.94
92015A
NUT,LOCK,6MM
92019-008
$4.26
214
SCREW-PAN-CROS,5X18
220C0518
$3.43
220
SCREW-PAN-CROS
220B0535
$3.70
220A
SCREW-PAN-CROS
220C0514
$1.81
222
SCREW-CSK-RD-CROS,4X12
222E0412
$2.63
