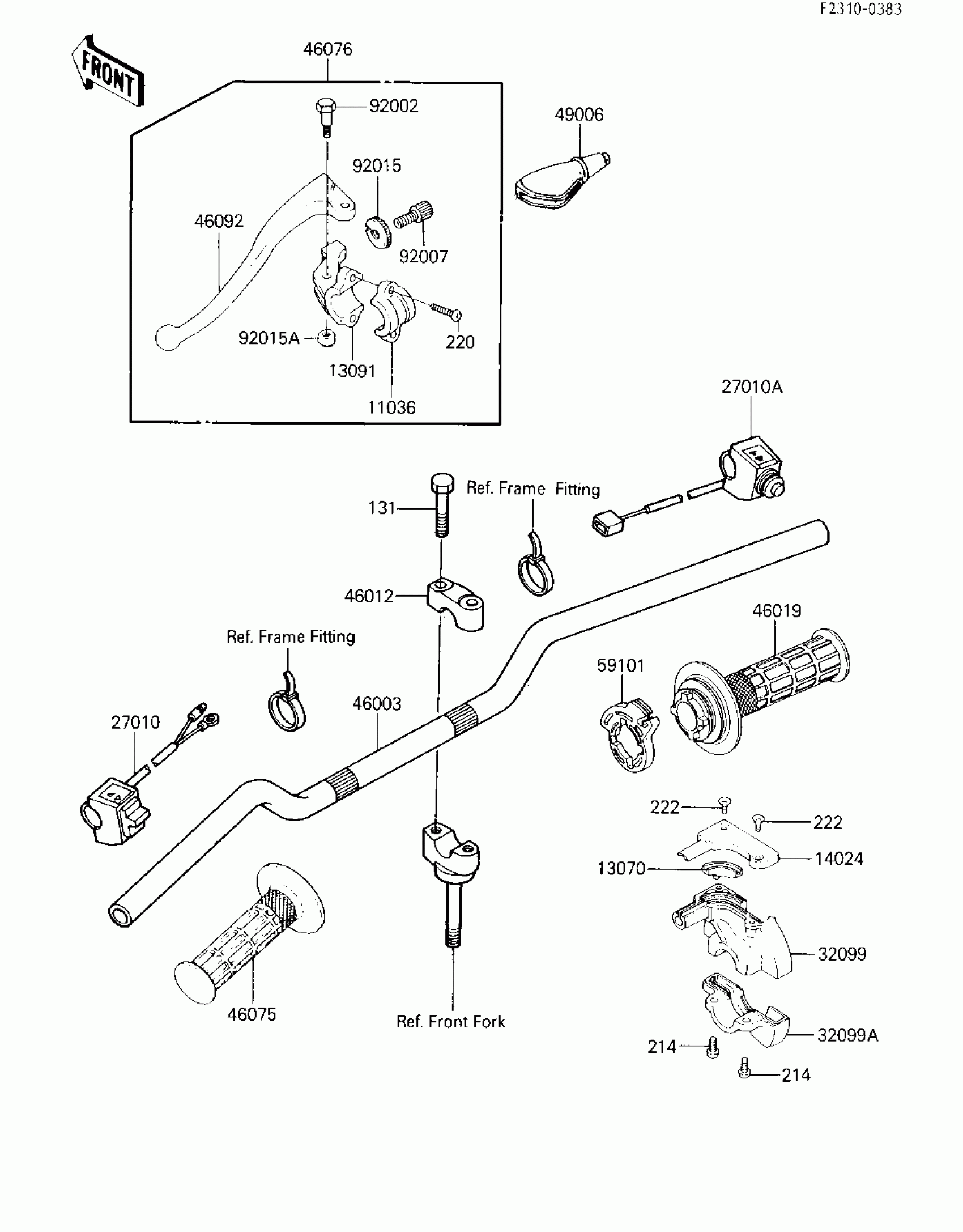

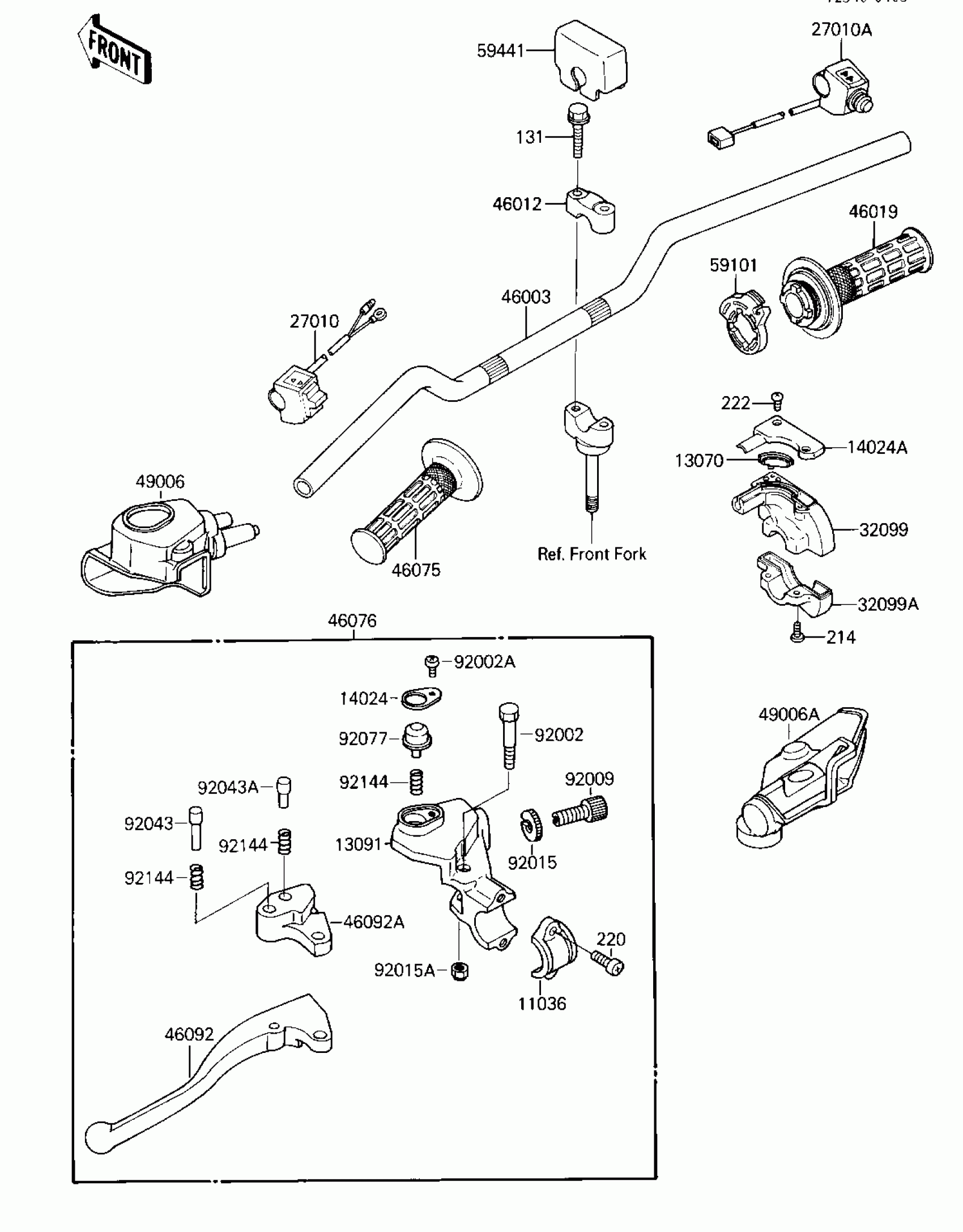

Kawasaki Tecate HANDLEBAR Diagram
#
Description
Price
11036
BRACKET-A,LEVER HOLDER
11036-1297
Unavailable
13070
GUIDE,THROTTLE
13070-1074
Unavailable
13091
HOLDER,LEVER
13091-1456
$46.96
14024
COVER,PARKING LEVER
14024-1351
$9.95
14024A
COVER,THROTTLE CASE UPP
14025-1646
$9.36
27010
SWITCH,ENGINE STOP
27010-1194
Unavailable
27010A
SWITCH,LIGHITING
27010-1195
Unavailable
32099
CASE,THROTTLE UPP
32099-1036
$35.36
32099A
CASE,THROTTLE LWR
32099-1044
Unavailable
46003
HANDLE-BAR
46003-1245
$47.85
46012
HOLDER-HANDLE,UPP
46012-1119
$33.90
46019
GRIP-ASSY,THROTTLE
46019-1054
$35.69
46075
GRIP,LH
46075-1024
$25.66
46076
LEVER-ASSY-GRIP,LH
46076-1137
$119.32
46092
LEVER-GRIP,CLUTCH
46092-1137
$20.11
46092A
LEVER-GRIP,PARKING
46092-1138
$12.99
49006
BOOT,LH
49006-1197
$17.80
49006A
BOOT,RH
49006-1198
Unavailable
59101
REEL,THROTTLE
59101-1110
$11.27
59441
COVER-HANDLE
59441-1075
Unavailable
92002
BOLT,LEVER SET
92002-1833
$7.58
92002A
BOLT,TAPPING
92002-1834
$3.86
92009
SCREW,CABLE ADJUST,8MM
46055-009
$19.07
92015
NUT,CABLE ADJUST
46056-006
$8.94
92015A
NUT,LOCK,6MM
92019-008
$4.26
92043
PIN,5X15
92043-1341
$9.64
92043A
PIN,5X11
92043-1342
$9.18
92077
KNOB,PARKING LEVER
92077-1076
$8.53
92144
SPRING
92144-1058
$7.51
131
BOLT-FLANGED,8X30
131G0830
Unavailable
214
SCREW-PAN-CROS,5X18
220C0518
$3.43
220
SCREW-PAN-CROS
220C0514
$1.81
222
SCREW-CSK-RD-CROS,4X12
222E0412
$2.63
