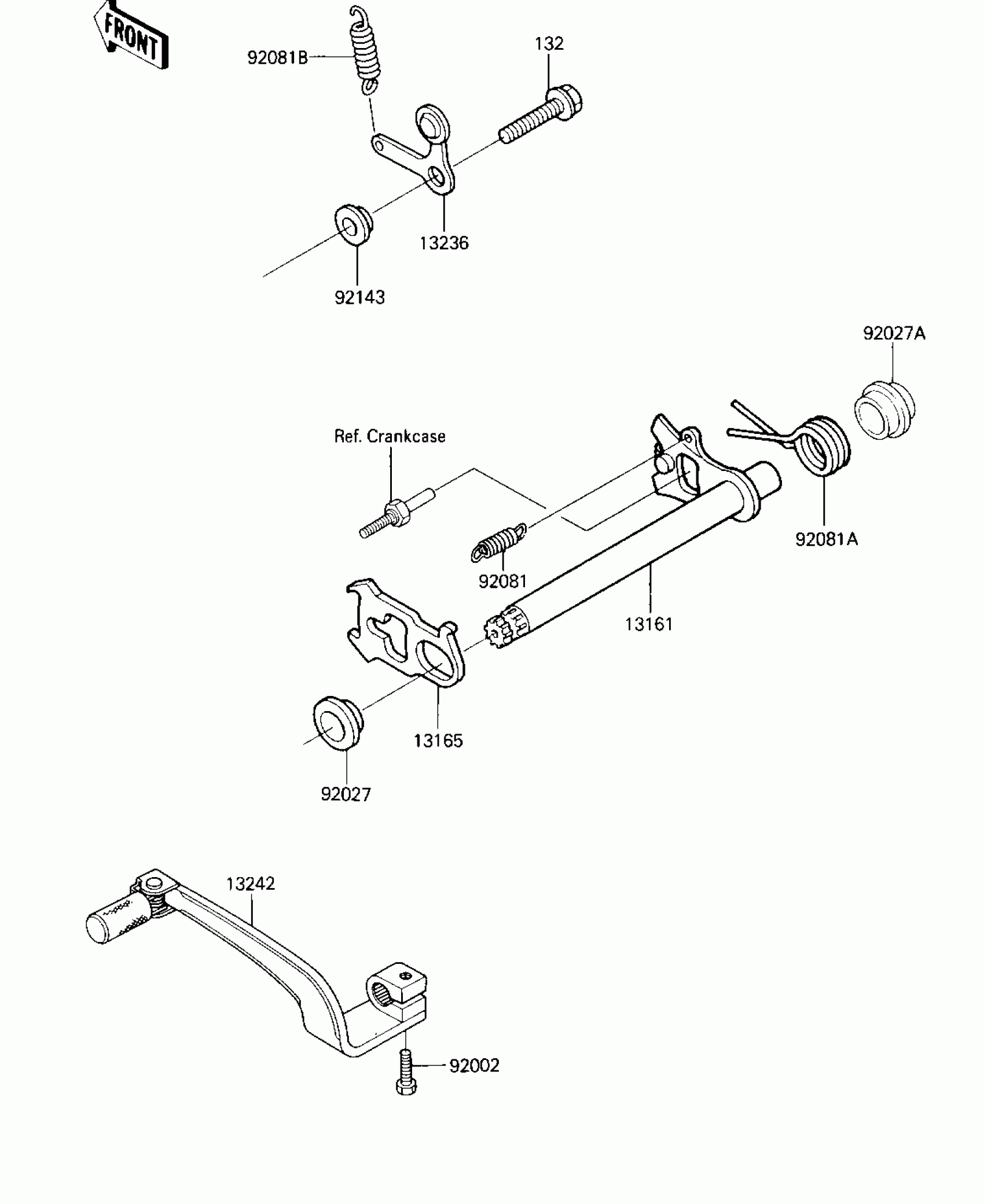

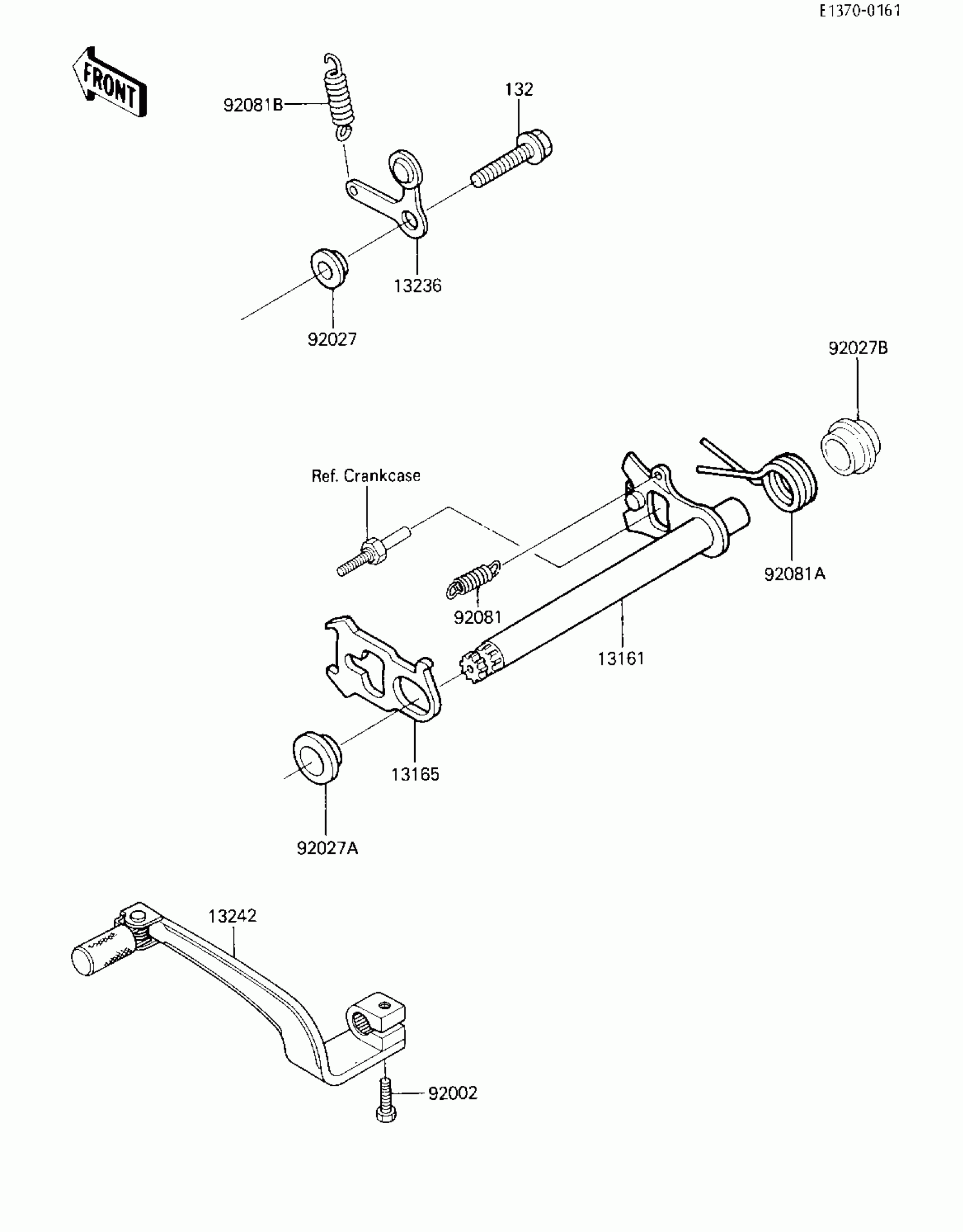

Kawasaki Tecate GEAR CHANGE MECHANISM Diagram

Description

Price

13161

LEVER-COMP-CHANGE SH

13161-1109

Unavailable

13165

PAWL,CHANGE LEVER

13165-1119

Unavailable

13236

LEVER,CHANGE DRUM

13236-1021

Unavailable

13242

LEVER-ASSY-CHANGE

13242-1220

Unavailable

92002

BOLT-FLANGED,6X25

130P0625

$4.15

92027

COLLAR

92027-1248

Unavailable

92027A

COLLAR,CHANGE SHAFT,L=5.5

92027-1512

Unavailable

92027B

COLLAR,RETURN SPRING

92027-1682

Unavailable

92081

SPRING,CHANGE LEVER

92081-076

$5.46

92081A

SPRING,CHANGE SHAFT RETURN

92081-1716

$9.82

92081B

SPRING,CHANGE DRUM LEVER

92083-012

$4.65

132

BOLT-FLANGED-SMALL,6X16

132G0616

$1.47
