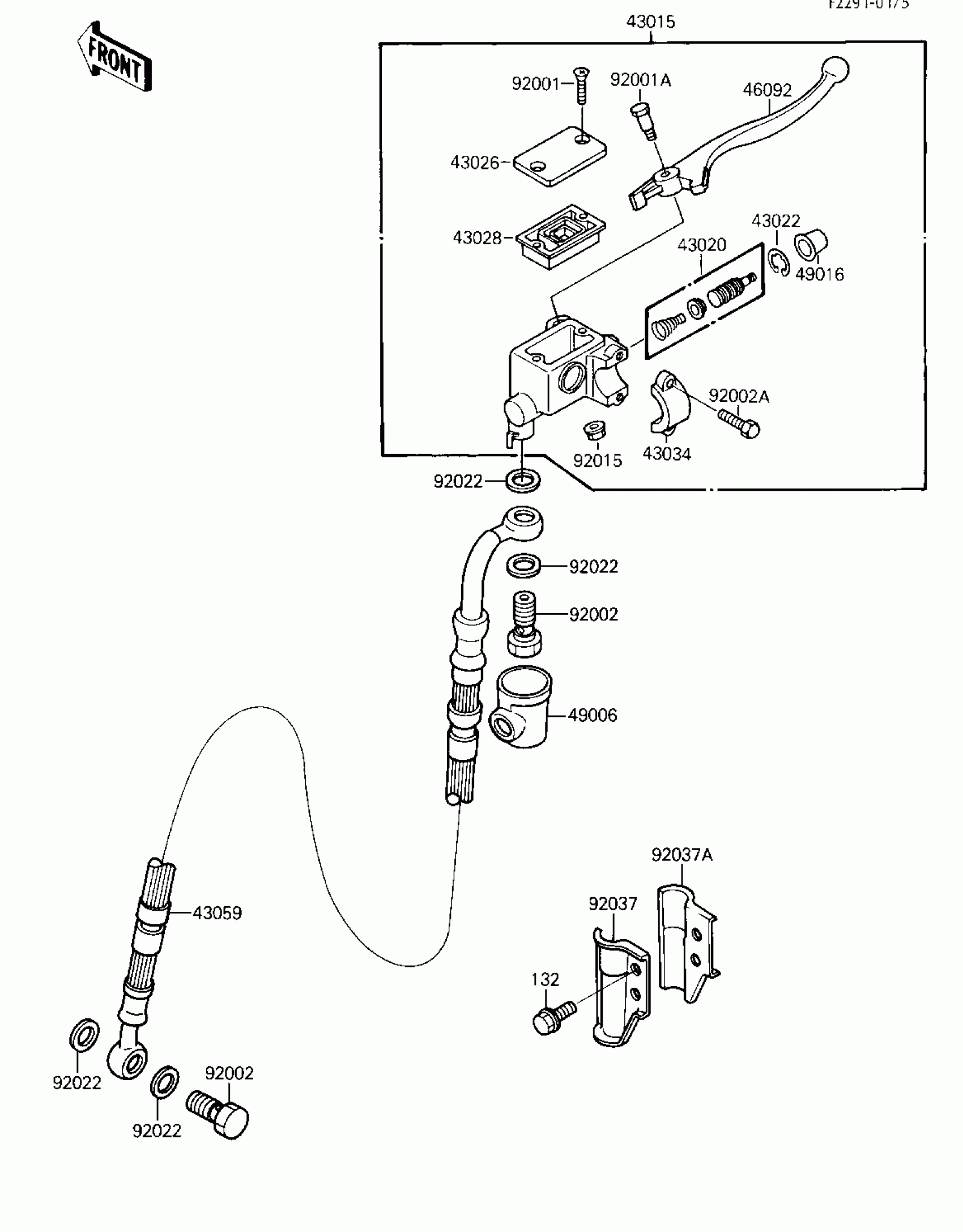

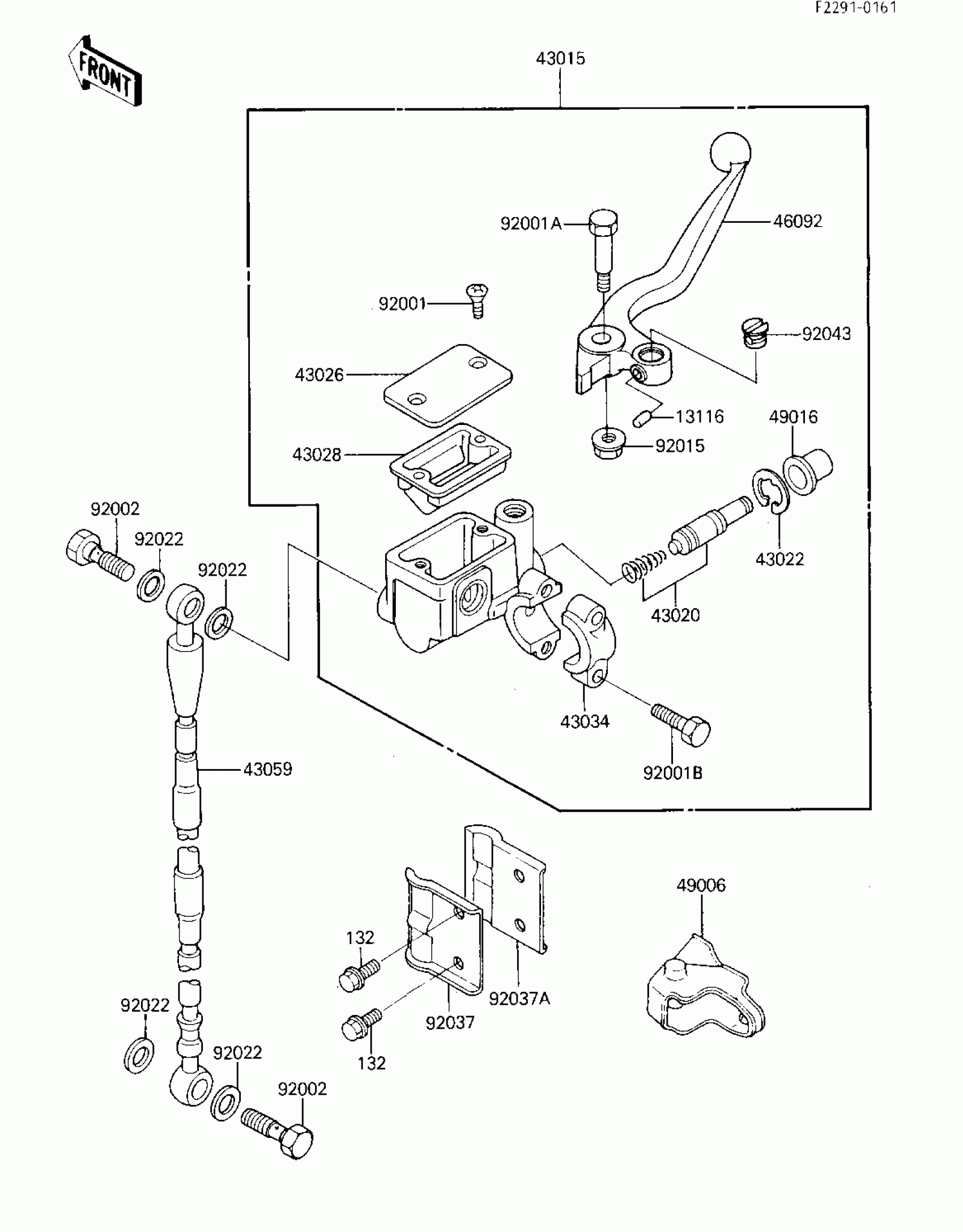

Kawasaki Tecate FRONT MASTER CYLINDER Diagram

Description

Price

43015

CYLINDER-ASSY-MASTER,

43015-1325

$347.96

43020

PISTON-COMP-BRAKE

43020-1098

$51.24

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1022

$51.90

43028

DIAPHRAGM

43028-1061

$16.18

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$19.45

43059

HOSE-BRAKE,FR

43059-1396

$155.61

46092

LEVER-GRIP,FRONT BRAKE

46092-1136

$27.24

49006

BOOT,BRAKE LEVER

49006-1208

$12.19

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92001

SCREW,5MM,BLACK

92001-1727

$4.11

92001A

BOLT,FRONT BRAKE LEVER

92001-1728

$14.23

92002

BOLT,OIL,L=23

92002-1888

$5.48

92002A

BOLT

92002-1860

$5.52

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92037

CLAMP,BRAKE HOSE

92037-1849

$4.82

92037A

CLAMP,BRAKE HOSE

92037-1850

$5.27

132

BOLT-FLANGED-SMALL

132G0614

$1.42
