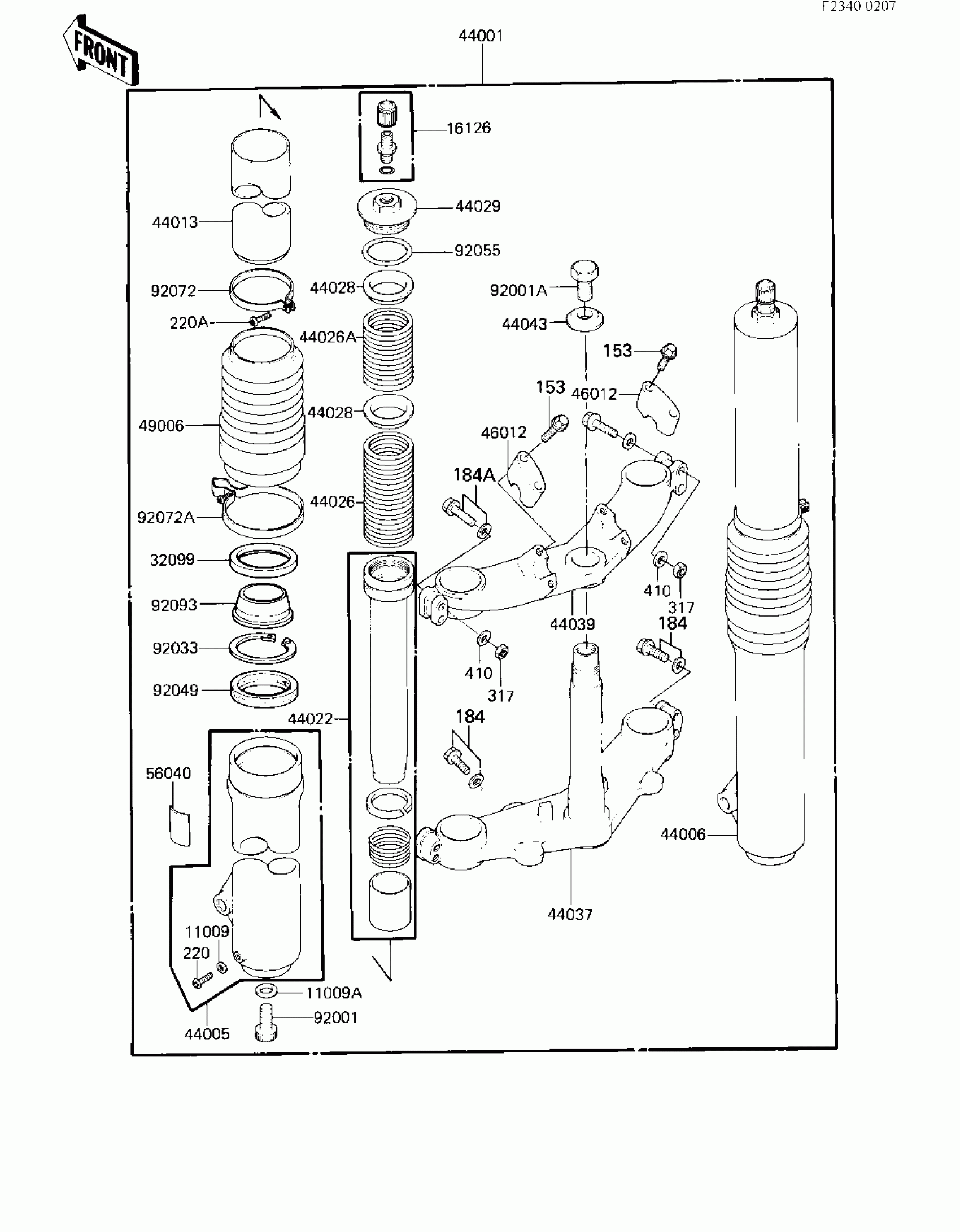

Kawasaki Tecate FRONT FORK ('84 A1) Diagram
#
Description
Price
11009
GASKET,FORK DRAIN PLUG
44045-002
$5.18
11009A
GASKET
44045-057
$4.86
16126
VALVE,AIR FRONT FORK
16126-1048
Unavailable
32099
CASE,DUST SHIELD
32099-1012
Unavailable
44001
FORK-FRONT,GOLD
44001-4012-8T
$1,452.87
44005
PIPE-LEFT FORK OUTER
44005-1219-8T
$306.16
44006
PIPE-RIGHT FORK OUTER
44006-1219-8T
$306.16
44013
PIPE-FORK INNER
44013-4003
$282.80
44022
CYLINDER-FORK
44022-4003
$87.98
44026
SPRING-FRONT FORK,LWR
44026-4004
$26.68
44026A
SPRING-FRONT FORK,UPP
44026-4005
$15.87
44028
GUIDE-FORK SPRING
44028-029
$6.00
44029
SEAT-FORK SPRING
44029-4002
$42.80
44037
HOLDER-FORK UNDER
44037-4005
$503.64
44039
HOLDER-FORK UPPER
44039-4008
$405.04
44043
WASHER
44043-052
$8.01
46012
HOLDER-HANDLE
46012-1014
$12.13
49006
BOOTS,FORK
49006-1009
$72.98
56040
LABEL-WARNING
56040-1002
Unavailable
92001
BOLT,SOCKET,FORK CYLINDER
44041-040
$6.57
92001A
BOLT,FORK TOP
44041-065
Unavailable
92033
RING-SNAP,FORK OIL
92033-1100
$14.94
92049
OIL,SEAL,FORK OUTER
92049-1009
$23.21
92055
RING-O,FORK TOP
92055-1095
Unavailable
92072
BAND,BOOT
92072-1008
$10.93
92072A
BAND,BOOTS L.H.
92072-1011
Unavailable
92093
DUST SHIELD,FORK OUT
92093-1036
Unavailable
153
183G0840 (Canada)
153G0840
Unavailable
184
BOLT-UPSET-WP-SMALL
184G0840
$3.55
184A
BOLT-UPSET-WP-SMALL
184G0855
$3.55
220
SCREW PAN HEAD 4X8
220B0408
$0.67
220A
SCREW PAN HEAD 4X8
220B0408
$0.67
317
NUT-HEX-SMALL,8MM
317G0800
$1.63
410
WASHER PLAIN 8MM
410B0800
$0.93
