1984 Kawasaki Tecate Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1984 Kawasaki Tecate, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

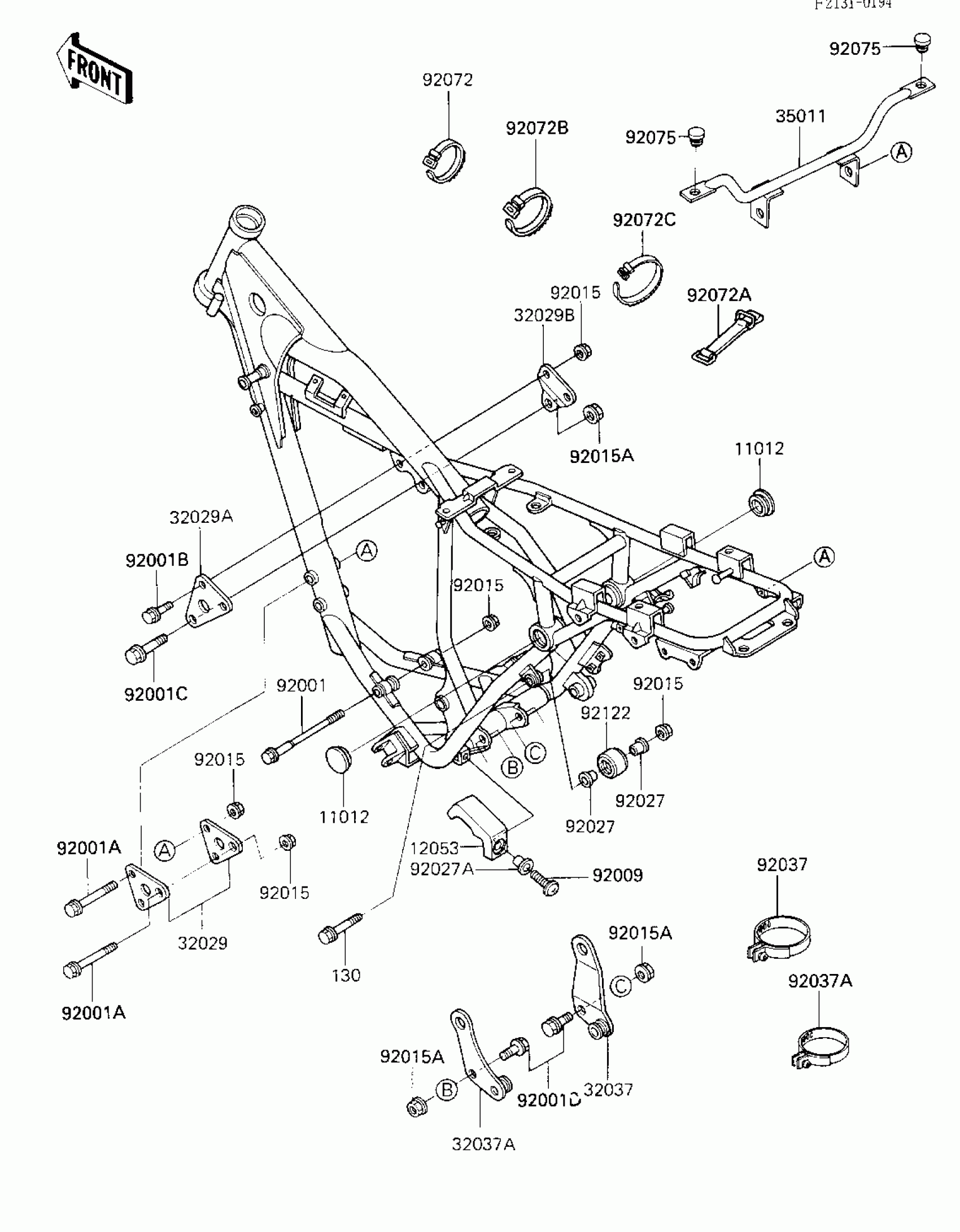

1984 Kawasaki Tecate Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,UNI-TRAK

11012-1211

1
Out of stock

12053

GUIDE-CHAIN,BLACK

12053-4004

1
Out of stock

32029

BRACKET,ENGINE,FR

32029-4034

1
Out of stock

32029A

BRACKET,ENGINE,UPP,LH

32029-4035

1
Out of stock

32029B

BRACKET,ENGINE,UPP,RH

32029-4036

1
Out of stock

32037

BRACKET-SHOCKABSORBER

32037-4013

1
Out of stock

32037A

BRACKET-SHOCKABSORBER

32037-4014

1
Out of stock

35011

STAY

35011-4005

1
Out of stock

92001

BOLT,8X140

92002-1059

1
Out of stock

92001A

BOLT,FLANGED,8X75,BLA

92001-1642

1
Out of stock

92001B

BOLT,FLANGED,8X25

92001-1691

1
Out of stock

92001C

BOLT,FLANGED,10X50

92001-1692

1
Out of stock

92001D

BOLT,FLANGED,10X22

92001-4034

1
Out of stock

92009

SCREW,6X20

92009-1289

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1415

1
Out of stock

92027

COLLAR,CHAIN GUIDE

92027-1383

1
Out of stock

92027A

COLLAR

92027-194

1
Out of stock

92037

CLAMP

92037-1172

1
Out of stock

92037A

CLAMP

92037-4015

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND

92072-1085

1
Out of stock

92072B

BAND

92072-3505

1
Out of stock

92072C

BAND,L=292.1

92072-3509

1
Out of stock

92075

DAMPER,9X24X14

92075-281

1
Out of stock

92122

ROLLER,CHAIN GUIDE

92122-1021

1
Out of stock

130

BOLT-FLANGED,8X50

130G0850

1
Out of stock
