Find the part on the Fenders diagram for your 1984 Kawasaki Tecate, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

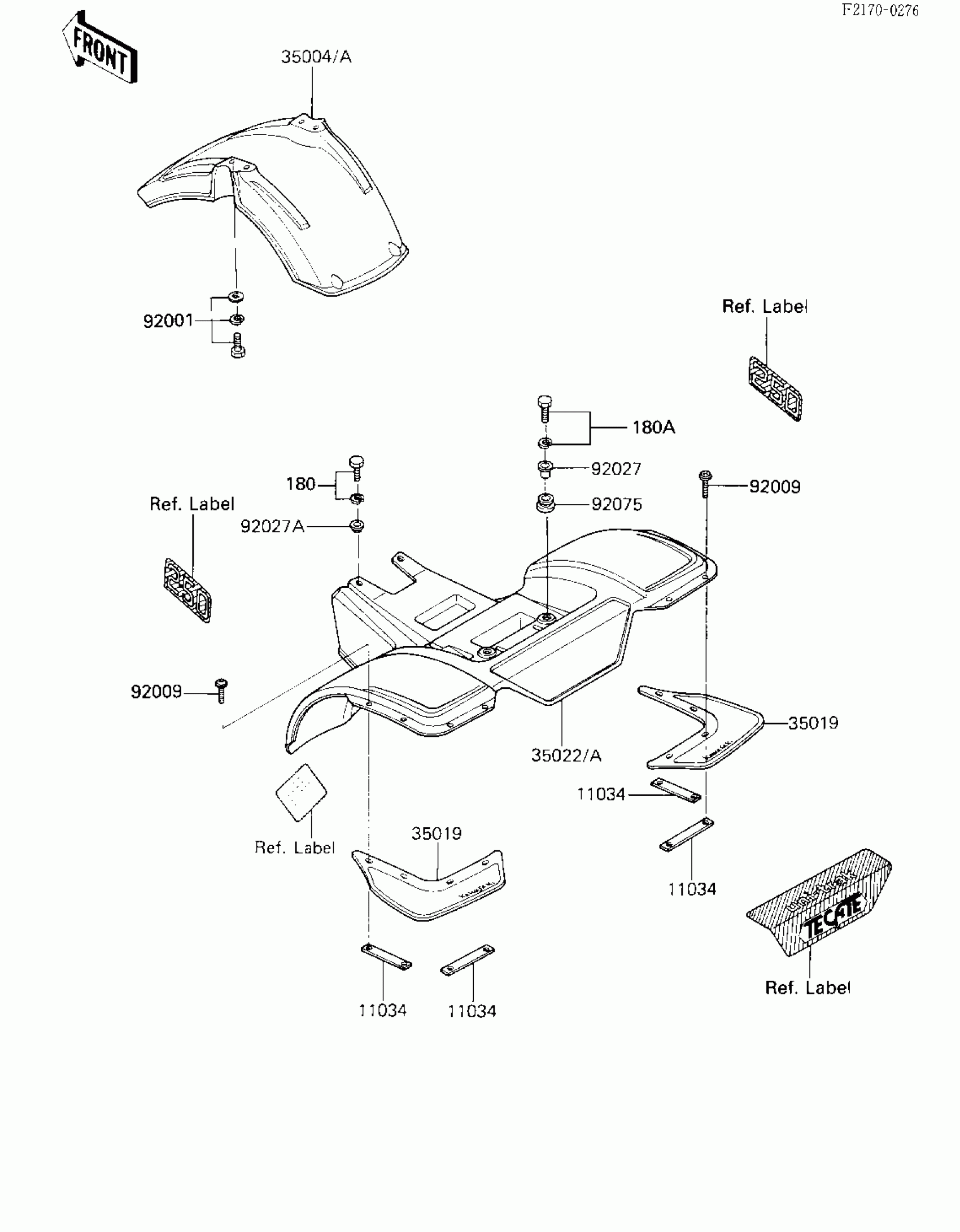

1984 Kawasaki Tecate Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11034

BRACKET,FLAP

11034-4062

1
Out of stock

35004

FENDER-FR,L.GREEN

35004-4008-6W

1
Out of stock

35004A

FENDER-FR,W.F.RED

35004-4008-8S

1
Out of stock

35019

FLAP

35019-4009

1
Out of stock

35022

FENDER-RR,L.GREEN

35022-4006-6W

1
Out of stock

35022A

FENDER-RR,W.F.RED

35022-4006-8S

1
Out of stock

92001

BOLT,W/SP,6X16

92001-1763

1
Out of stock

92009

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92027

COLLAR

92027-194

1
Out of stock

92027A

COLLAR

92027-4020

1
Out of stock

92075

COLLAR

92027-4020

1
Out of stock

180

BOLT-UPSET-WS

180B0614

1
Out of stock

180A

BOLT-UPSET-WS,6X25

180B0625

1
Out of stock
