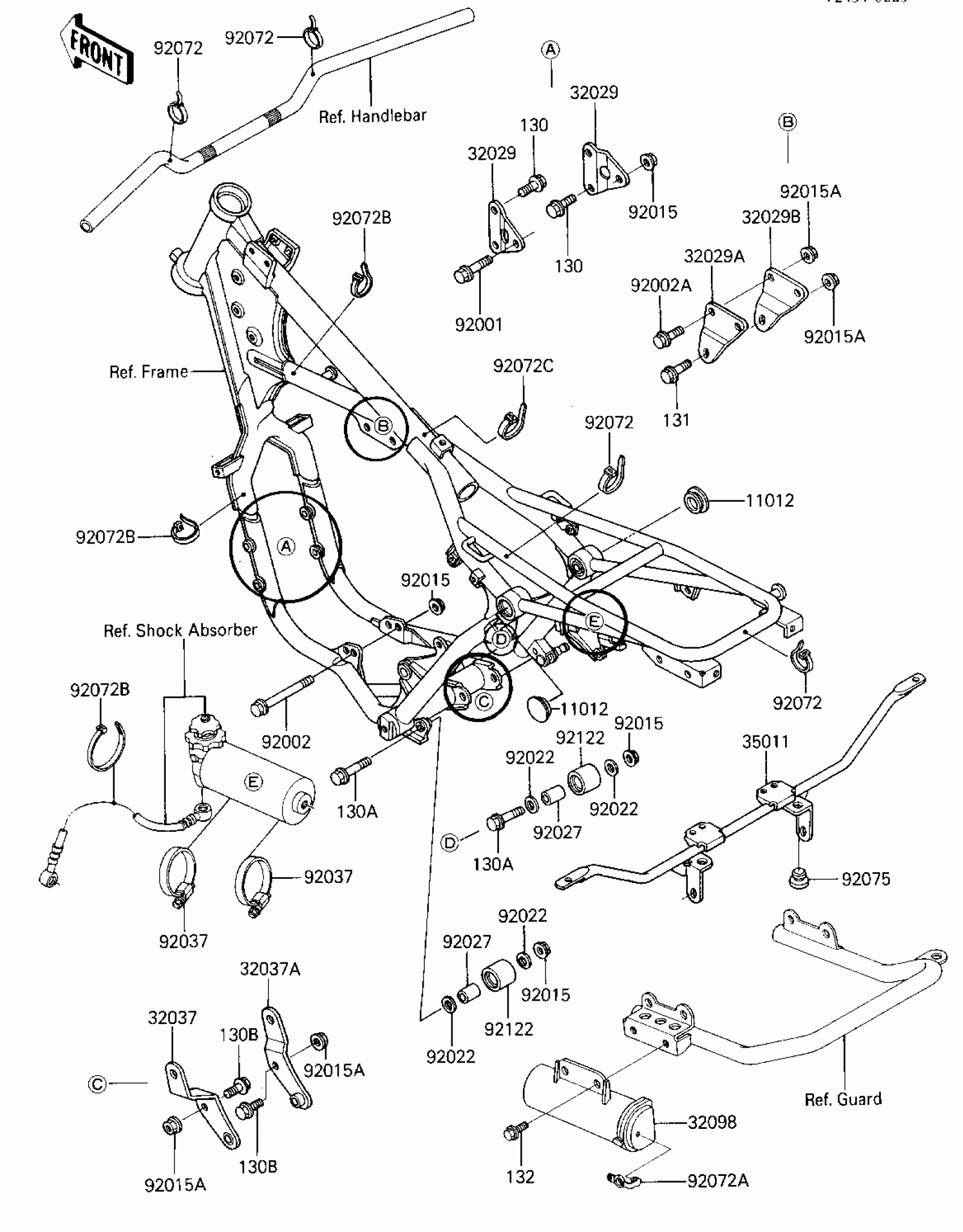

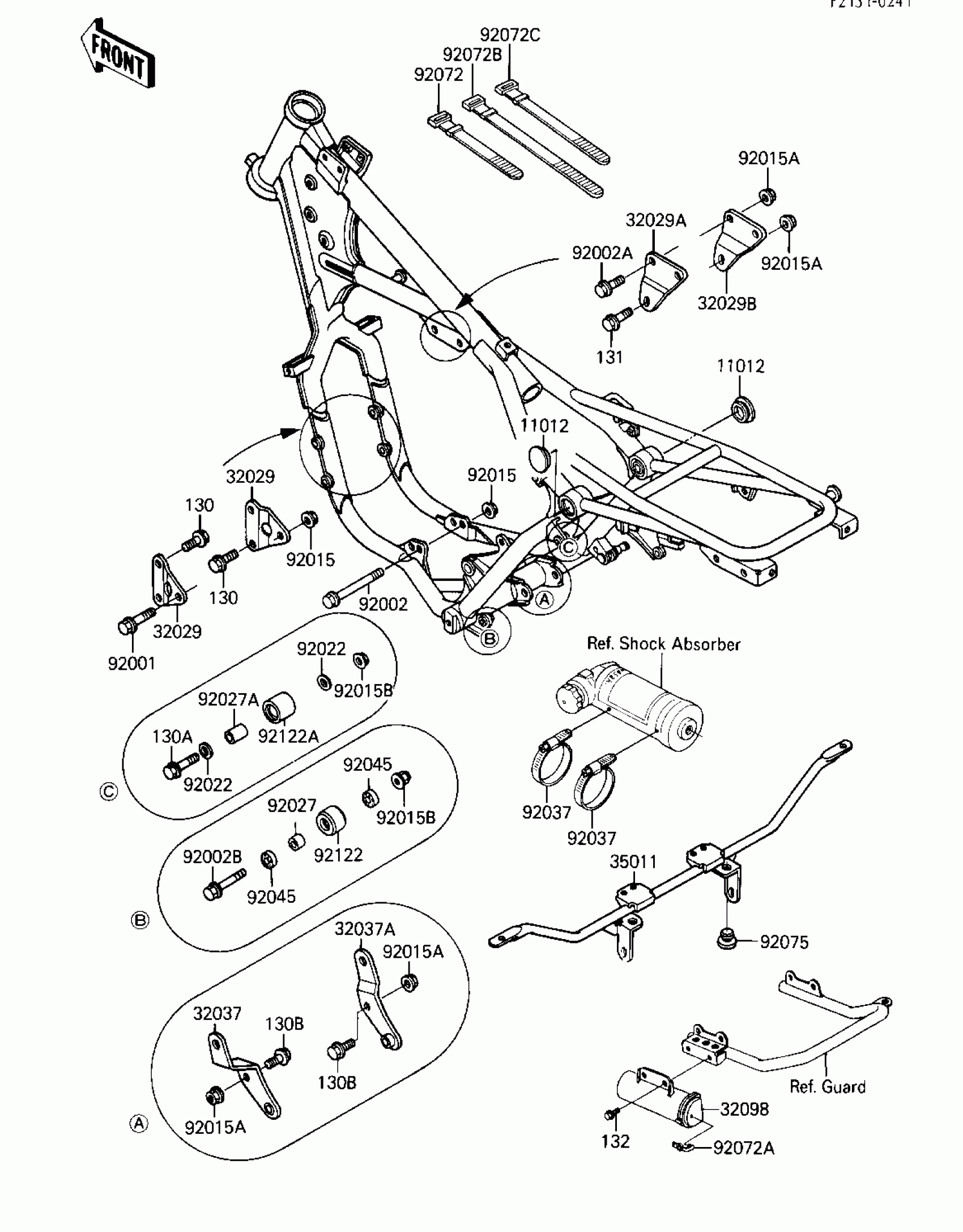

Kawasaki Tecate FRAME FITTINGS Diagram
#
Description
Price
11012
CAP,UNI-TRAK
11012-1211
Unavailable
32029
BRACKET-ENGINE,FR
32029-1438
Unavailable
32029A
BRACKET-ENGINE,LH
32029-1439
$11.95
32029B
BRACKET-ENGINE,RH
32029-1488
$18.42
32037
BRACKET-SHOCKABSORBER
32037-1378
$27.51
32037A
BRACKET-SHOCKABSORBER
32037-1379
$27.75
32098
CASE-TOOL
32098-1016
Unavailable
35011
STAY,RR
35011-1295
$49.06
92001
BOLT,FLANGED,8X75
92002-1481
$9.59
92002
BOLT,FLANGED,8X100
92002-1543
Unavailable
92002A
BOLT
92002-1544
Unavailable
92002B
BOLT,FLANGED,8X52
92002-1857
$4.99
92015
NUT,8MM
92015-1143
$0.65
92015A
NUT,FLANGED,10MM
92015-1415
$4.69
92015B
NUT,8MM
92015-1432
$6.57
92022
WASHER,8.5X22X1.5
92022-1629
$6.15
92027
COLLAR
92027-1081
$9.59
92027A
COLLAR,CHAIN ROLLER
92027-1670
$7.34
92037
CLAMP
92037-509
$5.58
92045
BEARING-BALL,608LLU/2A
92045-1009
$35.22
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,TOOL CASE
92072-1060
Unavailable
92072B
BAND,L-444.5
92072-1211
Unavailable
92072C
BAND
92072-3505
Unavailable
92075
DAMPER,9X24X14
92075-281
$6.22
92122
ROLLER,CHAIN GUIDE
92122-1102
$80.04
92122A
ROLLER,CHAIN GUIDE
92122-1117
Unavailable
130
BOLT-FLANGED,8X25
130G0825
$2.89
130A
BOLT-FLANGED,8X55
130G0855
Unavailable
130B
BOLT-FLANGED,10X20
130P1020
$2.09
131
BOLT-FLANGED,10X55
131G1055
$2.25
132
BOLT-FLANGED-SMALL
132G0816
$4.02
