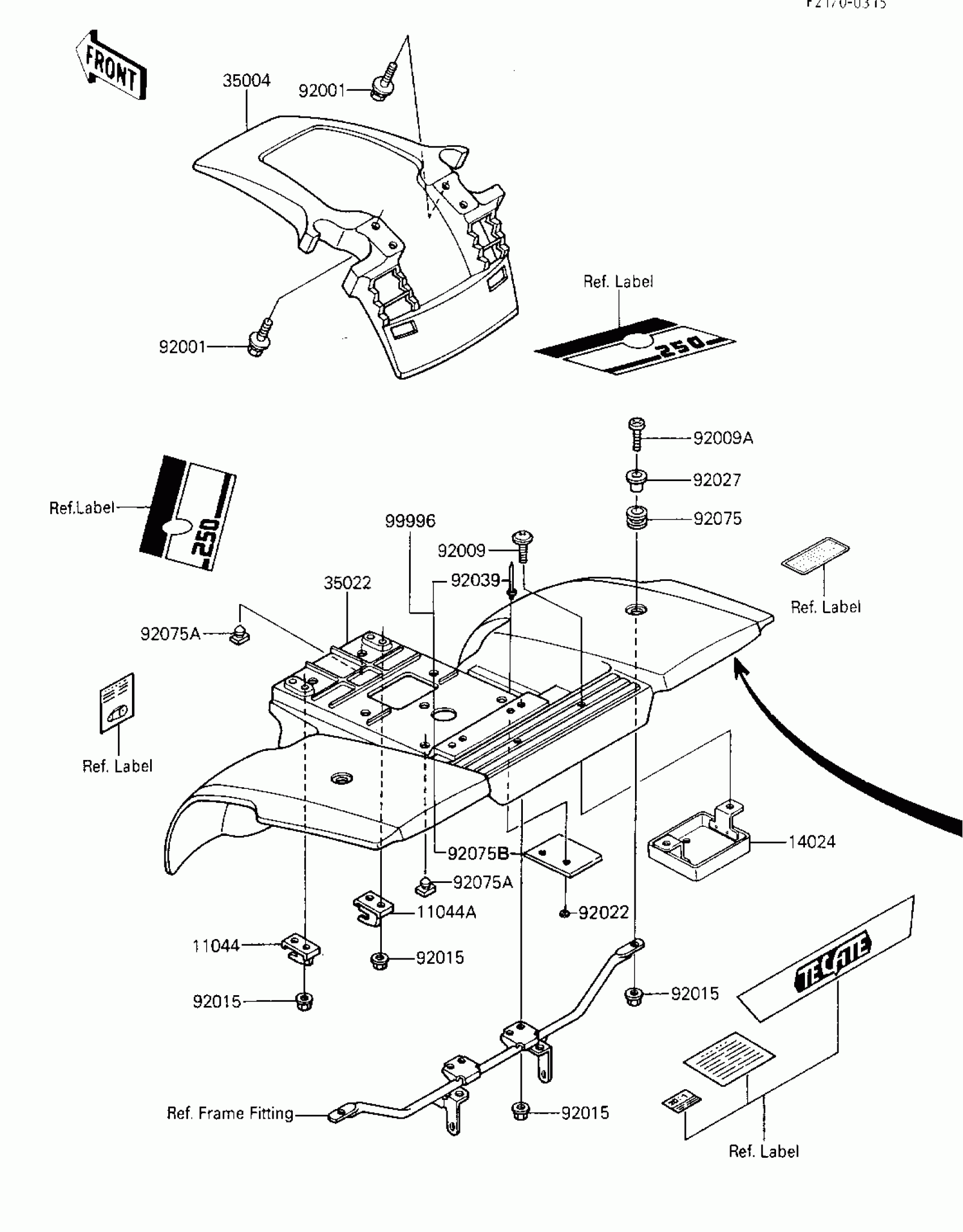

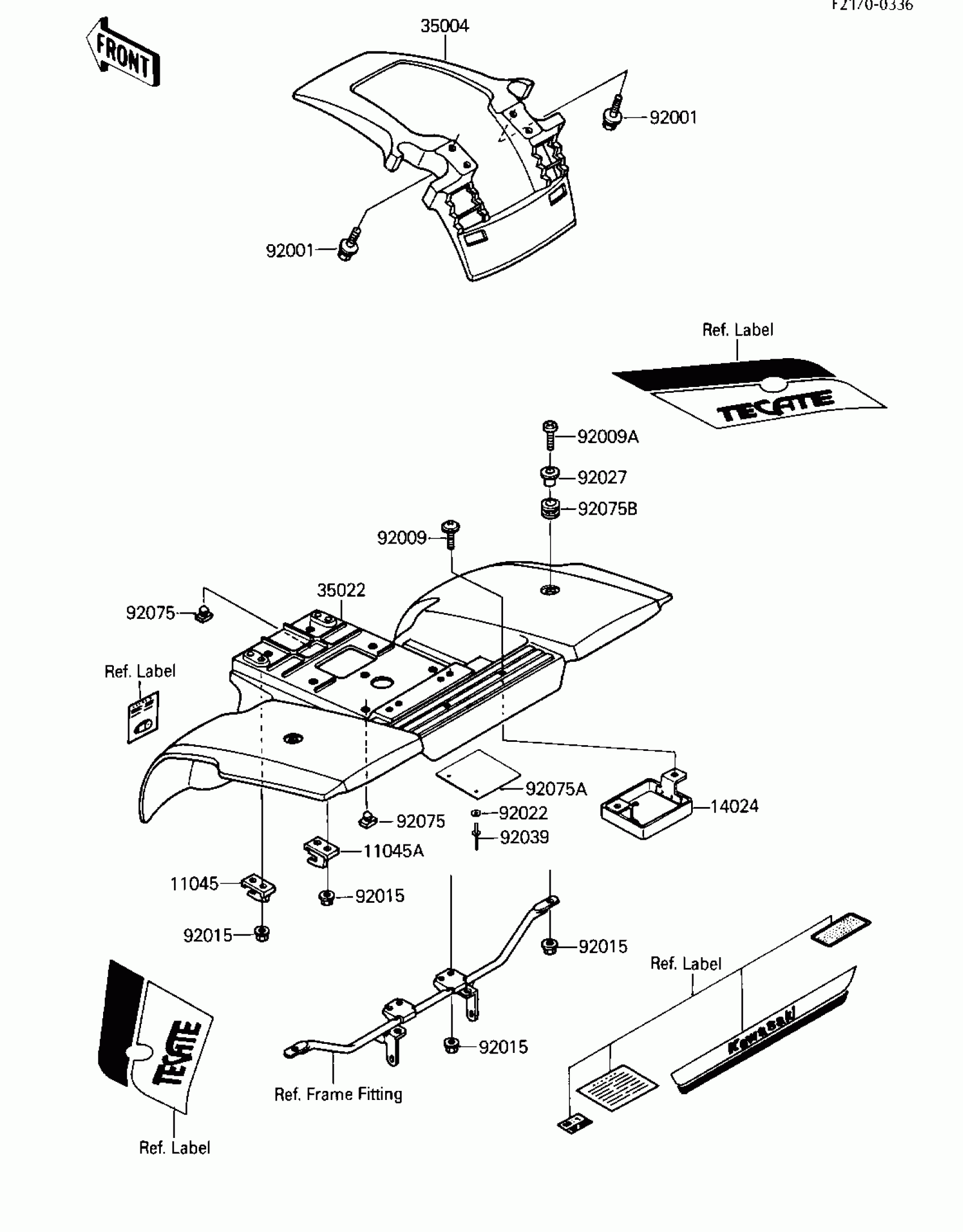

Kawasaki Tecate FENDERS Diagram

Description

Price

11045

BRACKET,SEAT,LH

11045-1379

Unavailable

11045A

BRACKET,SEAT,RH

11045-1380

Unavailable

14024

COVER

14024-1287

Unavailable

35004

FENDER-FRONT

35004-1181-6W

Unavailable

35022

FENDER-COMP RR L GREN

35022-1230-6W

Unavailable

92001

BOLT,W/SP,6X16

92001-1763

$4.50

92009

SCREW,6X14,WHITE

92009-1287

$2.55

92009A

SCREW,6X22

92009-1347

$6.87

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER

92022-4017

$0.82

92027

COLLAR

92027-1045

$5.52

92039

RIVET,POP

92039-4006

$1.36

92075

DAMPER,SEAT

92075-1153

$5.24

92075A

DAMPER

92075-1868

Unavailable

92075B

DAMPER,CASE

92075-222

$7.34
