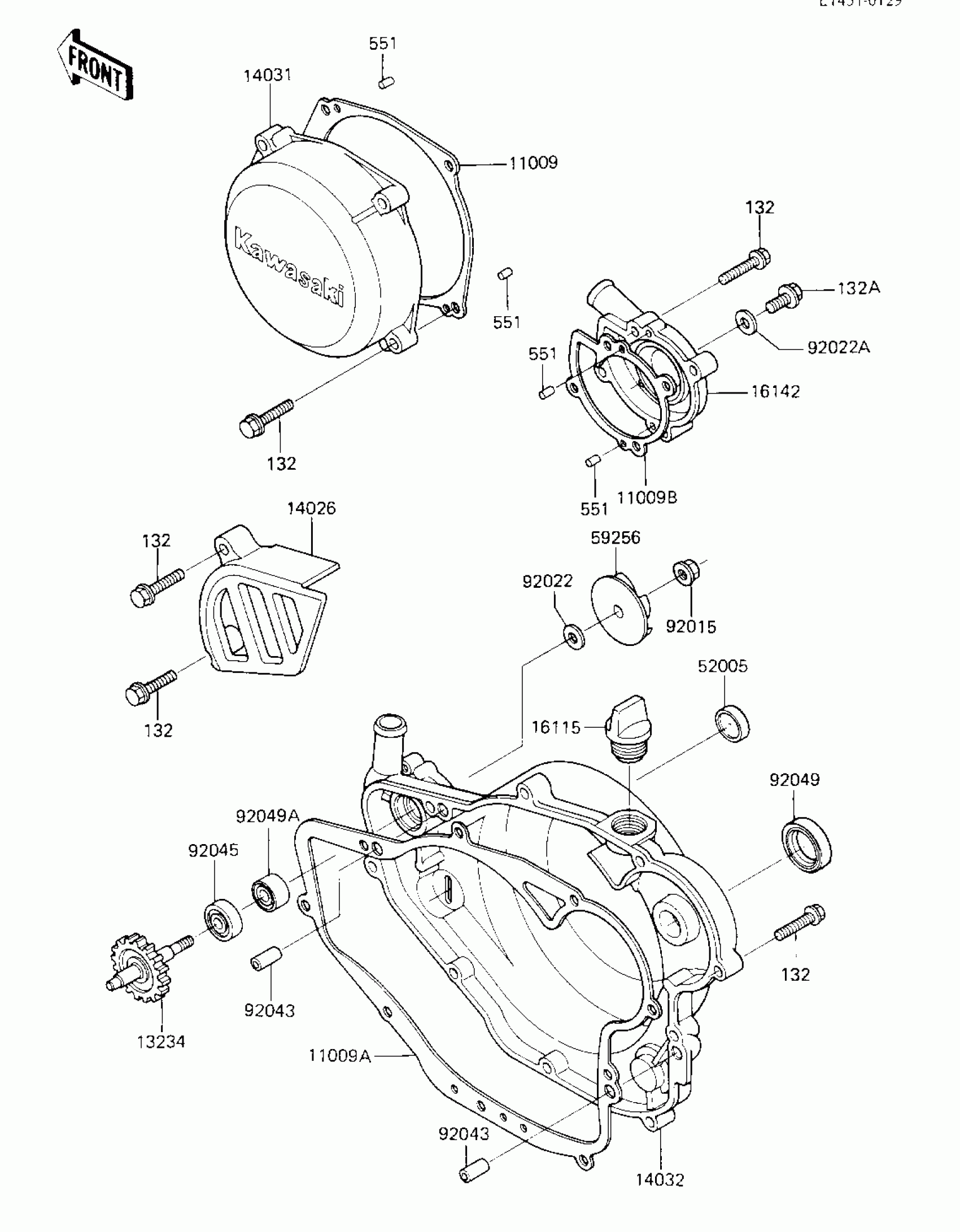

Kawasaki Tecate ENGINE COVERS/WATER PUMP ('84 A1) Diagram

Description

Price

11009

GASKET,GENERATOR COV

11009-1319

Unavailable

11009A

GASKET,CLUTCH COVER

11009-1320

Unavailable

11009B

GASKET,PUMP COVER

11009-1321

Unavailable

13234

SHAFT-COMP,WATER PUMP

13234-1009

Unavailable

14026

COVER-CHAIN

14026-1119

Unavailable

14031

COVER-GENERATOR

14031-1104

Unavailable

14032

COVER-CLUTCH

14032-1094

Unavailable

16115

CAP-OIL FILLER

16115-018

$10.56

16142

COVER-PUMP,WATER

16142-1008

$57.97

52005

GAUGE,OIL LEVEL

52005-1005

$14.76

59256

IMPELLER,WATER PUMP

59256-1002

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6X14X2

92022-1393

Unavailable

92022A

WASHER,8.2X14X1.0

92022-1488

$4.92

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92045

BEARING-BALL

92045-1212

$12.37

92049

SEAL-OIL,SB18307

92049-013

$14.36

92049A

SEAL-OIL,MHSD8X18X10J-1

92049-1366

$17.95

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

132A

BOLT-FLANGED-SMALL

132G0810

$4.02

551

PIN-DOWEL,4X8

551A0408

$0.78
