Partiron

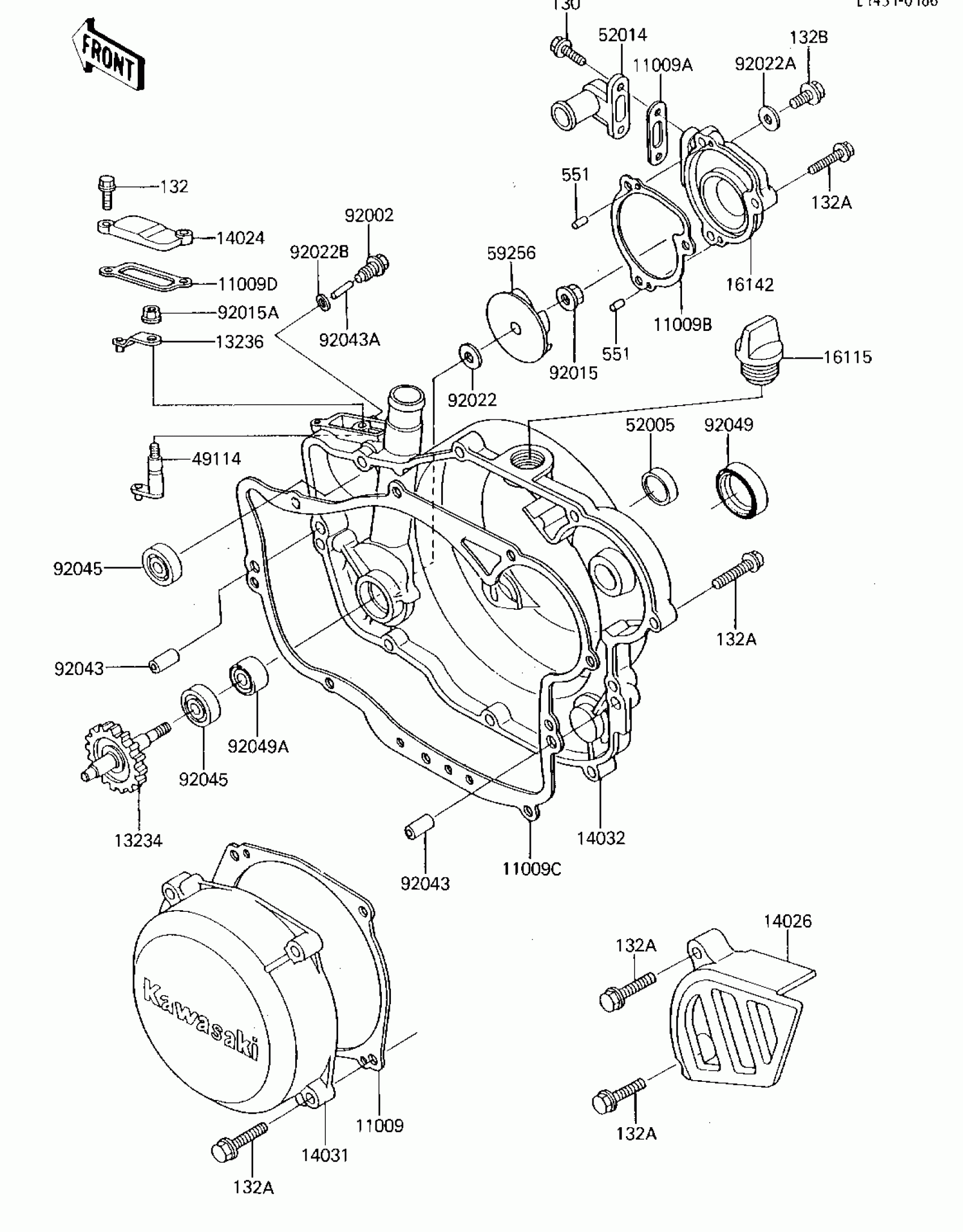

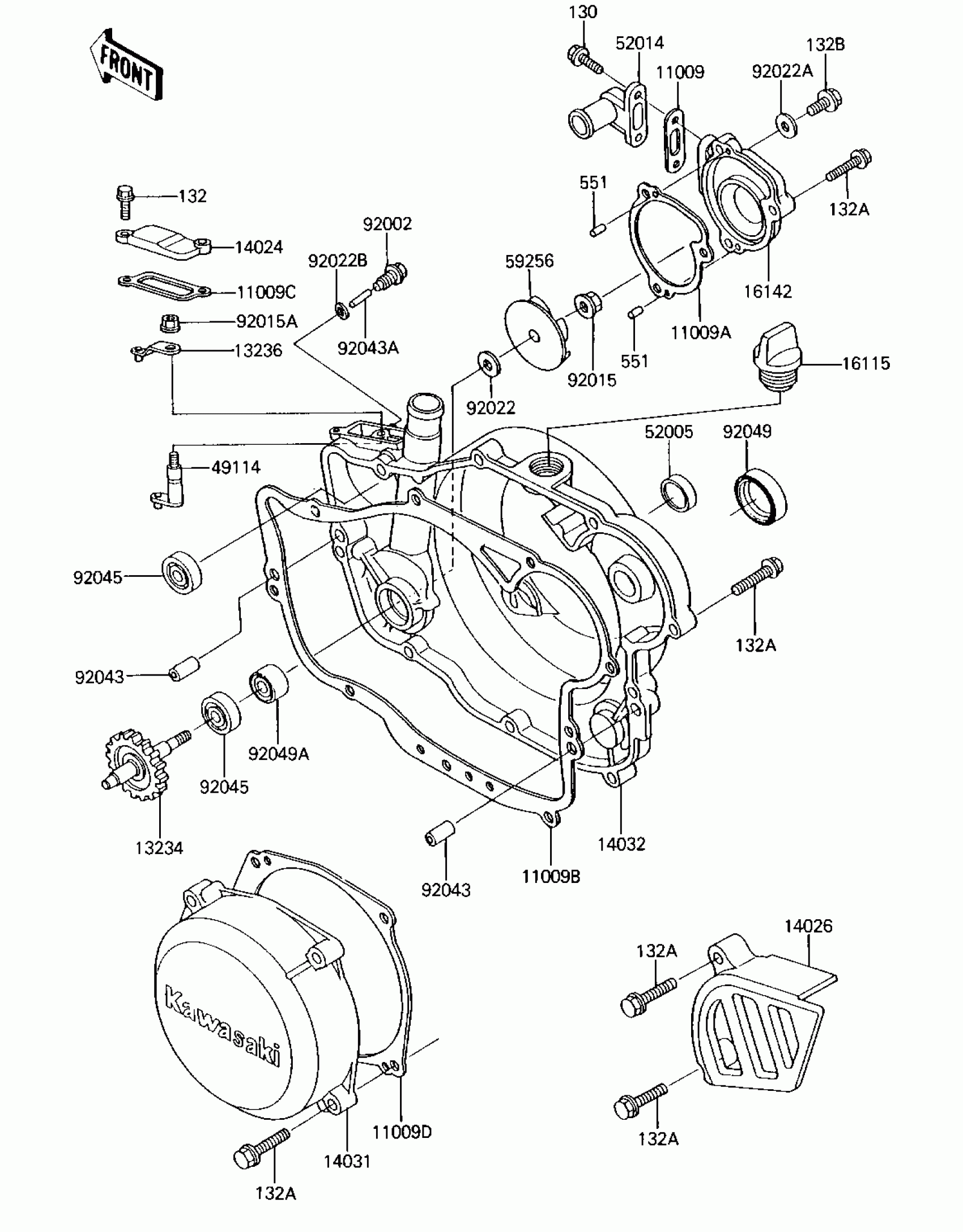

Kawasaki Tecate ENGINE COVERS/WATER PUMP Diagram

#

Description
Price

11009

GASKET,ELBOW

11009-1952

$5.54

11009A

GASKET,WATER PUMP COVER

11009-1953

$9.27

11009B

GASKET,CLUTCH COVER

11009-1548

Unavailable

11009C

GASKET,GENERATOR COVE

11009-1630

Unavailable

11009D

GASKET,GENERATOR COVE

11009-1630

Unavailable

13234

SHAFT-COMP,WATER PUM

13234-1062

Unavailable

13236

LEVER-COMP,GOVERNOR

13236-1141

Unavailable

14024

COVER,GOVERNOR

14024-1139

Unavailable

14026

COVER-CHAIN

14026-1119

Unavailable

14031

COVER-GENERATOR

14031-1104

Unavailable

14032

COVER-CLUTCH

14032-1208

Unavailable

16115

CAP-OIL FILLER

16115-018

$10.56

16142

COVER-PUMP

16142-1067

Unavailable

49114

SHAFT-GOVERNOR

49114-1057

$38.42

52005

GAUGE,OIL LEVEL

52005-1055

$14.76

52014

ELBOW

52014-1062

$35.38

59256

IMPELLER,WATER PUMP

59256-1002

Unavailable

92002

BOLT,FLANGED-SMALL,6X7X2.5

92002-1357

$4.69

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,LEFT HANDED,6MM

92015-1572

$4.11

92022

WASHER,6X14X2

92022-1393

Unavailable

92022A

WASHER,8.2X14X1.0

92022-1488

$4.92

92022B

WASHER,6.2X11X1

92022-304

$3.65

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043A

PIN

92043-109

Unavailable

92045

BEARING-BALL

92045-1212

$12.37

92049

SEAL-OIL,SB18307

92049-013

$14.36

92049A

SEAL-OIL,MHSD8X18X10J-1

92049-1366

$17.95

130

BOLT-FLANGED

130P0520

Unavailable

132

BOLT-FLANGED-SMALL

132G0620

$2.33

132A

BOLT-FLANGED-SMALL

132G0625

Unavailable

132B

BOLT-FLANGED-SMALL

132G0810

$4.02

610

ROLLER,4X8

610A0408

$4.31
