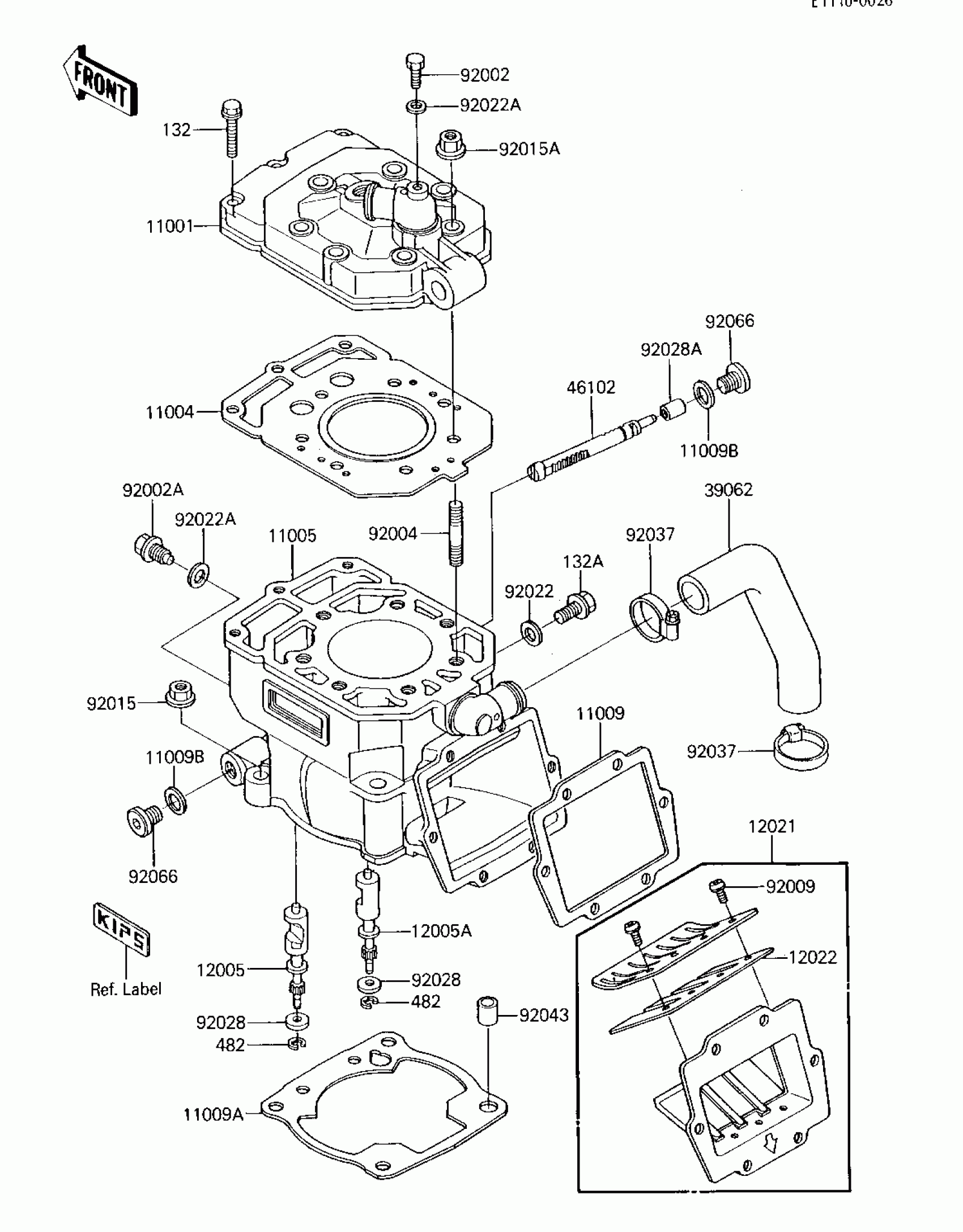

Kawasaki Tecate CYLINDER HEAD/CYLINDER/REED VALVE Diagram
#
Description
Price
11001
HEAD-CYLINDER
11001-1216
Unavailable
11004
GASKET-HEAD
11004-1144
Unavailable
11005
CYLINDER-ENGINE
11005-1471
Unavailable
11009
GASKET,REED VALVE
11009-1950
$11.49
11009A
GASKET,CYLINDER BASE
11009-1546
Unavailable
11009B
GASKET,12.5X18X1,DRAIN PLUG
92065-073
$4.07
12005
VALVE-EXHAUST,LH
12005-1069
Unavailable
12005A
VALVE-EXHAUST,RH
12005-1070
Unavailable
12021
VALVE-ASSY-REED
12021-1058
Unavailable
12022
VALVE-REED
12022-1017
$29.73
39062
HOSE-COOLING
39062-1105
Unavailable
46102
ROD,GOVERNOR
46102-1156
$68.68
92002
BOLT,6X10
92002-1222
$8.10
92002A
BOLT,FLANGED-SMALL,6X7X2.5
92002-1357
$4.69
92004
STUD,8X40
92004-1210
Unavailable
92009
SCREW,REED VALVE
92009-1014
$2.49
92015
NUT,FLANGED,10MM
92015-1415
$4.69
92015A
NUT,8MM
92015-1143
$0.65
92022
WASHER,8.2X14X1.0
92022-1488
$4.92
92022A
WASHER,6.2X11X1
92022-304
$3.65
92028
BUSHING,6X18X5
92028-1389
Unavailable
92028A
BUSHING,5.6X10X14
92028-1413
Unavailable
92037
CLAMP,COOLING HOSE
92037-1589
$18.57
92043
PIN,11X14X12.3
92043-1266
$1.08
92066
PLUG,12X10
92066-1222
$12.37
132
BOLT-FLANGED-SMALL
132G0625
Unavailable
132A
BOLT-FLANGED-SMALL
132G0810
$4.02
482
CIRCLIP-TYPE-E,5MM
482J5000
$3.41
