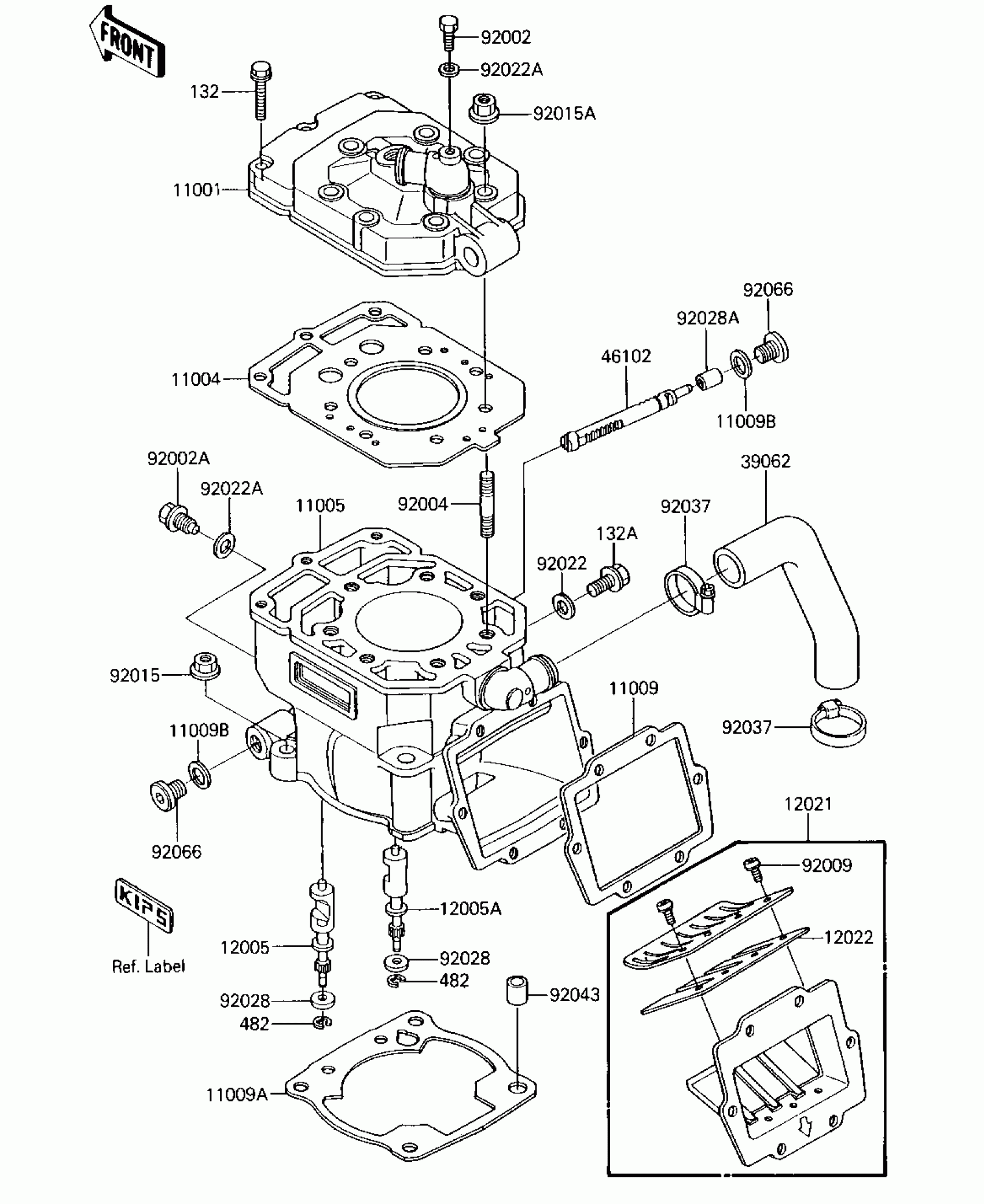

Kawasaki Tecate CYLINDER HEAD/CYLINDER/REED Diagram

#

Description
Price

11001

HEAD-CYLINDER

11001-1216

Unavailable

11004

GASKET-HEAD

11004-1144

Unavailable

11005

CYLINDER-ENGINE

11005-1471

Unavailable

11009

GASKET,REED VALVE

11009-1950

$11.49

11009A

GASKET,CYLINDER BASE

11009-1546

Unavailable

11009B

GASKET,12.5X18X1,DRAIN PLUG

92065-073

$4.07

12005

VALVE-EXHAUST,LH

12005-1083

Unavailable

12005A

VALVE-EXHAUST,RH

12005-1084

Unavailable

12021

VALVE-ASSY-REED

12021-1058

Unavailable

12022

VALVE-REED

12022-1017

$29.73

39062

HOSE-COOLING

39062-1105

Unavailable

46102

ROD,GOVERNOR

46102-1156

$68.68

92002

BOLT,6X10

92002-1222

$8.10

92002A

BOLT,FLANGED-SMALL,6X7X2.5

92002-1357

$4.69

92004

STUD,8X40

92004-1210

Unavailable

92009

SCREW,REED VALVE

92009-1014

$2.49

92015

NUT,FLANGED,10MM

92015-1415

$4.69

92015A

NUT,8MM

92015-1143

$0.65

92022

WASHER,8.2X14X1.0

92022-1488

$4.92

92022A

WASHER,6.2X11X1

92022-304

$3.65

92028

BUSHING,6X18X5

92028-1389

Unavailable

92028A

BUSHING,5.6X10X14

92028-1413

Unavailable

92037

CLAMP,COOLING HOSE

92037-1589

$18.57

92043

PIN,11X14X12.3

92043-1266

$1.08

92066

PLUG,12X10

92066-1222

$12.37

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

132A

BOLT-FLANGED-SMALL

132G0810

$4.02

482

CIRCLIP-TYPE-E,5MM

482J5000

$3.41
