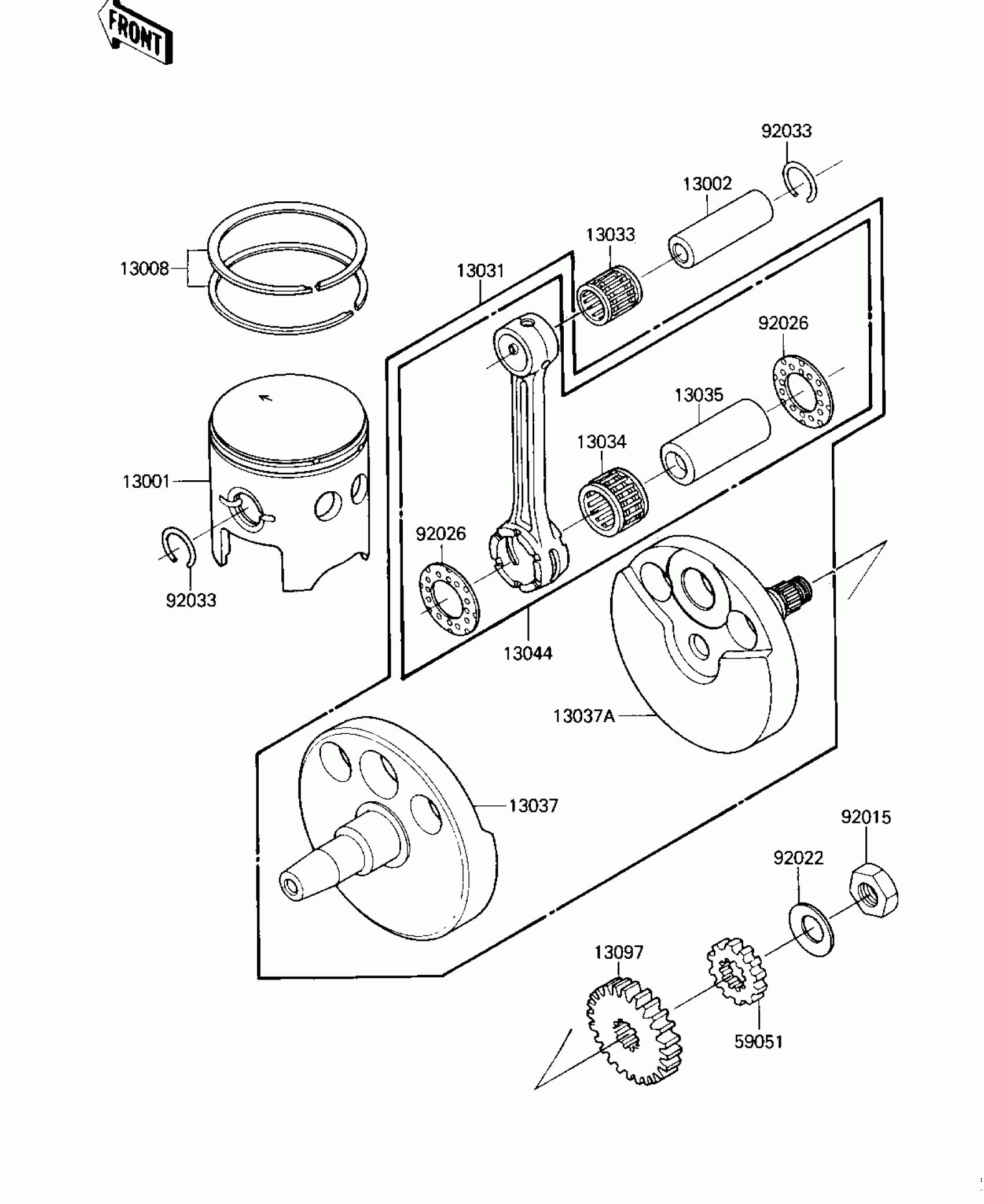

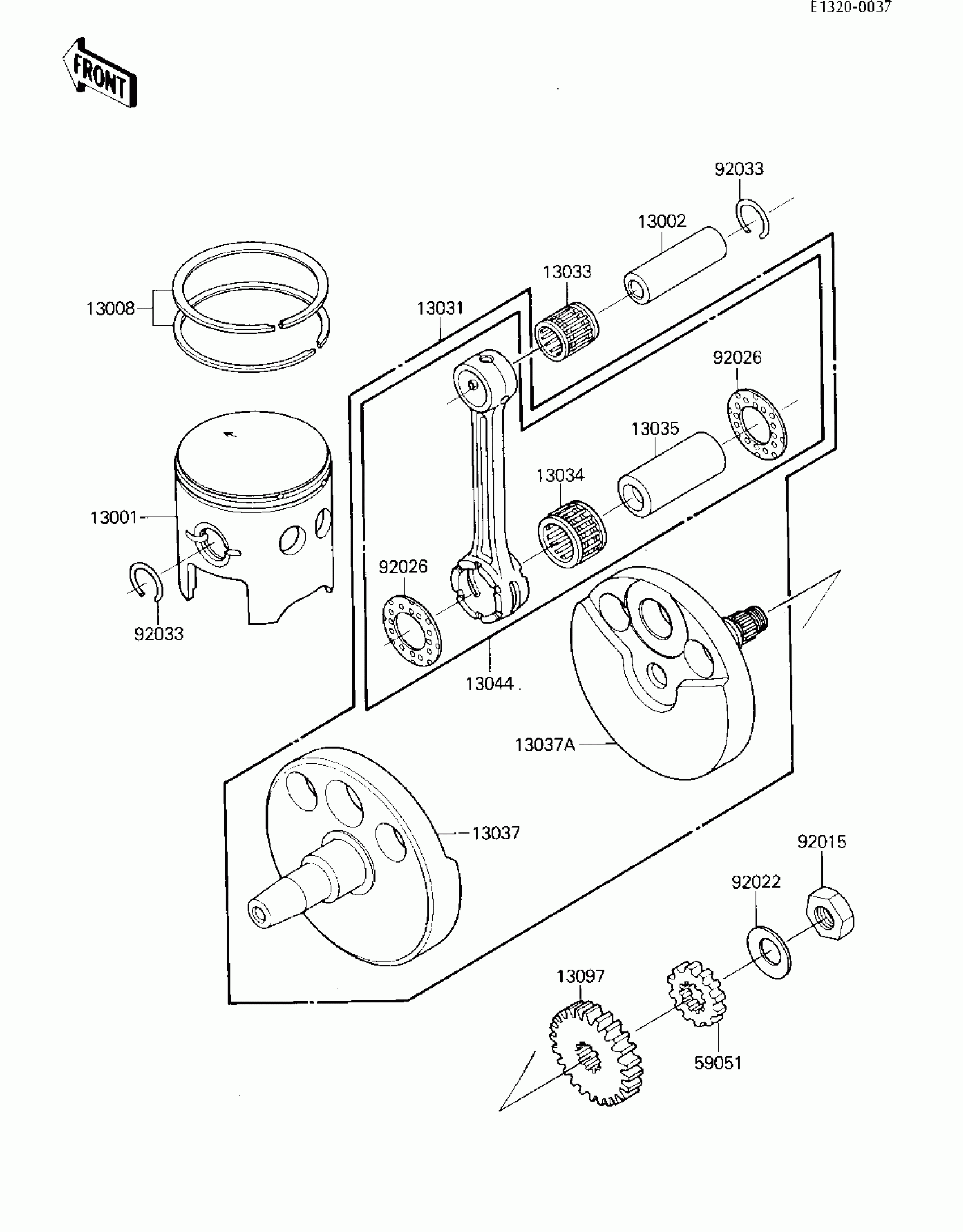

Kawasaki Tecate CRANKSHAFT/PISTON Diagram

Description

Price

13001

PISTON,STD

13001-1039

Unavailable

13002

PIN-PISTON

13002-017

$29.98

13008

RING-SET-PISTON

13008-5068

Unavailable

13031

CRANKSHAFT-COMP

13031-1213

Unavailable

13033

BEARING-SMALL END

13033-1010

$25.15

13034

BEARING-BIG END,H24X

13034-1060

Unavailable

13035

PIN,CRANK

13035-034

$85.12

13037

CRANKSHAFT

13037-1097

Unavailable

13037A

CRANKSHAFT,RH

13037-1275

Unavailable

13044

SET-CONNECTING ROD

13044-5042

Unavailable

13097

GEAR-PRIMARY SPUR,18T

13097-1084

Unavailable

59051

GEAR-SPUR,WATER PUMP,

59051-1049

Unavailable

92015

NUT,16MM

92015-1176

Unavailable

92022

WASHER,16.3X29X1.75

92022-1356

$7.34

92026

SPACER

92026-1241

$9.48

92033

CIRCLIP-PISTON PIN

92036-015

$4.95
