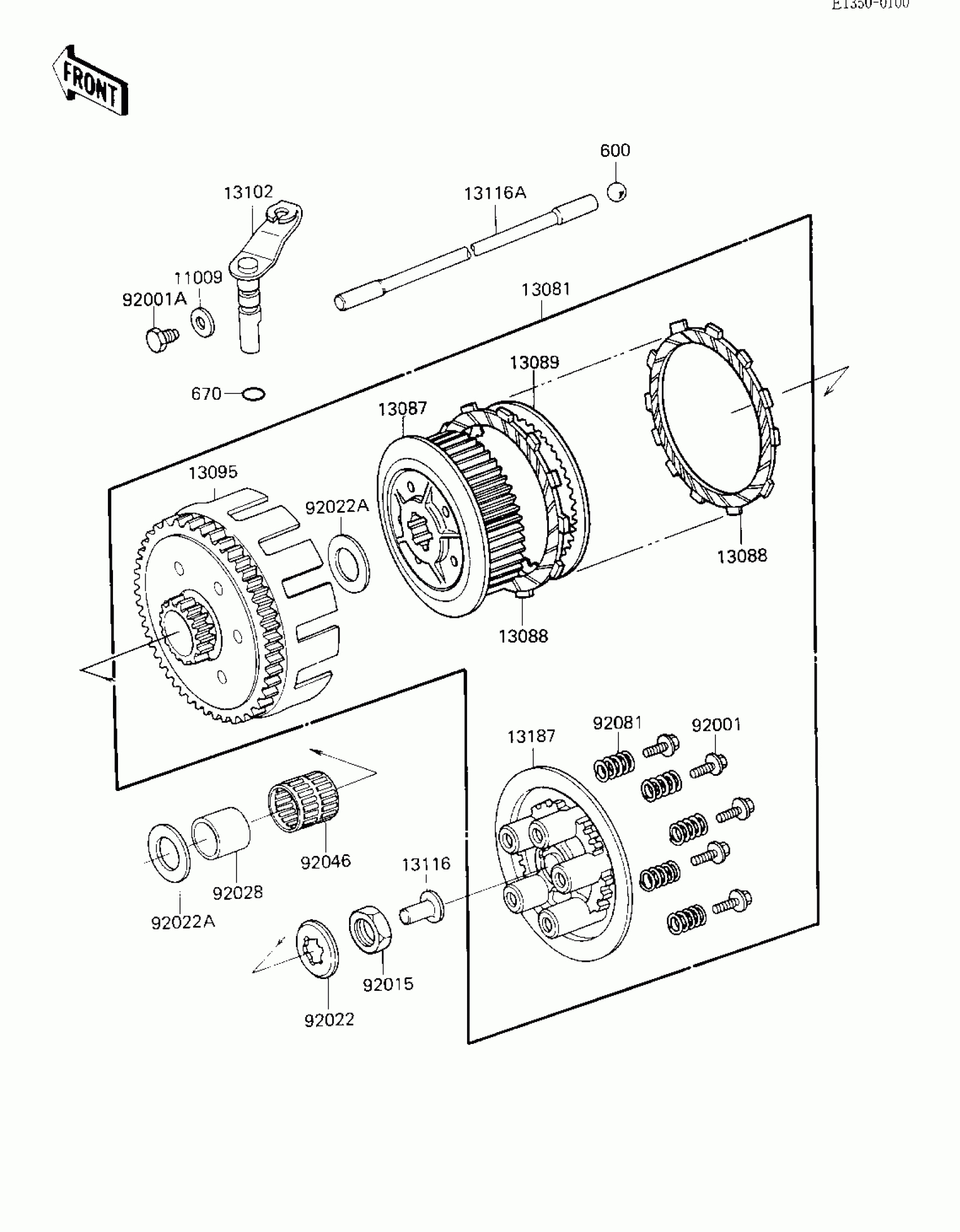

Kawasaki Tecate CLUTCH ('84 A1) Diagram

#

Description
Price

11009

GASKET,6X14X0.8

92065-092

$4.34

13081

CLUTCH-ASSY

13081-1102

Unavailable

13087

HUB,CLUTCH

13087-044

Unavailable

13088

PLATE-FRICTION

13088-1009

$16.82

13089

PLATE-CLUTCH,T=1.2

13089-1010

$15.41

13095

HOUSING-COMP-CLUTCH

13095-1057

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1077

Unavailable

13116

ROD-PUSH,CLUTCH

13116-1010

Unavailable

13116A

ROD-PUSH,CLUTCH,L=157

13116-1044

Unavailable

13187

PLATE-CLUTCH OPERATI

13187-1011

Unavailable

92001

BOLT,FLANGED,6X18

92001-1066

$6.22

92001A

BOLT,CLUTCH RELEASE

92003-130

$6.01

92015

NUT,20MM

92016-028

$9.91

92022

WASHER,LOCK

92022-1047

Unavailable

92022A

WASHER,20.5X34X1.4

92022-168

$9.51

92028

BUSHING,CLUTCH

92028-1076

Unavailable

92046

BEARING-NEEDLE,WR25/

92046-1049

$34.70

92081

SPRING,CLUTCH

92081-1151

Unavailable

600

BALL-STEEL,3/8"

600A1200

$1.56

670

O RING,10MM

670B2010

$1.50
