Description

Price

13081

CLUTCH-ASSY

13081-1222

Unavailable

13087

HUB-CLUTCH

13087-1081

Unavailable

13088

PLATE-FRICTION

13088-1065

Unavailable

13089

PLATE-CLUTCH,T=1.2

13089-1010

$15.41

13095

HOUSING-COMP-CLUTCH

13095-1143

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1078

Unavailable

13116

ROD-PUSH,CLUTCH

13116-1010

Unavailable

13116A

ROD-PUSH

13116-1120

Unavailable

13187

PLATE-CLUTCH OPERATI

13187-1011

Unavailable

92001

BOLT,FLANGED,6X18

92001-1066

$6.22

92002

BOLT,FLANGED-SMALL,6X7X2.5

92002-1357

$4.69

92015

NUT,20MM

92016-028

$9.91

92022

WASHER,20.5X46X2.6

92022-1646

Unavailable

92022A

WASHER

92022-1648

Unavailable

92022B

WASHER,20.5X34X1.4

92022-168

$9.51

92022C

WASHER,6.2X11X1

92022-304

$3.65

92028

BUSHING,CLUTCH

92028-1076

Unavailable

92046

BEARING-NEEDLE,WR25/

92046-1049

$34.70

92081

SPRING,CLUTCH

92081-139

$8.51

600

BALL-STEEL,3/8"

600A1200

$1.56

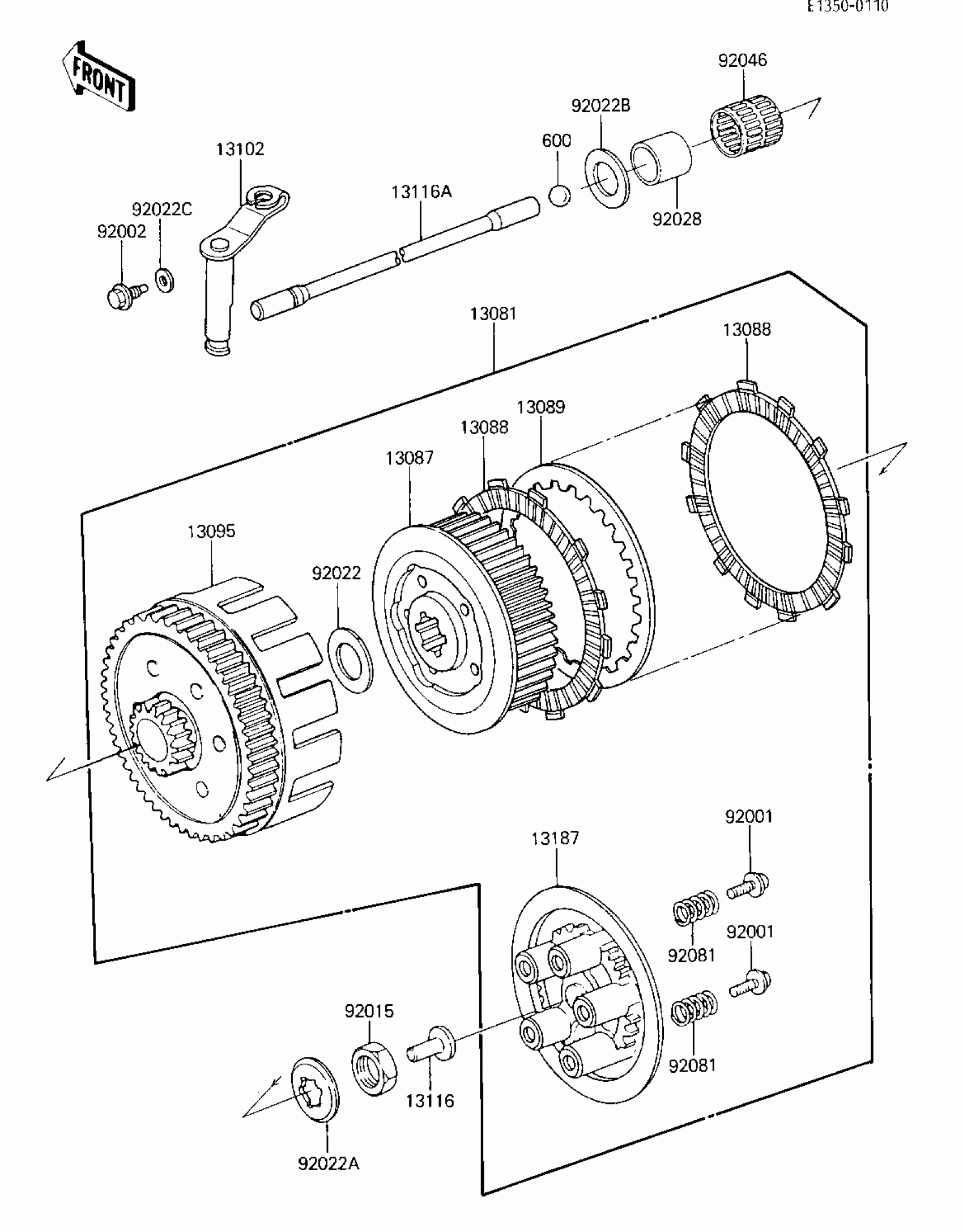

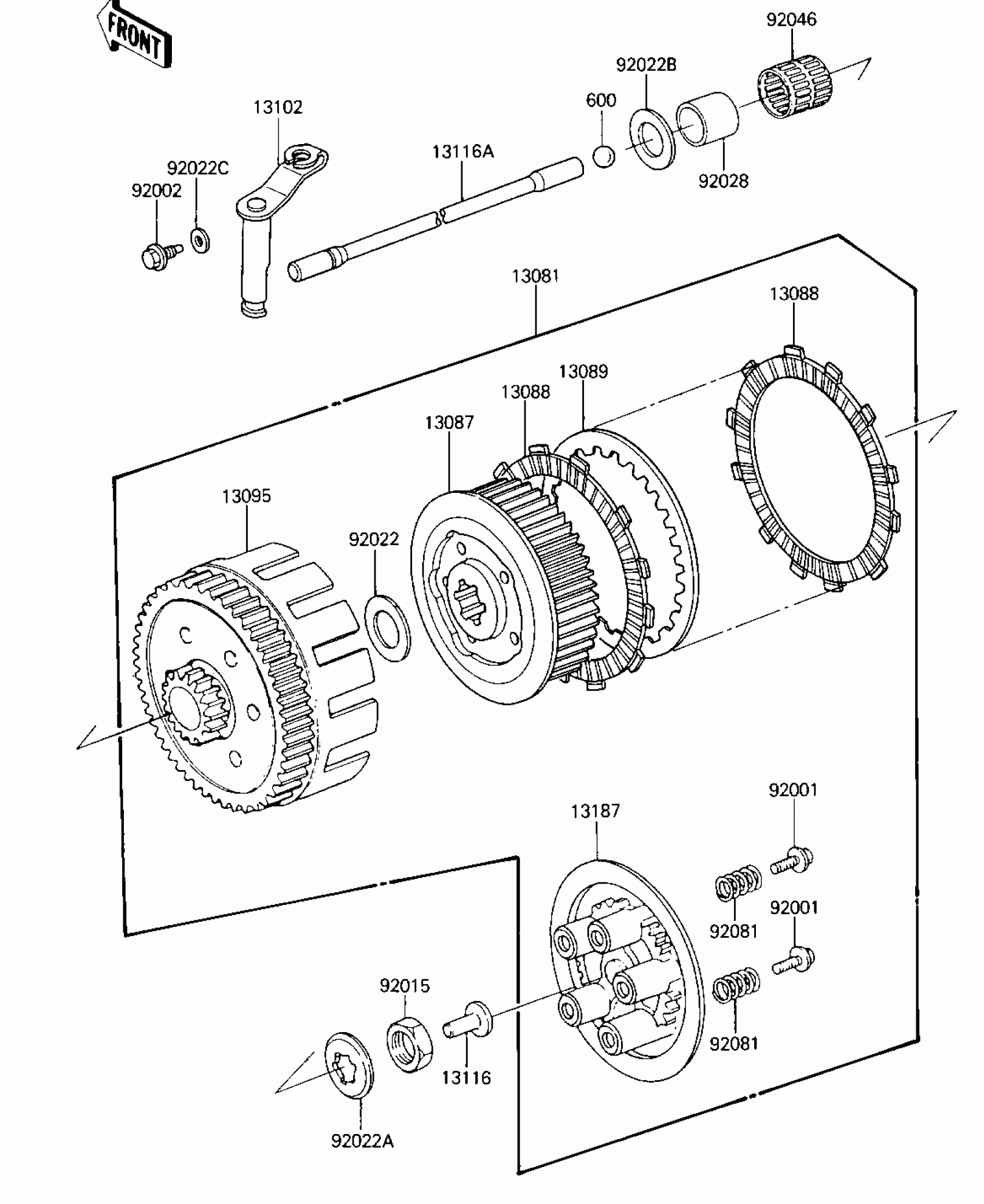

Kawasaki Tecate CLUTCH Diagram

CLUTCH-ASSY

HUB-CLUTCH

PLATE-FRICTION

PLATE-CLUTCH,T=1.2

HOUSING-COMP-CLUTCH

RELEASE-COMP-CLUTCH

ROD-PUSH,CLUTCH

ROD-PUSH

PLATE-CLUTCH OPERATI

BOLT,FLANGED,6X18

BOLT,FLANGED-SMALL,6X7X2.5

NUT,20MM

WASHER,20.5X46X2.6

WASHER

WASHER,20.5X34X1.4

WASHER,6.2X11X1

BUSHING,CLUTCH

BEARING-NEEDLE,WR25/

SPRING,CLUTCH

BALL-STEEL,3/8"
