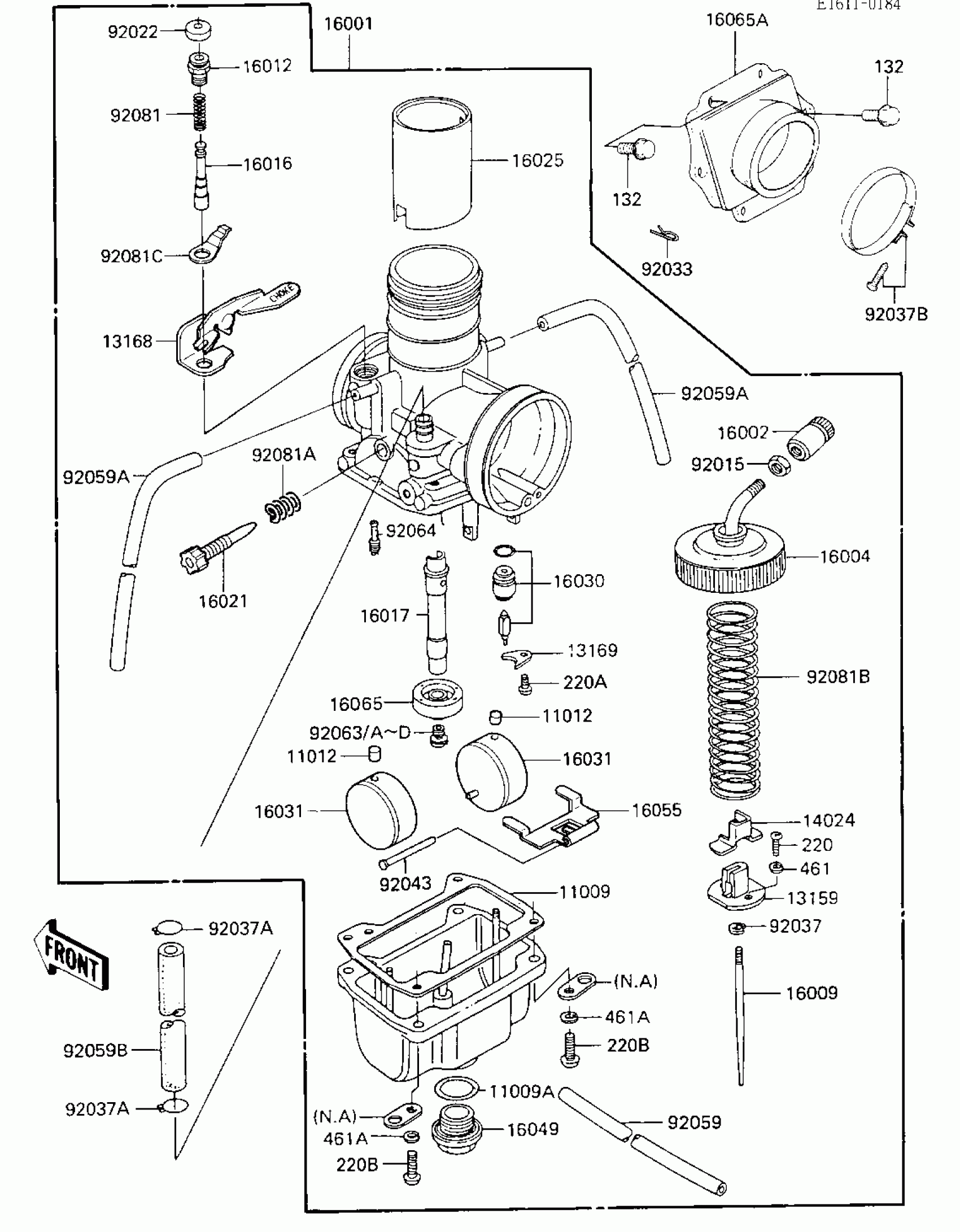

Kawasaki Tecate CARBURETOR ('84 A1) Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-1275

Unavailable

11009A

GASKET,MAIN JET COVER

16038-009

Unavailable

11012

CAP,FLOAT

11012-1047

Unavailable

13159

CONNECTOR,THROTTLE

13159-1010

Unavailable

13168

LEVER,STARTER

13168-1207

Unavailable

13169

PLATE, LOCK

13169-1190

Unavailable

14024

COVER,THROTTLE VALVE

14025-1113

Unavailable

16001

CARBURETOR

16001-1878

$356.86

16002

ADJUSTER-CABLE

16002-1006

Unavailable

16004

CAP-CHAMBER,MIXING

16004-1013

Unavailable

16009

NEEDLE-JET,6FJ50

16009-1216

$39.53

16012

CAP-STARTER PLUNGER

16012-019

$21.09

16016

PLUNGER

16016-011

$42.89

16017

JET-NEEDLE,Q-6

16017-1210

$30.32

16021

SCREW,THROTTLE STOP

16021-1034

Unavailable

16025

VALVE-THROTTLE,CA2.5

16025-1102

$111.22

16030

VALVE-FLOAT,3.3

16030-1020

Unavailable

16031

FLOAT

16031-029

$64.25

16049

COVER-MAIN JET

16049-006

Unavailable

16055

ARM-FLOAT

16055-009

Unavailable

16065

HOLDER-CARBURETOR,NEEDLE JET

16065-1045

Unavailable

16065A

HOLDER-CARBURETOR

16065-1048

$75.13

92015

NUT,CABLE ADJUST LOCK

16003-004

$7.34

92022

CAP,STARTER PLUNGER

16039-015

$6.88

92033

RING-SNAP

92036-018

$3.89

92037

CLAMP,E-TYPE

16008-010

$9.21

92037A

CLAMP,CARB CONECT HOS

92037-056

$6.60

92037B

CLAMP,CARBURETOR HOL

92037-1313

Unavailable

92043

PIN,FLOAT

16032-008

$6.57

92059

TUBE,3.5X6.5X410

92059-1142

Unavailable

92059A

TUBE,4X7X400

92059-1292

Unavailable

92059B

TUBE,6.5X11.5X215

92059-1295

$9.11

92063

JET-MAIN,#210

92063-023

$14.10

92063A

JET-MAIN,#220

92063-024

$16.50

92063B

JET-MAIN,#230

92063-025

$16.09

92063C

JET-MAIN,#240

92063-026

$19.00

92063D

JET-MAIN NO 250A

92063-027

$19.00

92064

JET-PILOT NO 45

92064-044

$19.70

92081

SPRING,STARTER PLUNGER

92081-1181

$4.11

92081A

SPRING,THRTL STP SCRW

92081-1200

$9.28

92081B

SPRING,THROTTLE VALVE

92081-1432

Unavailable

92081C

SPRING,PLATE

92081-1625

Unavailable

132

BOLT-FLANGED-SMALL

132G0620

$2.33

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW PAN HEAD 4X6

220B0406

$1.67

220B

SCREW PAN HEAD 5X16

220B0516

$2.06

461

WASHER SPRING 3MM

461F0300

$0.46

461A

WASHER SPRING 5MM

461F0500

$0.69
