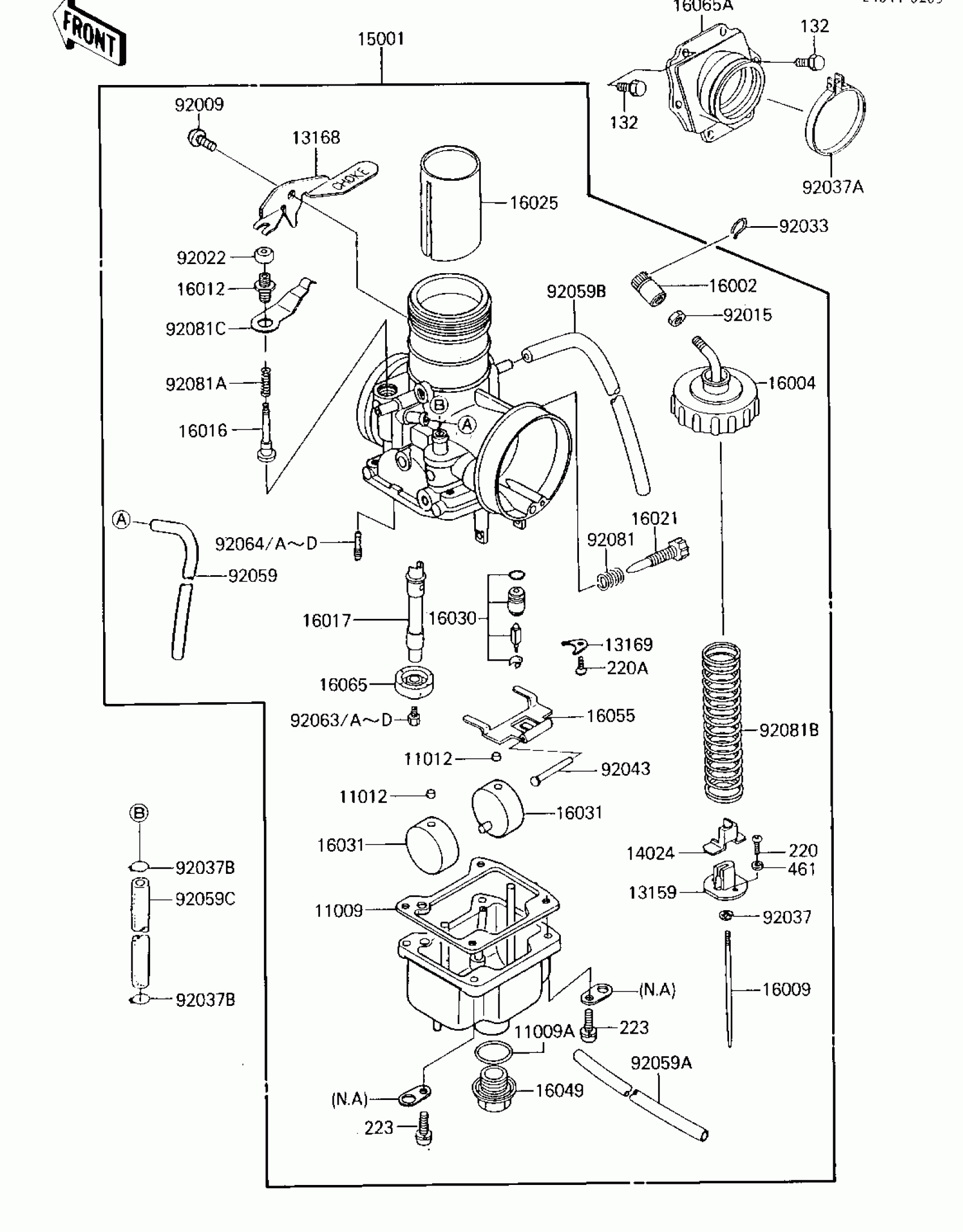

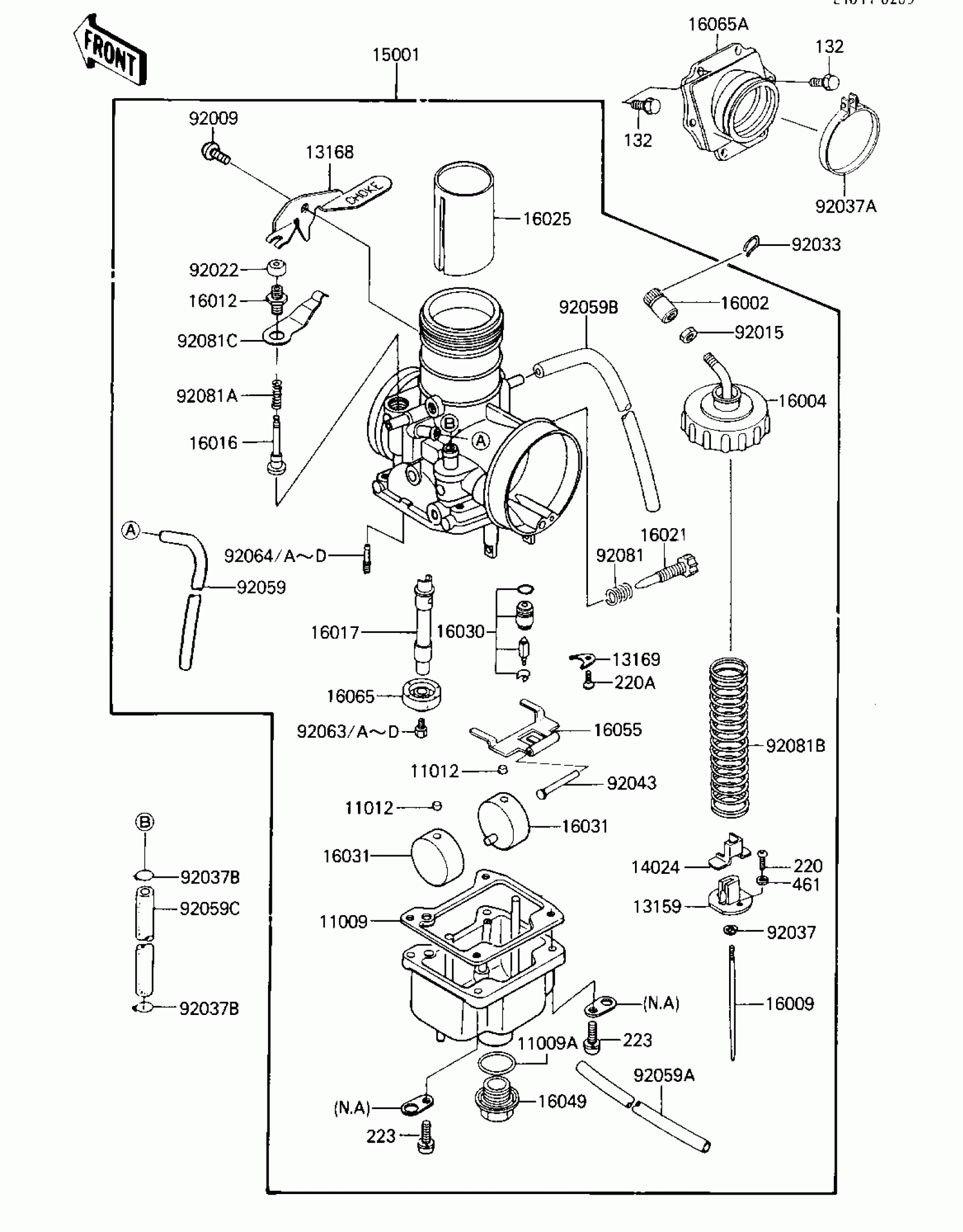

Kawasaki Tecate CARBURETOR Diagram
#
11009
GASKET,FLOAT CHAMBER
11009-1275
Unavailable
11009A
GASKET,MAIN JET COVER
16038-009
Unavailable
11012
CAP,FLOAT
11012-1047
Unavailable
13159
CONNECTOR,THROTTLE
13159-1010
Unavailable
13168
LEVER,STARTER
13168-1233
Unavailable
13169
PLATE, LOCK
13169-1190
Unavailable
14024
COVER,THROTTLE VALVE
14025-1113
Unavailable
15001
CARBURETOR-ASSY
15001-1207
$358.55
16002
ADJUSTER-CABLE
16002-1006
Unavailable
16004
CAP-CHAMBER,MIXING
16004-1013
Unavailable
16009
NEEDLE-JET,6FL56
16009-1297
Unavailable
16012
CAP-STARTER PLUNGER
16012-019
$21.09
16016
PLUNGER
16016-011
$42.89
16017
JET-NEEDLE,R-2
16017-1250
Unavailable
16021
SCREW,THROT VLV ADJST
16021-1030
Unavailable
16025
VALVE-THROTTLE,CA.3.0
16025-1114
$162.29
16030
VALVE-FLOAT,3.3
16030-1020
Unavailable
16031
FLOAT
16031-029
$64.25
16049
COVER-MAIN JET
16049-006
Unavailable
16055
ARM-FLOAT
16055-009
Unavailable
16065
HOLDER-CARBURETOR,NEEDLE JET
16065-1045
Unavailable
16065A
HOLDER-CARBURETOR
16065-1124
Unavailable
92009
SCREW
92009-1412
$6.63
92015
NUT,CABLE ADJUST LOCK
16003-004
$7.34
92022
CAP,STARTER PLUNGER
16039-015
$6.88
92033
RING-SNAP
92036-018
$3.89
92037
CLAMP,E-TYPE
16008-010
$9.21
92037A
CLAMP,CARBURETOR HOL
92037-1313
Unavailable
92037B
CLAMP,TUBE
92037-147
$7.34
92043
PIN,FLOAT
16032-008
$6.57
92059
TUBE,3.5X6.5X410
92059-1142
Unavailable
92059A
TUBE,3.5X6.5X350
92059-1211
$12.19
92059B
TUBE,4X7X400
92059-1292
Unavailable
92059C
TUBE,5.8X10.8X230
92059-1431
$9.11
92063
JET-MAIN NO 260A
92063-028
$16.36
92063A
JET-MAIN NO 270A
92063-029
Unavailable
92063B
JET-MAIN NO 280A
92063-030
$16.36
92063C
JET-MAIN NO 290A
92063-031
$16.36
92063D
JET-MAIN,#300
92063-045
Unavailable
92064
JET-PILOT,#30
92064-022
$17.03
92064A
JET-PILOT NO 35
92064-023
$20.51
92064B
JET-PILOT NO 40
92064-024
$22.86
92064C
JET-PILOT,#25
92064-032
$19.34
92064D
JET-PILOT NO 45
92064-044
$19.70
92081
SPRING,THROTTLE STOP SCREW
16022-005
$8.68
92081A
SPRING,STARTER PLUNGER
92081-1181
$4.11
92081B
SPRING,THROTTLE VALVE
92081-1432
Unavailable
92081C
SPRING,PLATE
92081-1625
Unavailable
132
BOLT-FLANGED-SMALL
132G0620
$2.33
220
SCREW-PAN-CROS,3X8
220B0308
$0.59
220A
SCREW PAN HEAD 4X6
220B0406
$1.67
223
SCREW-PAN-WS-CROS
223B0518
Unavailable
461
WASHER SPRING 3MM
461F0300
$0.46
