Description

Price

13127A

SHAFT-TRANSMISSION INPUT,14T

13127-1165

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-1145

Unavailable

13129

GEAR,INPUT 2ND,16T

13129-1847

Unavailable

13129A

GEAR,INPUT 3RD&4TH,18&20T

13129-1848

Unavailable

13129B

GEAR,INPUT 5TH,24T

13129-1849

Unavailable

13129C

GEAR,INPUT TOP,25T

13129-1850

Unavailable

13129D

GEAR,OUTPUT LOW,33T

13129-1851

Unavailable

13129E

GEAR,OUTPUT 2ND,28T

13129-1852

Unavailable

13129F

GEAR,OUTPUT 3RD,25T

13129-1853

Unavailable

13129G

GEAR,OUTPUT 4TH,23T

13129-1854

Unavailable

13129H

GEAR,OUTPUT 5TH,24T

13129-1855

Unavailable

13129I

GEAR,OUTPUT TOP,22T

13129-1856

Unavailable

13144

SPROCKET-OUTPUT,14T

13144-1005

$35.93

13144A

SPROCKET-OUTPUT,13T

13144-1027

$34.32

92022

WASHER,17.3X22X0.5

92022-1799

$3.92

92033

RING-SNAP,25MM

92033-1089

$5.54

92033A

RING-SNAP,20MM

92033-1231

$5.54

92055

RING-O

92055-035

$5.00

92143

COLLAR,SPROCKET

92143-1085

Unavailable

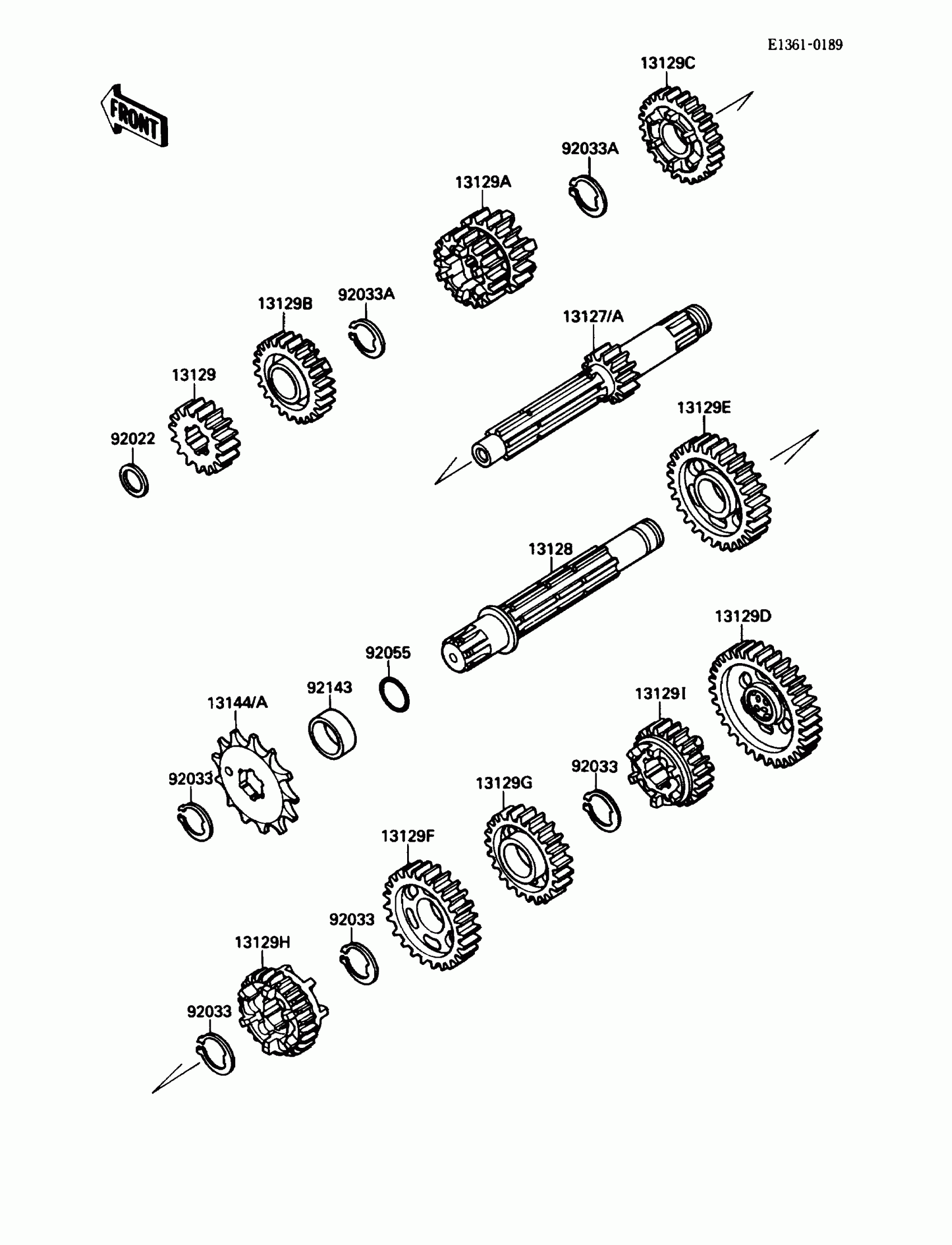

Kawasaki Tecate 4 Transmission Diagram

SHAFT-TRANSMISSION INPUT,14T

SHAFT-TRANSMISSION OUTPUT

GEAR,INPUT 2ND,16T

GEAR,INPUT 3RD&4TH,18&20T

GEAR,INPUT 5TH,24T

GEAR,INPUT TOP,25T

GEAR,OUTPUT LOW,33T

GEAR,OUTPUT 2ND,28T

GEAR,OUTPUT 3RD,25T

GEAR,OUTPUT 4TH,23T

GEAR,OUTPUT 5TH,24T

GEAR,OUTPUT TOP,22T

SPROCKET-OUTPUT,14T

SPROCKET-OUTPUT,13T

WASHER,17.3X22X0.5

RING-SNAP,25MM

RING-SNAP,20MM

RING-O

COLLAR,SPROCKET
