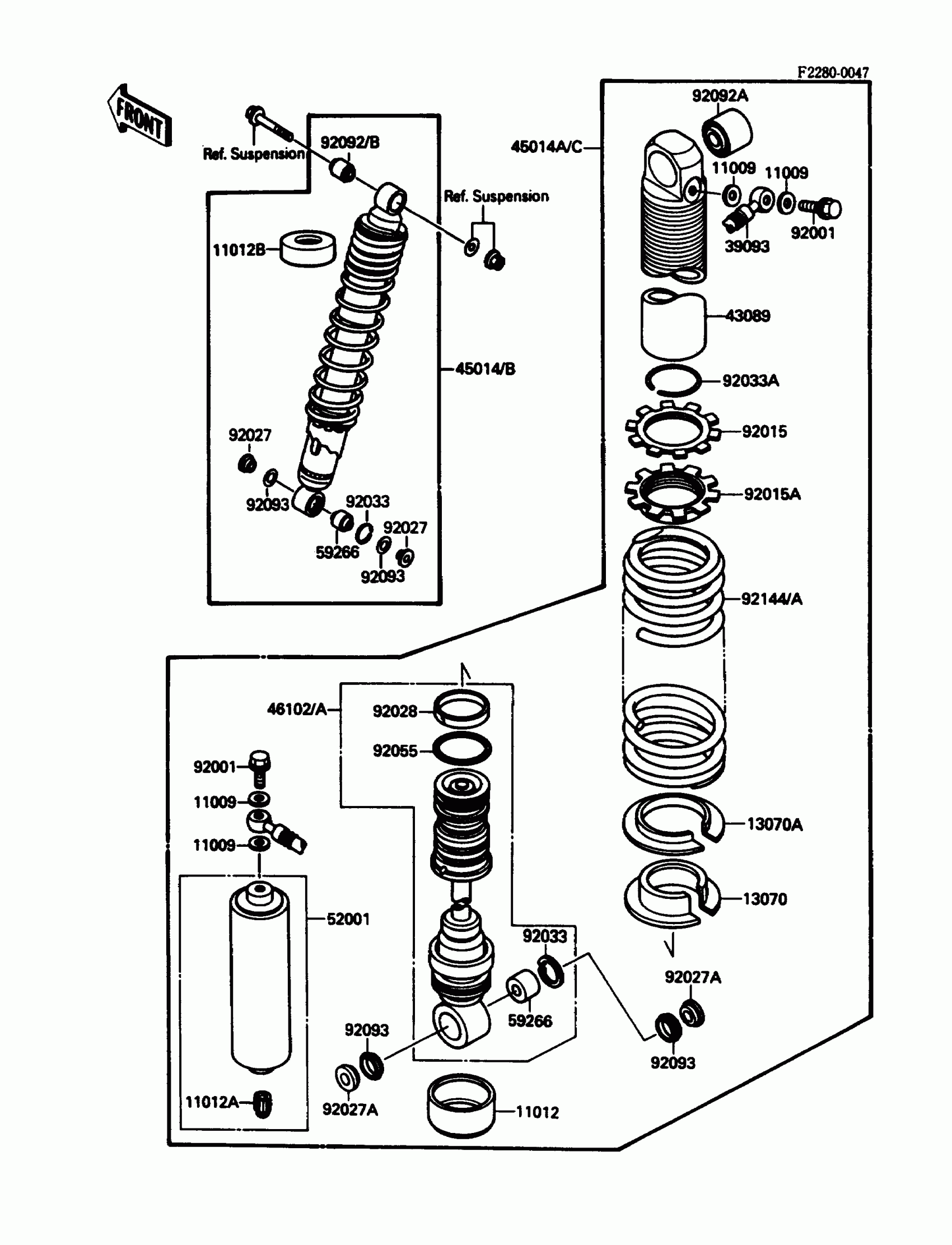

Kawasaki Tecate 4 Shock Absorber(s) Diagram
#
Description
Price
11009
GASKET
44045-057
$4.86
11012
CAP,REARSHOCK
11012-1278
Unavailable
11012A
CAP,VALVE AIR
11012-1391
$5.73
11012B
CAP,SHOCKABSORBER
11012-1636
Unavailable
13070
GUIDE
13070-1150
Unavailable
13070A
GUIDE,SPRING
13070-1161
$23.01
39093
PIPE-COMP-SUSP
39093-1117
$120.30
43089
CYLINDER-SHOCKABSORBER
43089-1120
$325.82
45014B
SHOCKABSORBER,FR
45014-1394
$388.00
45014C
SHOCKABSORBER,RR
45014-1395
$864.88
46102A
ROD,SHOCKABSORBER
46102-1240
$553.64
52001
TANK-OIL,SHOCKABSORBER
52001-1073
$213.55
59266
JOINT-BALL
59266-1053
$116.73
92001
BOLT,BANJO
92001-1752
Unavailable
92015
NUT,SPRING ADJUST LOCK
92015-1551
$35.97
92015A
NUT,SPRING GUIDE
92015-1552
$58.02
92027
COLLAR
92027-1862
$20.77
92027A
COLLAR,SHOCKABSORBER
92027-1976
Unavailable
92028
BUSHING
92028-1411
$23.04
92033
RING-SNAP
92033-1090
$5.42
92033A
RING-SNAP
92033-1206
Unavailable
92055
RING-O,ROD
92055-1181
Unavailable
92092A
BUSHING-RUBBER
92092-1058
$29.88
92092B
BUSHING-RUBBER,SHOCKABSORBER
92092-1066
$16.60
92093
SEAL
92093-1183
$16.50
92144A
SPRING,SHOCKABSORBER,K=4.8
92144-1263
$199.85
