Description

Price

11045

BRACKET,REAR CALIPER

11045-1427

Unavailable

13091

HOLDER,DISC PLATE

13091-1472

Unavailable

39171

FLANGE-COMP,SPROCKET

39171-1052

Unavailable

41046

HOUSING-BEARING

41046-1080

Unavailable

41068

AXLE,RR

41068-1239

$838.64

42041

SPROCKET-HUB,38T

42041-1262

$103.07

42041A

SPROCKET-HUB,39T

42041-1263

$82.47

42041B

SPROCKET-HUB,40T

42041-1264

$82.47

42041C

SPROCKET-HUB,41T

42041-1265

$83.07

42041D

SPROCKET-HUB,37T

42041-1289

$82.47

43058

RING,SNAP

43058-1060

$5.83

49030

HUB,RR

49030-1078

$156.38

92002

BOLT,10X30

92002-1388

$9.48

92002A

BOLT,FLANGED,8X25

92002-1903

Unavailable

92015

NUT,CASTLE,18MM

42045-018

$9.23

92015A

NUT,LOCK,8MM

92015-1506

Unavailable

92015B

NUT,LOCK,37MM

92015-1545

$19.74

92015C

NUT,AXLE,37MM

92015-1645

Unavailable

92022

WASHER,94.5X108X1.0

92022-1858

$5.54

92022A

WASHER,40.5X60X1.0

92022-1859

$3.58

92022B

WASHER,18.3X34X4.5

92022-1953

$5.75

92033

RING-SNAP,95MM

92033-1216

$39.96

92033A

RING-SNAP,75MM

92033-1217

$25.51

92049

SEAL-OIL

92049-1237

$16.13

92055

RING-O,76MM

92055-1213

$9.57

92055A

RING-O,38MM

92055-1317

$4.60

92057A

CHAIN,DRIVE,EK520SR-O2X96L

92057-1266

$186.32

92143

COLLAR,REAR AXLE,L=136

92143-1078

$86.52

550

PIN-COTTER,3.2X35

550D3235

$3.16

601

BEARING-BALL,#6008UU

601A6008UU

$61.39

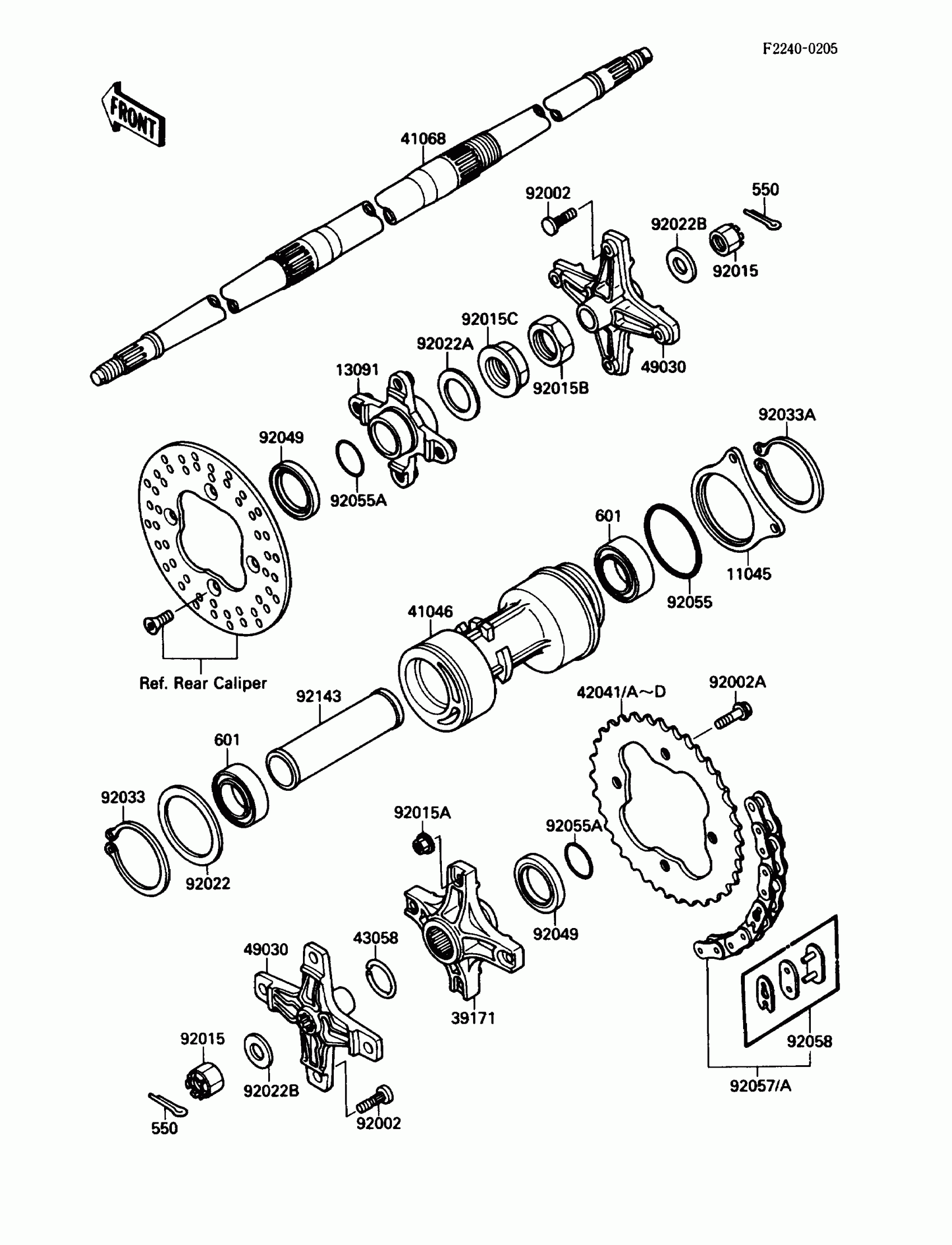

Kawasaki Tecate 4 Rear Hub Diagram

BRACKET,REAR CALIPER

HOLDER,DISC PLATE

FLANGE-COMP,SPROCKET

HOUSING-BEARING

AXLE,RR

SPROCKET-HUB,38T

SPROCKET-HUB,39T

SPROCKET-HUB,40T

SPROCKET-HUB,41T

SPROCKET-HUB,37T

RING,SNAP

HUB,RR

BOLT,10X30

BOLT,FLANGED,8X25

NUT,CASTLE,18MM

NUT,LOCK,8MM

NUT,LOCK,37MM

NUT,AXLE,37MM

WASHER,94.5X108X1.0

WASHER,40.5X60X1.0

WASHER,18.3X34X4.5

RING-SNAP,95MM

RING-SNAP,75MM

SEAL-OIL

RING-O,76MM

RING-O,38MM

CHAIN,DRIVE,EK520SR-O2X96L

COLLAR,REAR AXLE,L=136

PIN-COTTER,3.2X35

BEARING-BALL,#6008UU
