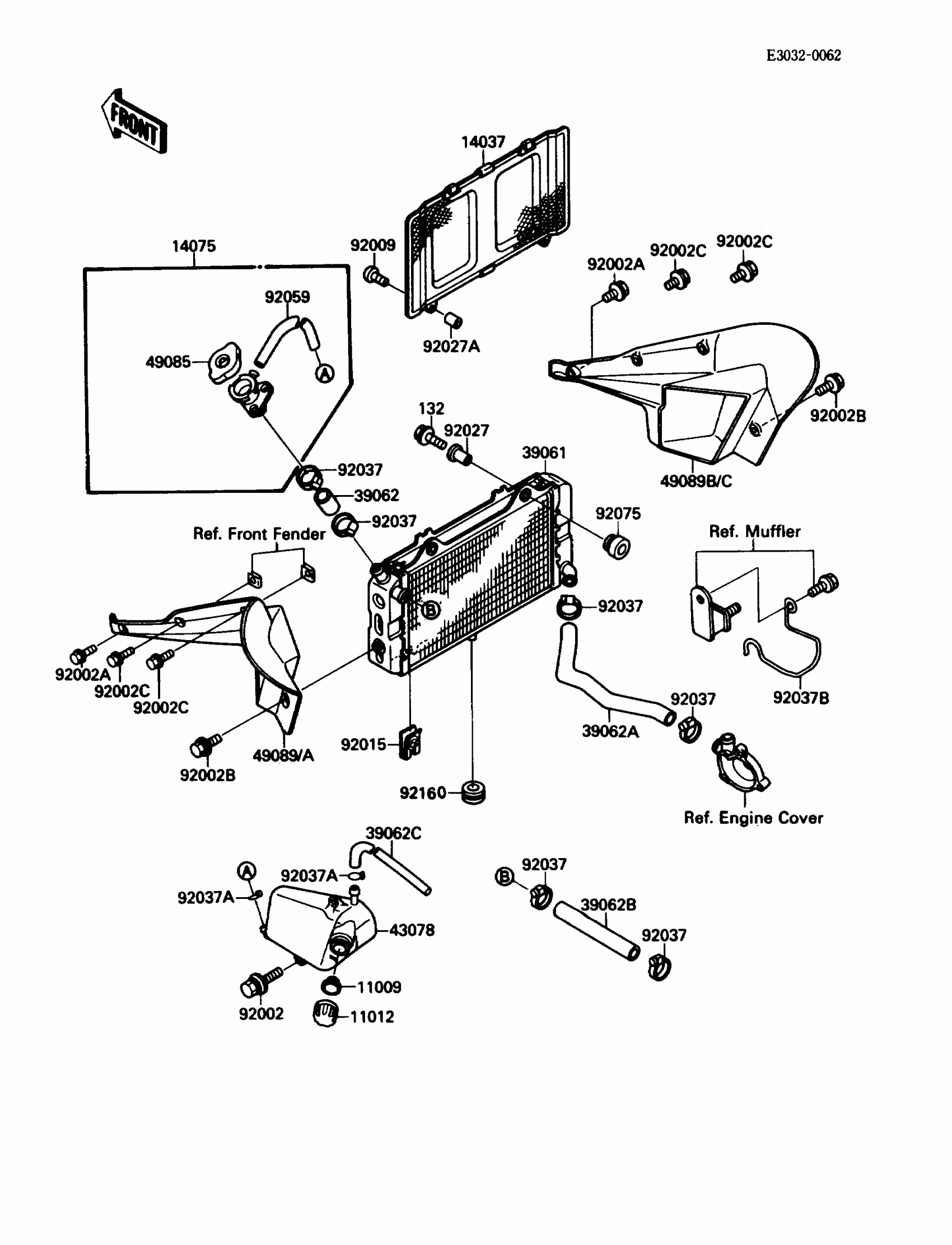

Kawasaki Tecate 4 Radiator Diagram
#
Description
Price
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
14037
SCREEN
14037-1096
$51.59
14075
CAP-ASSY,RADIATOR
14075-1071
$80.76
39061
RADIATOR-ASSY
39061-1105
$755.82
39062
HOSE-COOLING,CYLINDER
39062-1015
$25.59
39062A
HOSE-COOLING,PUMP-RADIATOR
39062-1232
Unavailable
39062B
HOSE-COOLING,HEAD-RADIATOR
39062-1234
Unavailable
39062C
HOSE-COOLING,5X9X950
39062-1254
Unavailable
43078
RESERVOIR
43078-1087
Unavailable
49085
CAP-ASSY-PRESSURE
49085-1003
$37.42
49089
SHROUD-ENGINE,LH,P.WHITE
49089-1075-6F
Unavailable
49089A
SHROUD-ENGINE,LH,L.GREEN
49089-1075-6W
Unavailable
49089B
SHROUD-ENGINE,RH,P.WHITE
49089-1076-6F
Unavailable
49089C
SHROUD-ENGINE,RH,L.GREEN
49089-1076-6W
Unavailable
92002
BOLT,6X14
92002-1460
$5.07
92002A
BOLT,6X25
92002-1462
$4.80
92002B
BOLT,L=12
92002-1662
$4.31
92002C
BOLT,6X18
92002-1952
$5.00
92009
SCREW,TAPPING,6X20
92009-1422
$4.60
92015
NUT,6MM
92015-1758
$6.88
92027
COLLAR,6.5X10X14.1
92027-1183
$5.52
92027A
COLLAR 6.8X10X10.5
92027-120
$5.00
92037
CLAMP,COOLING HOSE
92037-1589
$18.57
92037A
CLAMP
92037-1712
$5.00
92037B
CLAMP,COOLING HOSE GUIDE
92037-1953
Unavailable
92059
TUBE
92059-1794
$20.89
92075
DAMPER
92075-1352
$6.52
92160
DAMPER
92160-1007
$5.52
132
BOLT-FLANGED-SMALL
132G0625
Unavailable
