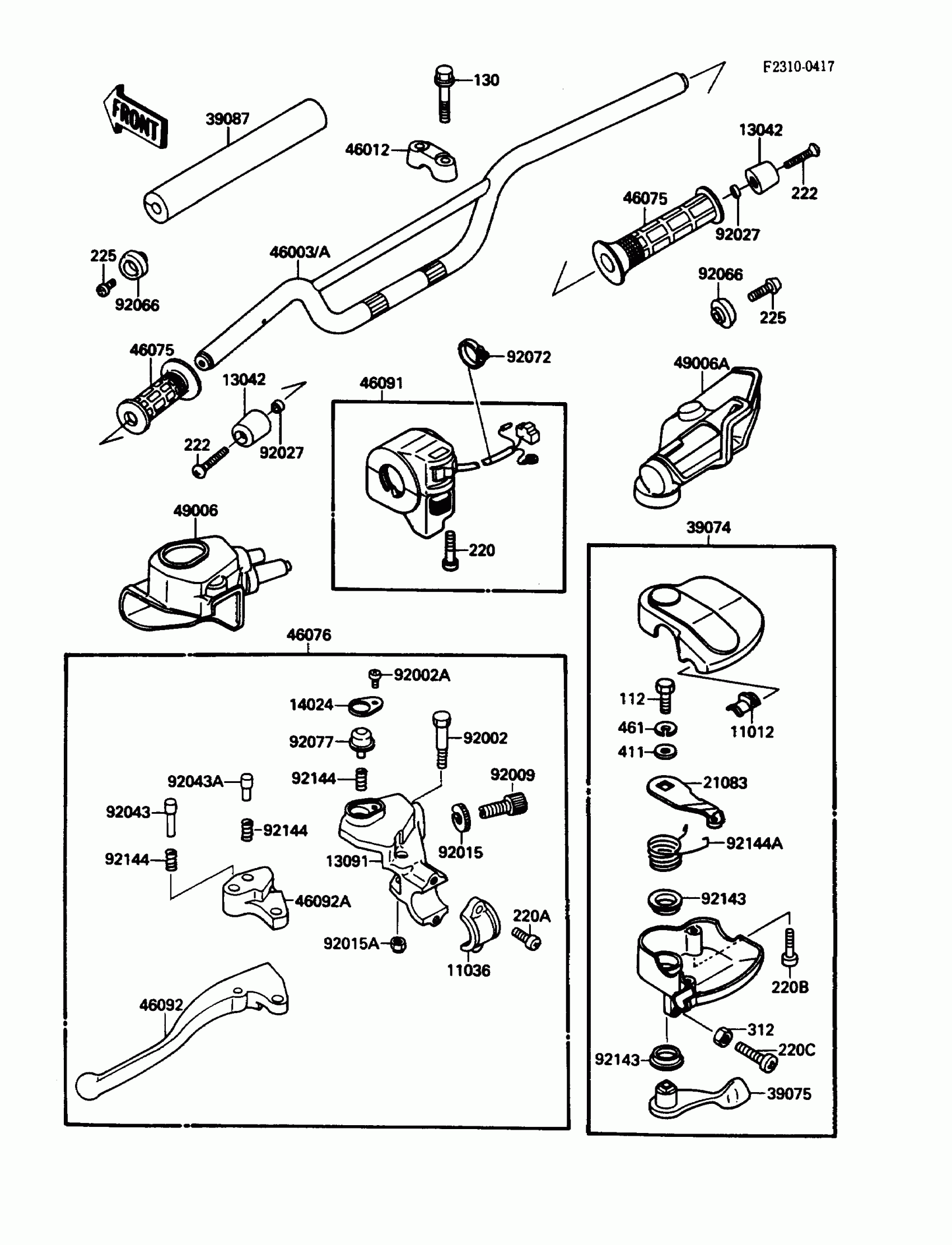

Kawasaki Tecate 4 Handlebar Diagram
#
11012
CAP
11012-1425
Unavailable
11036
BRACKET-A,LEVER HOLDER
11036-1297
Unavailable
13042
WEIGHT,HANDLE
13042-1060
Unavailable
13091
HOLDER,LEVER
13091-1456
$46.96
14024
COVER,PARKING LEVER
14024-1351
$9.95
21083
ARM
21083-1068
$13.97
39074
LEVER-ASSY-THROTTLE
39074-1052
$79.09
39075
LEVER-THROTTLE
39075-1053
$33.25
39075A
LEVER-THROTTLE,ARM
39075-1054
$11.51
39087
PAD-HANDLE
39087-1054
Unavailable
46003A
HANDLE
46003-1272
$47.93
46012
HOLDER-HANDLE,UPP
46012-008
$37.74
46075
GRIP
46075-1056
$25.83
46076
LEVER-ASSY-GRIP,LH
46076-1151
$84.86
46091
HOUSING-ASSY-CONTROL,LH
46091-1444
Unavailable
46092
LEVER-GRIP,CLUTCH
46092-1137
$20.11
46092A
LEVER-GRIP,PARKING
46092-1138
$12.99
49006
BOOT,LH
49006-1197
$17.80
49006A
BOOT,RH
49006-1198
Unavailable
92002
BOLT,LEVER SET
92002-1833
$7.58
92002A
BOLT,TAPPING
92002-1834
$3.86
92009
SCREW,CABLE ADJUST,8MM
46055-009
$19.07
92015
NUT,CABLE ADJUST
46056-006
$8.94
92015A
NUT,LOCK,6MM
92019-008
$4.26
92027
COLLAR,6.3X10X4.8
92027-1066
$4.26
92043
PIN,5X15
92043-1341
$9.64
92043A
PIN,5X11
92043-1342
$9.18
92072
BAND,L=123
92072-030
$5.00
92077
KNOB,PARKING LEVER
92077-1076
$8.53
92143
COLLAR
92143-1138
$3.56
92144
SPRING
92144-1058
$7.51
92144A
SPRING
92144-1176
$142.00
112
BOLT-UPSET
112D0614
$0.49
130
BOLT-FLANGED,8X60
130J0860
$5.21
220
SCREW-PAN-CROS
220B0535
$3.70
220A
SCREW-PAN-CROS
220C0514
$1.81
220B
SCREW-PAN-CROS,5X25
220C0525
$3.52
220C
SCREW-PAN HEAD,6X30
220C0630
$1.89
222
SCREW-CSK-RD-CROS
222C0640
$2.74
312
NUT-HEX,6MM,BLACK
312C0600
$3.57
411
WASHER-PLAIN,6MM
411E0600
$1.31
461
WASHER-SPRING
461L0600
$0.71
