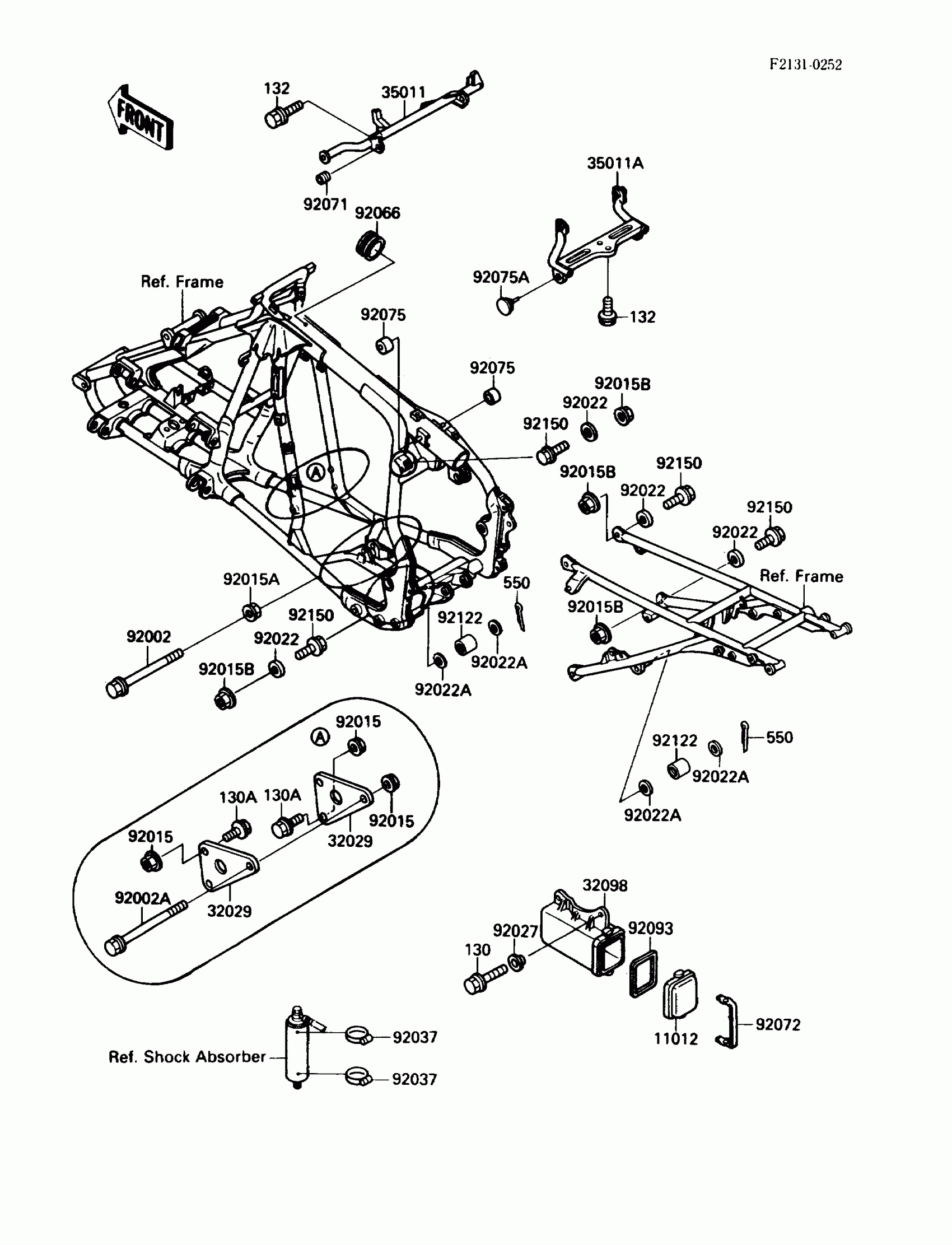

Kawasaki Tecate 4 Frame Fittings(KXF250-A2) Diagram
#
Description
Price
11012
CAP,TOOL CASE
11012-1606
$11.27
32029
BRACKET-ENGINE,FR
32029-1526
$20.88
32098
CASE-TOOL
32098-1078
Unavailable
35011
STAY,FRONT FENDER&SIDE COVER
35011-1338
$44.59
35011A
STAY,SIDE COVER
35011-1339
Unavailable
92002
BOLT,FLANGED,8X90
92002-1416
Unavailable
92002A
BOLT,FLANGED,8X90
92002-1849
$7.93
92015
NUT,8MM
92015-1143
$0.65
92015A
NUT,FLANGED,10MM
92015-1335
$2.61
92015B
NUT,LOCK,8MM
92015-1506
Unavailable
92022
WASHER,8.5X20X1.6
92022-1561
$4.31
92022A
WASHER,13.5X23X2.3
92022-1863
Unavailable
92027
COLLAR
92027-1354
$5.00
92037
CLAMP
92037-509
$5.58
92066
PLUG,FRAME FITTING
92066-1310
$7.98
92071
GROMMET
92071-056
$4.26
92072
BAND,TOOL CASE CAP
92072-1226
$6.22
92075
DAMPER,FUEL TANK
92075-044
$5.11
92075A
DAMPER,REAR STAY
92075-1911
$7.68
92093
SEAL,TOOL CASE CAP
92093-1247
$5.29
92122
ROLLER,CHAIN GUIDE
92122-1144
Unavailable
92150
BOLT,FLANGED,8X20
92150-1017
Unavailable
130
BOLT-FLANGED,8X20
130G0820
$4.06
130A
BOLT-FLANGED,8X50
130G0850
$2.19
132
BOLT-FLANGED-SMALL,6X10
132G0610
$1.60
550
PIN COTTER 2.0X25
550D2025
$2.81
