Description

Price

11009

GASKET,GENERATOR COVER

11009-1653

Unavailable

11009A

GASKET,CLUTCH COVER

11009-1654

Unavailable

11009B

GASKET,PUMP COVER

11009-1655

Unavailable

12053

GUIDE-CHAIN

12053-1251

Unavailable

13070

GUIDE

13070-1122

$79.07

13107A

SHAFT,IMPELLER

13107-1224

Unavailable

13168

LEVER

13168-1342

Unavailable

13236A

LEVER-COMP,GOVERNOR

13236-1182

Unavailable

14026

COVER-CHAIN

14026-1119

Unavailable

14031

COVER-GENERATOR

14031-1204

Unavailable

14032

COVER-CLUTCH

14032-1232

Unavailable

16115

CAP-OIL FILLER

16115-018

$10.56

16142

COVER-PUMP

16142-1074

$44.59

39129

SPRING-GOVERNER

39129-1001

Unavailable

49006

BOOT

49006-1202

$10.96

49111

HOLDER-GOVERNOR WEIGHT

49111-1051

$67.40

49114

SHAFT-GOVERNOR

49114-1061

Unavailable

49114A

SHAFT-GOVERNOR

49114-1062

Unavailable

52005

GAUGE,OIL LEVEL

52005-1055

$14.76

59051

GEAR-SPUR,GOVERNOR

59051-1183

Unavailable

59256

IMPELLER

59256-1067

Unavailable

92002

BOLT,SOCKET,4X8

92002-1403

$3.32

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92022

WASHER,5.2X13X1

92022-1380

$4.31

92022A

WASHER,6.2X11X1

92022-304

$3.65

92026

SPACER,15X28X1

92026-1238

$8.47

92027

COLLAR

92027-1838

$29.26

92027A

COLLAR,15.2X17X4

92027-1839

$12.27

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043A

PIN,3X12.8

92043-1256

$4.50

92043B

PIN,2X9.8

92043-1293

$6.52

92043C

PIN,3X19.8

92043-1319

$4.11

92045

BEARING-BALL,#608

92045-1048

$12.37

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92046A

BEARING-NEEDLE,AXK1102

92046-1052

$14.47

92049

SEAL-OIL,SB18307

92049-013

$14.36

92049A

SEAL-OIL,A9567

92049-1081

$17.95

92049B

SEAL-OIL,SDO8144

92049-1207

$9.73

92049C

SEAL-OIL,TB12205.5

92049-1271

$9.28

92055

RING-O,5.5X1.5

92055-1343

$0.64

130

BOLT-FLANGED

130P0510

$1.76

132

BOLT-FLANGED-SMALL,6X8

132G0608

$2.33

132A

BOLT-FLANGED-SMALL

132G0625

Unavailable

132B

BOLT-FLANGED-SMALL,6X30

132G0630

$2.48

220

SCREW-PAN-CROS,3X6

220B0306

$0.63

482

CIRCLIP-TYPE-E,7MM

482J7000

$0.73

600

BALL-STEEL,5/16

600A1000

$0.73

610

ROLLER,4X8

610A0408

$4.31

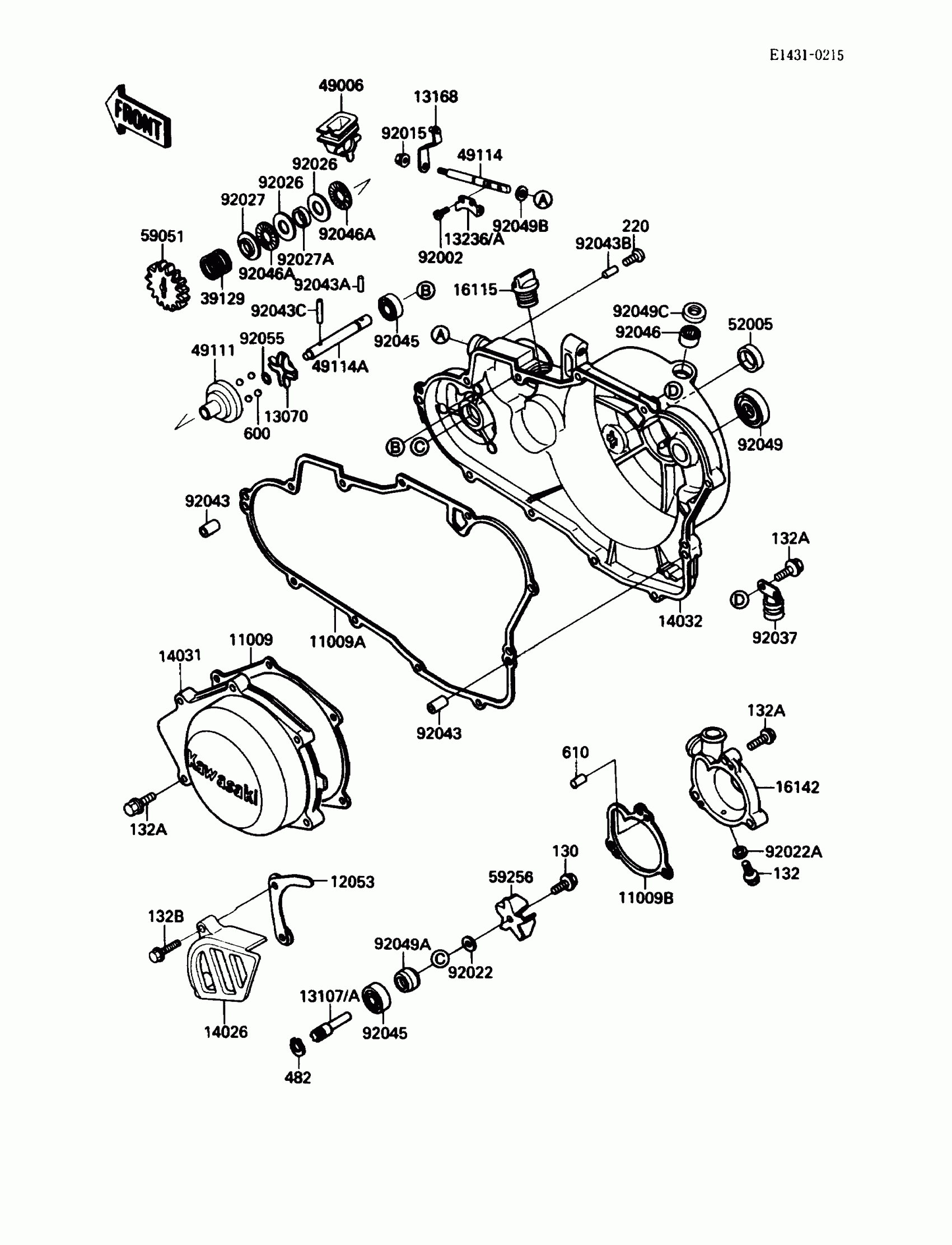

Kawasaki Tecate 4 Engine Cover(s) Diagram

GASKET,GENERATOR COVER

GASKET,CLUTCH COVER

GASKET,PUMP COVER

GUIDE-CHAIN

GUIDE

SHAFT,IMPELLER

LEVER

LEVER-COMP,GOVERNOR

COVER-CHAIN

COVER-GENERATOR

COVER-CLUTCH

CAP-OIL FILLER

COVER-PUMP

SPRING-GOVERNER

BOOT

HOLDER-GOVERNOR WEIGHT

SHAFT-GOVERNOR

SHAFT-GOVERNOR

GAUGE,OIL LEVEL

GEAR-SPUR,GOVERNOR

IMPELLER

BOLT,SOCKET,4X8

NUT,FLANGED,6MM

WASHER,5.2X13X1

WASHER,6.2X11X1

SPACER,15X28X1

COLLAR

COLLAR,15.2X17X4

PIN,DOWEL,6.3X8X14

PIN,3X12.8

PIN,2X9.8

PIN,3X19.8

BEARING-BALL,#608

BEARING-NEEDLE,HK1210

BEARING-NEEDLE,AXK1102

SEAL-OIL,SB18307

SEAL-OIL,A9567

SEAL-OIL,SDO8144

SEAL-OIL,TB12205.5

RING-O,5.5X1.5

BOLT-FLANGED

BOLT-FLANGED-SMALL,6X8

BOLT-FLANGED-SMALL

BOLT-FLANGED-SMALL,6X30

SCREW-PAN-CROS,3X6

CIRCLIP-TYPE-E,7MM

BALL-STEEL,5/16

ROLLER,4X8
