1988 Kawasaki Tecate 4 Cylinder Head/cylinder Diagram

← All diagrams

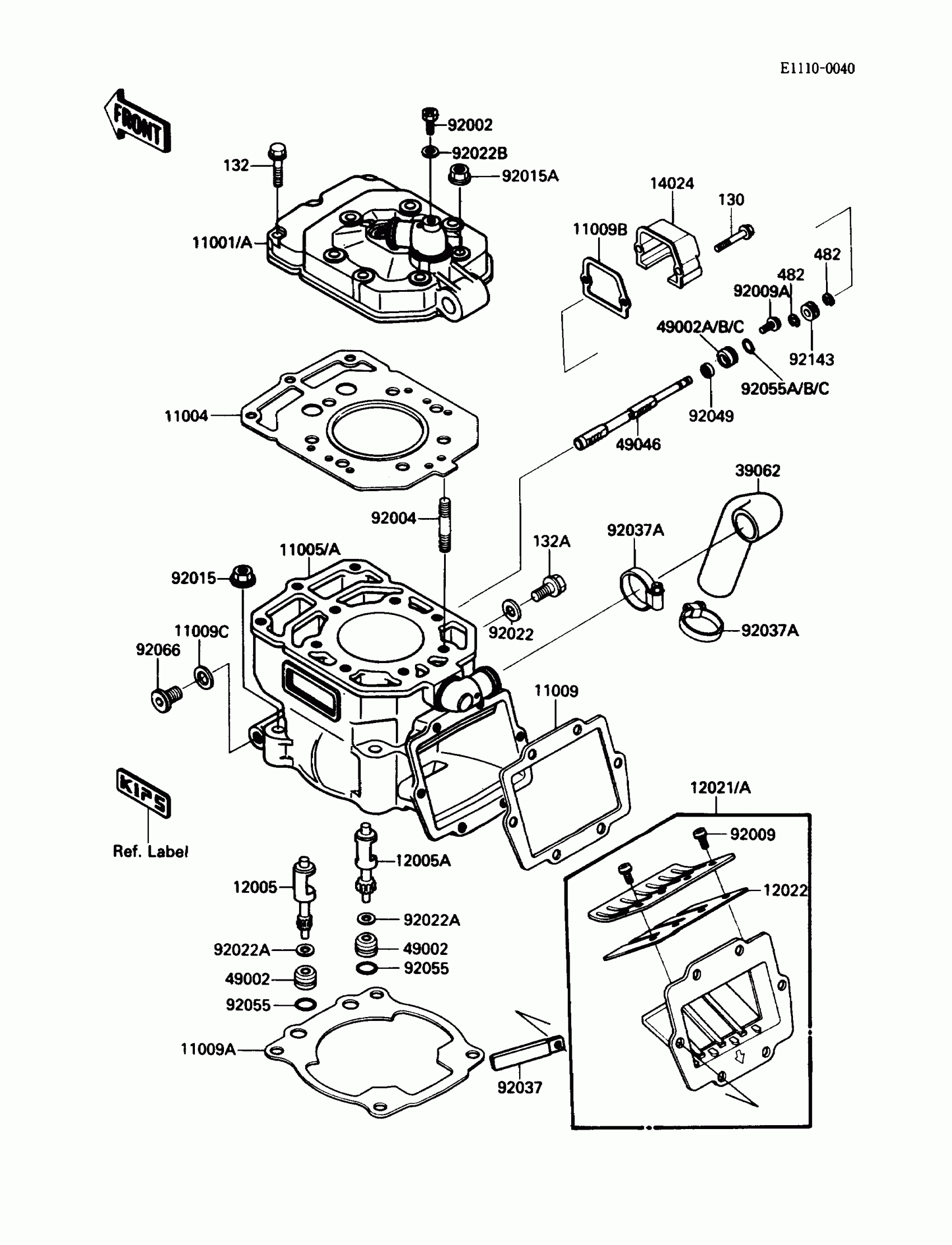

Find the part on the Cylinder Head/cylinder diagram for your 1988 Kawasaki Tecate 4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Tecate 4 Cylinder Head/cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11001A

HEAD-CYLINDER

11001-1282

1
Out of stock

11004

GASKET-HEAD

11004-1157

1
Out of stock

11005A

CYLINDER-ENGINE

11005-1558

1
Out of stock

11009

GASKET,REED VALVE

11009-1252

1
Out of stock

11009A

GASKET,CYLINDER BASE

11009-1624

1
Out of stock

11009B

GASKET,GOVERNOR COVER

11009-1625

1
Out of stock

11009C

1

$3.24

In stock

12005

VALVE-EXHAUST,LH

12005-1094

1
Out of stock

12005A

VALVE-EXHAUST,RH

12005-1095

1
Out of stock

12021A

VALVE-ASSY-REED

12021-1077

1
Out of stock

12022

VALVE-REED

12022-1060

1
Out of stock

14024

COVER,GOVERNOR

14024-1359

1
Out of stock

39062

HOSE-COOLING,PUMP-CYLINDER

39062-1233

1
Out of stock

49002

GUIDE-VALVE

49002-1073

1
Out of stock

49002B

GUIDE-VALVE

49002-1087

1
Out of stock

49046

ROD-GOVERNOR

49046-1060

1

$91.88

In stock

92002

BOLT,6X10

92002-1222

1

$6.44

In stock

92004

STUD,8X40

92004-1139

1
Out of stock

92009

SCREW,3X6

92009-1371

1
Out of stock

92009A

SCREW,5X10

92009-1502

1
Out of stock

92015

NUT,FLANGED,10MM

92015-077

1
Out of stock

92015A

NUT,8MM

92015-1143

1
Out of stock

92022

WASHER,8.2X14X1.0

92022-1488

1

$4.34

In stock

92022A

WASHER

92022-1869

1
Out of stock

92022B

WASHER,6.2X11X1

92022-304

1
Out of stock

92037A

CLAMP,COOLING HOSE

92037-1589

1

$14.60

In stock

92049

SEAL-OIL,RSO-5.5X11X4

92049-1206

1
Out of stock

92055

RING-O,17.5X1.5

92055-022

1

$4.93

In stock

92055B

RING-O,11.5X1.5

92055-1387

1

$3.12

In stock

92066

PLUG,12X10

92066-1222

1

$9.80

In stock

92143

COLLAR

92143-1056

1
Out of stock

130

BOLT-FLANGED

130G0535

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0625

1
Out of stock

132A

BOLT-FLANGED-SMALL

132G0810

1
Out of stock

482

1

$1.19

In stock
