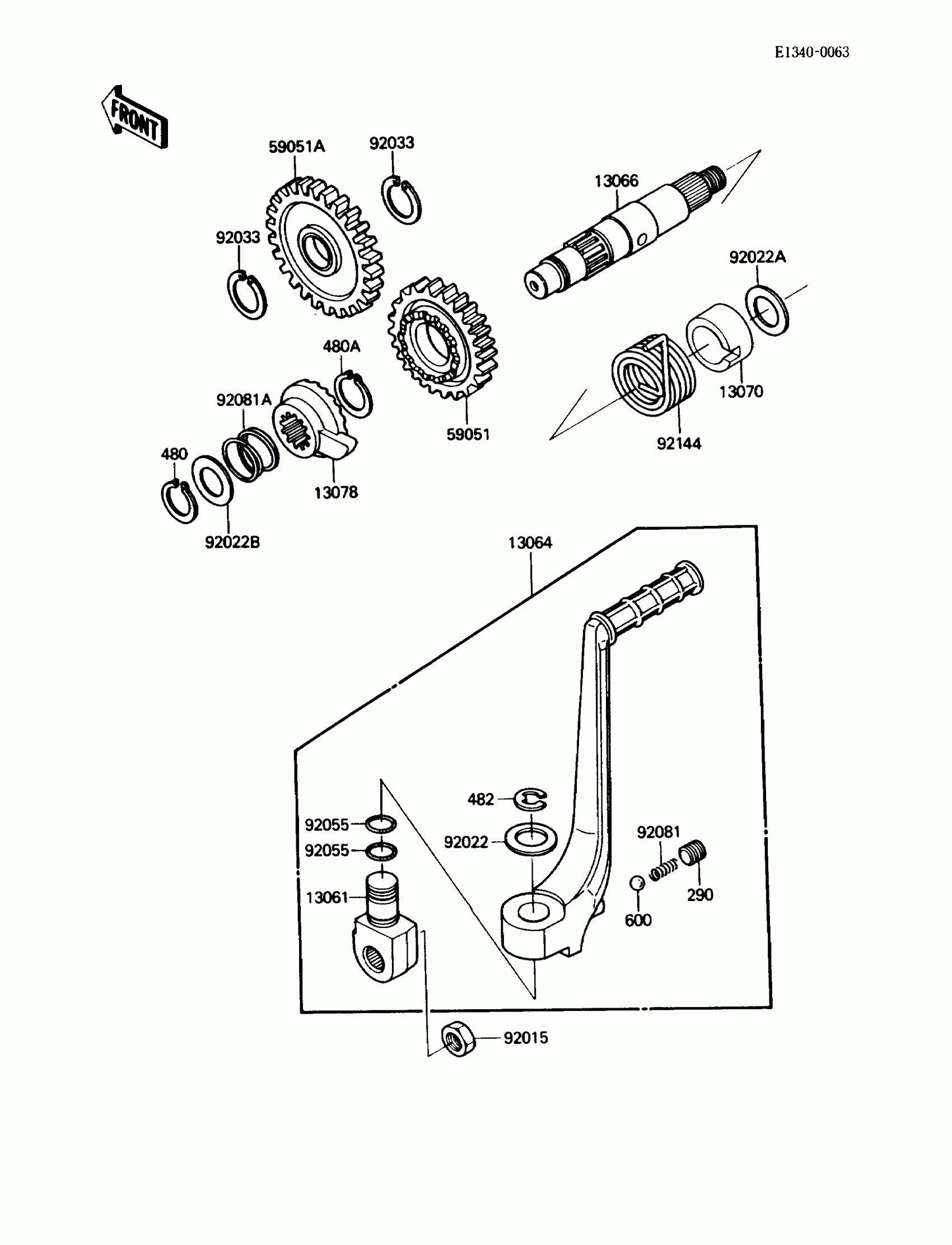

Kawasaki Tecate 4 Kickstarter Mechanism Diagram

Description

Price

13061

BOSS,KICK PEDAL

13061-1055

Unavailable

13064

LEVER-ASSY-KICK,PEDAL

13064-1132

Unavailable

13066

SHAFT-KICK

13066-1065

Unavailable

13070

GUIDE,KICK SPRING

13070-1063

$17.08

13078

RATCHET

13078-1007

Unavailable

59051

GEAR,KICKSTARTER,26T

59051-1177

Unavailable

59051A

GEAR,KICKSTARTER IDLE,26T

59051-1178

$129.50

92015

NUT,12MM

92015-1001

Unavailable

92022

WASHER,15.2X20X1

92022-1019

$4.61

92022A

WASHER,18.3X22X0.5

92022-271

$4.18

92022B

WASHER,16.8X22X0.5

92022-315

$4.67

92033

RING-SNAP,18MM

92033-029

$7.48

92055

"O" RING,11.5MM

92055-072

Unavailable

92081

SPRING,KICK PEDAL

92081-020

$3.25

92081A

SPRING,RATCHET

92081-122

$6.70

92144

SPRING,KICKSTARTER

92144-1076

$21.52

290

SCREW, 8X16

290Q0816

$4.08

480

CIRCLIP-TYPE-C,16MM

480J1600

$3.29

480A

CIRCLIP-TYPE-C,18MM

480J1800

$0.98

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.66

600

BALL-STEEL,1/4

600A0800

$0.59
