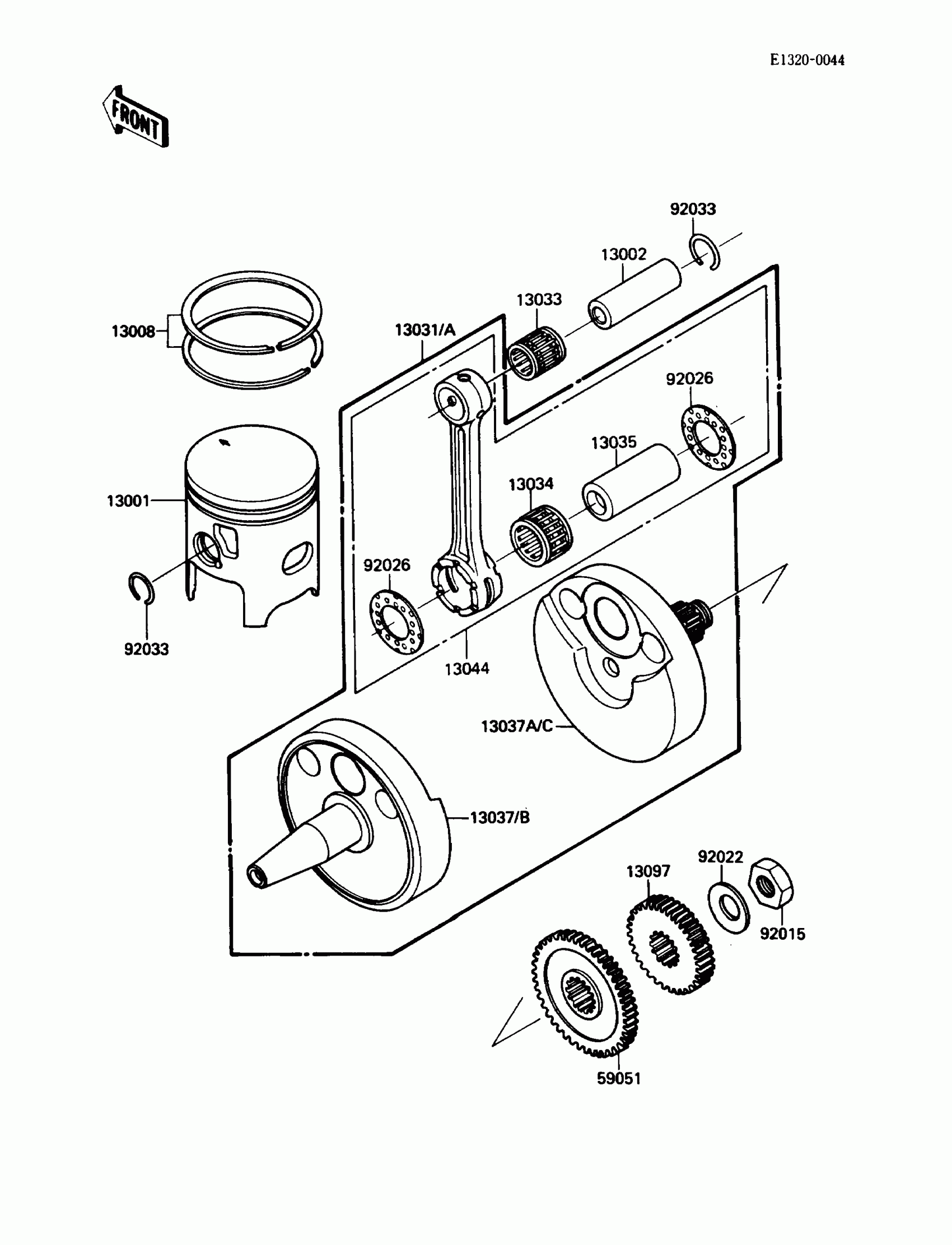

Kawasaki Tecate 4 Crankshaft/Piston(s) Diagram

Description

Price

13001

PISTON-ENGINE

13001-1246

Unavailable

13002

PIN-PISTON

13002-1068

Unavailable

13008

RING-SET-PISTON

13008-1091

$80.36

13031A

CRANKSHAFT-COMP

13031-1267

Unavailable

13033

BEARING-SMALL END

13033-1010

$25.15

13034

BEARING-BIG END,H24X

13034-1060

Unavailable

13035

PIN,CRANK

13035-034

$85.12

13037B

CRANKSHAFT,LH

13037-1335

Unavailable

13037C

CRANKSHAFT,RH

13037-1336

Unavailable

13044

SET-CONNECTING ROD

13044-5042

Unavailable

13097

GEAR-PRIMARY SPUR,22T

13097-1189

Unavailable

59051

GEAR-SPUR,36T

59051-1182

$100.37

92015

NUT,16MM

92015-1176

Unavailable

92022

WASHER,16.3X29X1.75

92022-1356

$7.34

92026

SPACER

92026-1241

$9.48

92033

CIRCLIP-PISTON PIN

92036-015

$4.95
