Description

Price

13081

CLUTCH-ASSY

13081-1249

Unavailable

13087

HUB-CLUTCH

13087-1085

Unavailable

13088

PLATE-FRICTION

13088-1069

Unavailable

13089

PLATE-CLUTCH

13089-1074

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-1160

Unavailable

13102A

RELEASE-COMP-CLUTCH

13102-1096

Unavailable

13187

PLATE-CLUTCH OPERATING

13187-1060

$84.61

46102

ROD,CLUTCH

46102-1146

$34.10

92002

BOLT,CLUTCH

92002-1949

$7.22

92015

NUT,20MM

92016-028

$9.91

92022

WASHER,10.2X18X1.0,SK5

92022-1415

Unavailable

92022A

WASHER

92022-1835

Unavailable

92022B

WASHER,22.3X38X2.0

92022-1836

Unavailable

92028

BUSHING,22X28X27.5

92028-1385

Unavailable

92046

BEARING-NEEDLE,28R3226

92046-1149

Unavailable

92081

SPRING,CLUTCH

92081-1151

Unavailable

601

BEARING-BALL,#6001C3

601B6001

$16.25

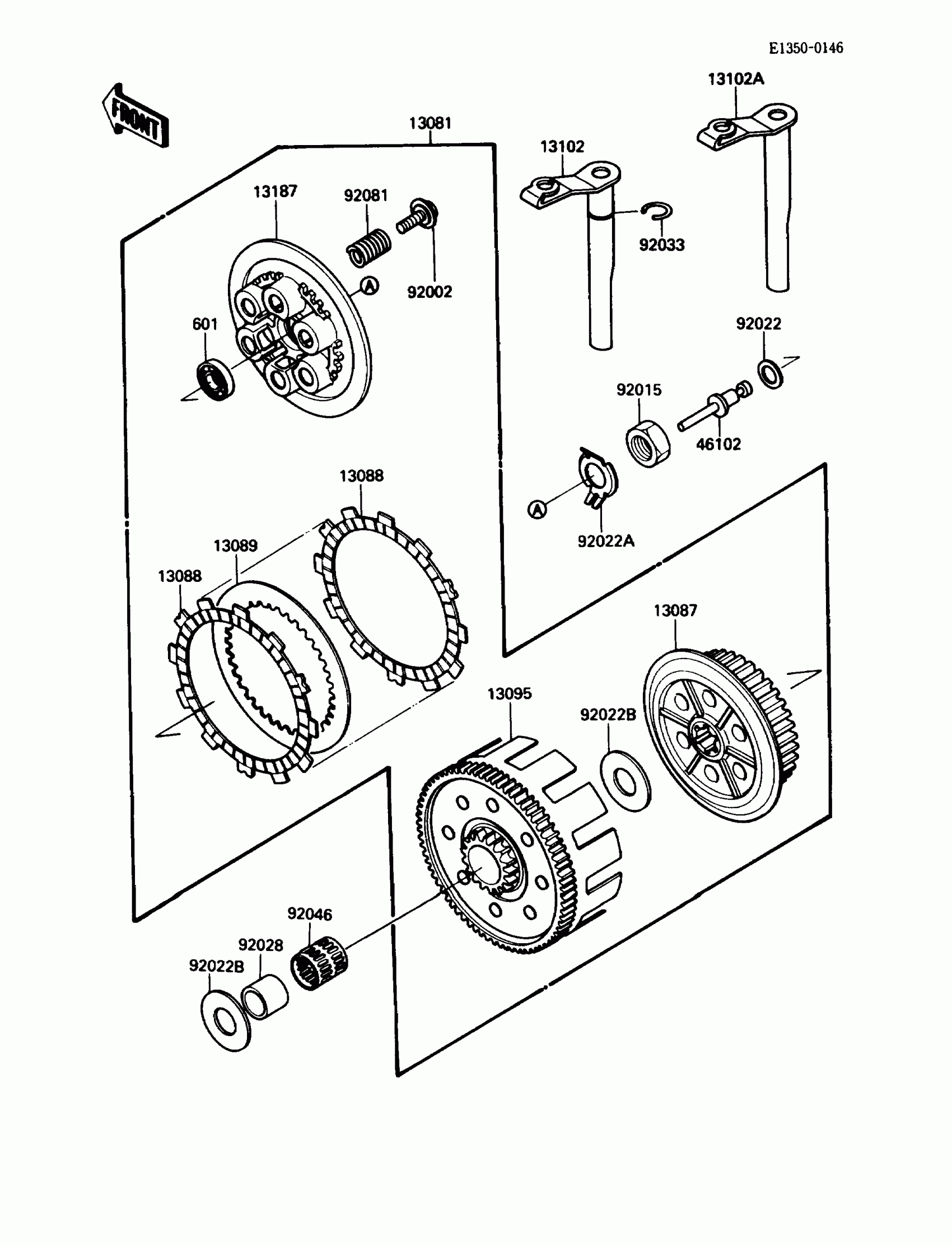

Kawasaki Tecate 4 Clutch Diagram

CLUTCH-ASSY

HUB-CLUTCH

PLATE-FRICTION

PLATE-CLUTCH

HOUSING-COMP-CLUTCH

RELEASE-COMP-CLUTCH

PLATE-CLUTCH OPERATING

ROD,CLUTCH

BOLT,CLUTCH

NUT,20MM

WASHER,10.2X18X1.0,SK5

WASHER

WASHER,22.3X38X2.0

BUSHING,22X28X27.5

BEARING-NEEDLE,28R3226

SPRING,CLUTCH

BEARING-BALL,#6001C3
