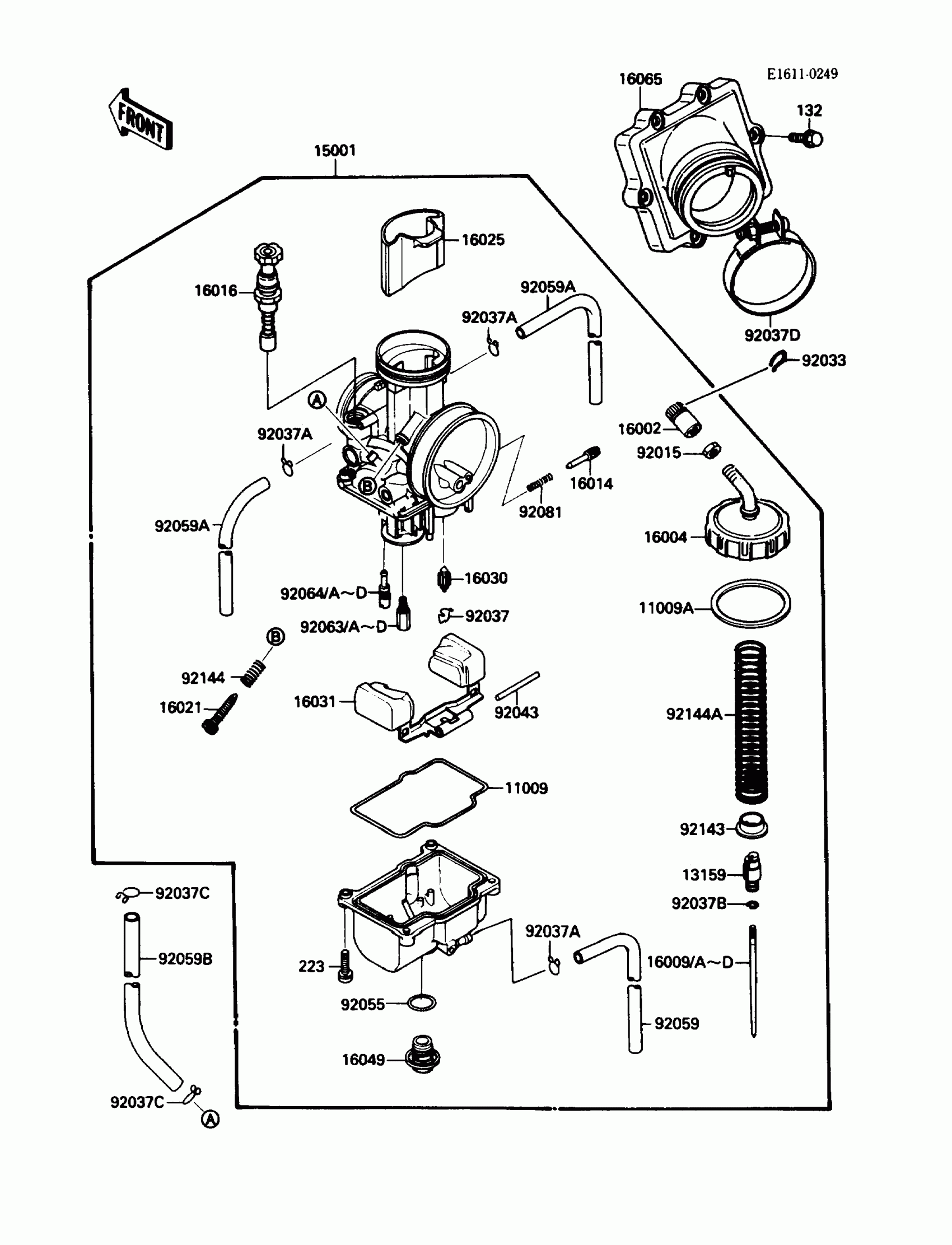

Kawasaki Tecate 4 Carburetor(KXF250-A2)(004205?) Diagram
#
11009
GASKET,FLOAT CHAMBER
11009-1716
$15.24
11009A
GASKET,CHAMBER CAP
11009-1717
$12.65
13159
CONNECTOR,THROTTLE CABLE
13159-1060
Unavailable
15001
CARBURETOR-ASSY
15001-1458
$660.55
16002
ADJUSTER-CABLE
16002-1057
$20.89
16004
CAP-CHAMBER
16004-1063
$72.13
16009
NEEDLE-JET,R1467J
16009-1424
$20.64
16009A
NEEDLE-JET,R1468J
16009-1425
$33.75
16009B
NEEDLE-JET,R1469J
16009-1426
$33.75
16009C
NEEDLE-JET,R1470J
16009-1427
$33.75
16009D
NEEDLE-JET,R1471J
16009-1428
$33.75
16014
SCREW-PILOT AIR
16014-1059
Unavailable
16016
PLUNGER,STARTER
16016-1075
$40.69
16021
SCREW-THROTTLE STOP
16021-1124
Unavailable
16025
VALVE-THROTTLE,CA6
16025-1148
$157.36
16030
VALVE-FLOAT
16030-1057
$47.13
16031
FLOAT
16031-1067
$59.98
16049
COVER-MAIN JET
16049-1051
$33.28
16065
HOLDER-CARBURETOR
16065-1170
Unavailable
92015
NUT,CABLE ADJUST LOCK
92015-1574
$6.57
92033
RING-SNAP
92036-018
$3.89
92037
CLAMP,FLOAT VALVE
16044-007
$7.91
92037A
CLAMP,TUBE
92037-1396
$5.52
92037B
CLAMP,JET NEEDLE
92037-1401
$4.31
92037C
CLAMP,TUBE
92037-147
$7.34
92037D
CLAMP,55MM
92037-1486
$8.66
92043
PIN,FLOAT
92043-1207
$11.14
92055
RING-O,MAIN JET COVER
92055-1167
$9.51
92059
TUBE,3.5X6.5X330
92059-1897
$10.79
92059A
TUBE,4X7X270
92059-1950
$5.61
92059B
TUBE,2.5X5.8X270
92059-3731
$9.11
92063
JET-MAIN,#135
92063-1338
$14.44
92063A
JET-MAIN,#138
92063-1359
$15.66
92063B
JET-MAIN,#140
92063-1360
$15.20
92063C
JET-MAIN,#142
92063-1361
$14.10
92063D
JET-MAIN,#145
92063-1362
$14.10
92064
JET-PILOT,#52
92064-1130
$19.05
92064A
JET-PILOT,#45
92064-1142
$17.03
92064B
JET-PILOT,#48
92064-1143
$17.03
92064C
JET-PILOT,#50
92064-1144
$17.85
92064D
JET-PILOT,#55
92064-1145
$19.05
92081
SPRING,ADJUST SCREW
92081-1555
$5.46
92143
COLLAR,THROTTLE VALVE
92143-1201
$24.84
92144
SPRING,THROTTLE STOP SCREW
92144-1257
$6.89
92144A
SPRING,THROTTLE VALVE
92144-1284
$19.48
132
BOLT-FLANGED-SMALL
132G0620
$2.33
223
SCREW-PAN-WS-CROS,4X16
223C0416
$4.12
